BASE FRAME ASSEMBLY

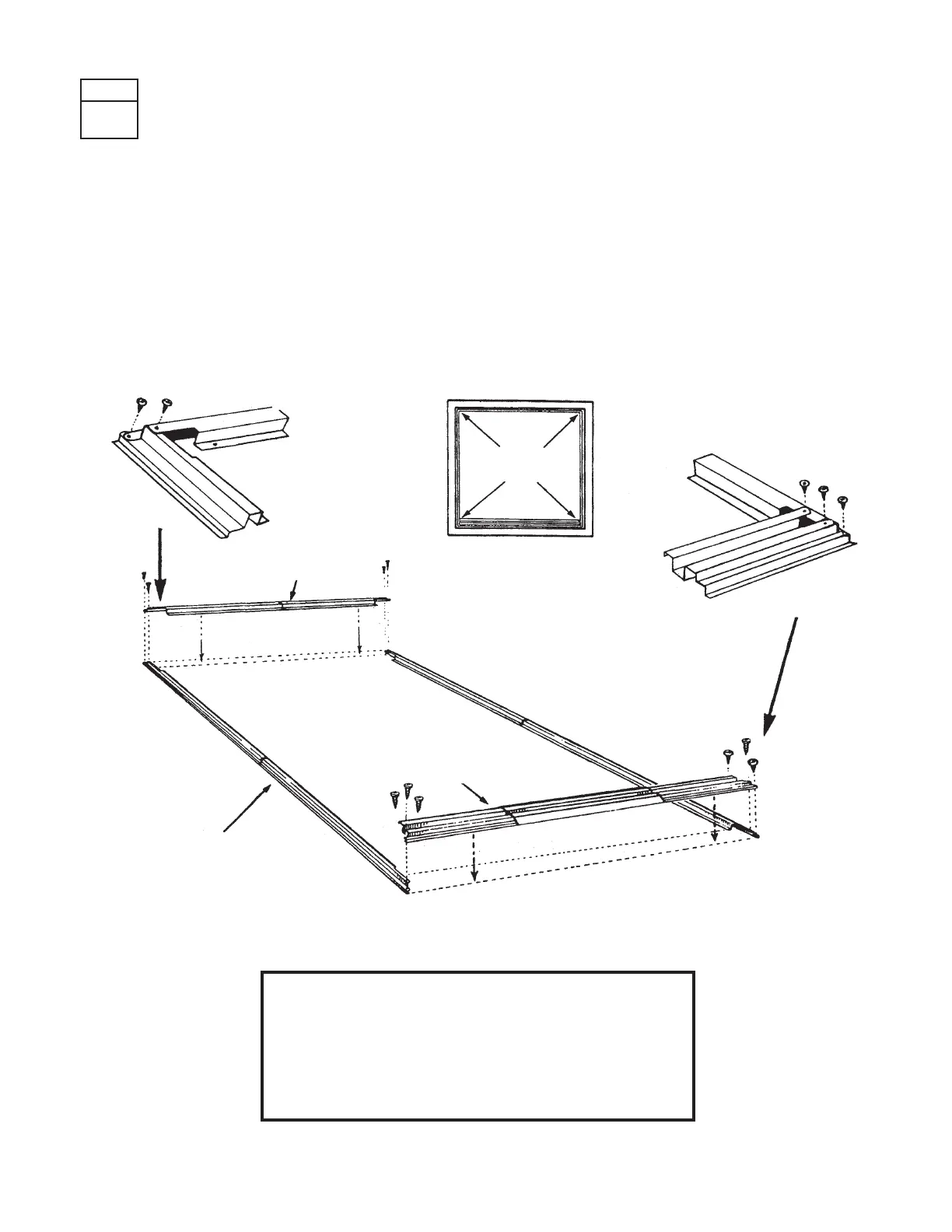

Assemble all 4 base rails into a base frame in proper position
on your foundation. Use 10mm (3/8") self tapping screws on
front and on back corners.
Check base frame for squareness by measuring diagonal
corners. Your measurements should be equal. See "A"
STEP
33
33
3
7
E07
BACK CORNER
REAR BASE RAIL
DOORWAY
SOLID
FOUNDATION
"A"
FRONT CORNER
FRONT BASE RAIL AND
ENTRY RAMP
SIDE BASE RAIL
DOORWAY
* AFTER ASSEMBLY CHECK BASE DIMENSIONS (SEE PAGE 3) TO VERIFY CORRECT POSITION OF RAILS.
USE SELF TAPPING SCREWS...10mm (3/8") LONG
* AFTER ASSEMBLY CHECK BASE DIMENSIONS (SEE PAGE 3) TO VERIFY CORRECT POSITION OF RAILS.
WARNING!
DO NOT ERECT ON A WINDY DAY. THE LARGE WALL
AND ROOF PANELS PROVIDE A LARGE SURFACE AND
THE WIND COULD EASILY CARRY THEM AWAY. ANY
BUILDING LEFT PARTLY CONSTRUCTED MAY BE SE-
RIOUSLY DAMAGED IF LEFT IN THIS STATE.
