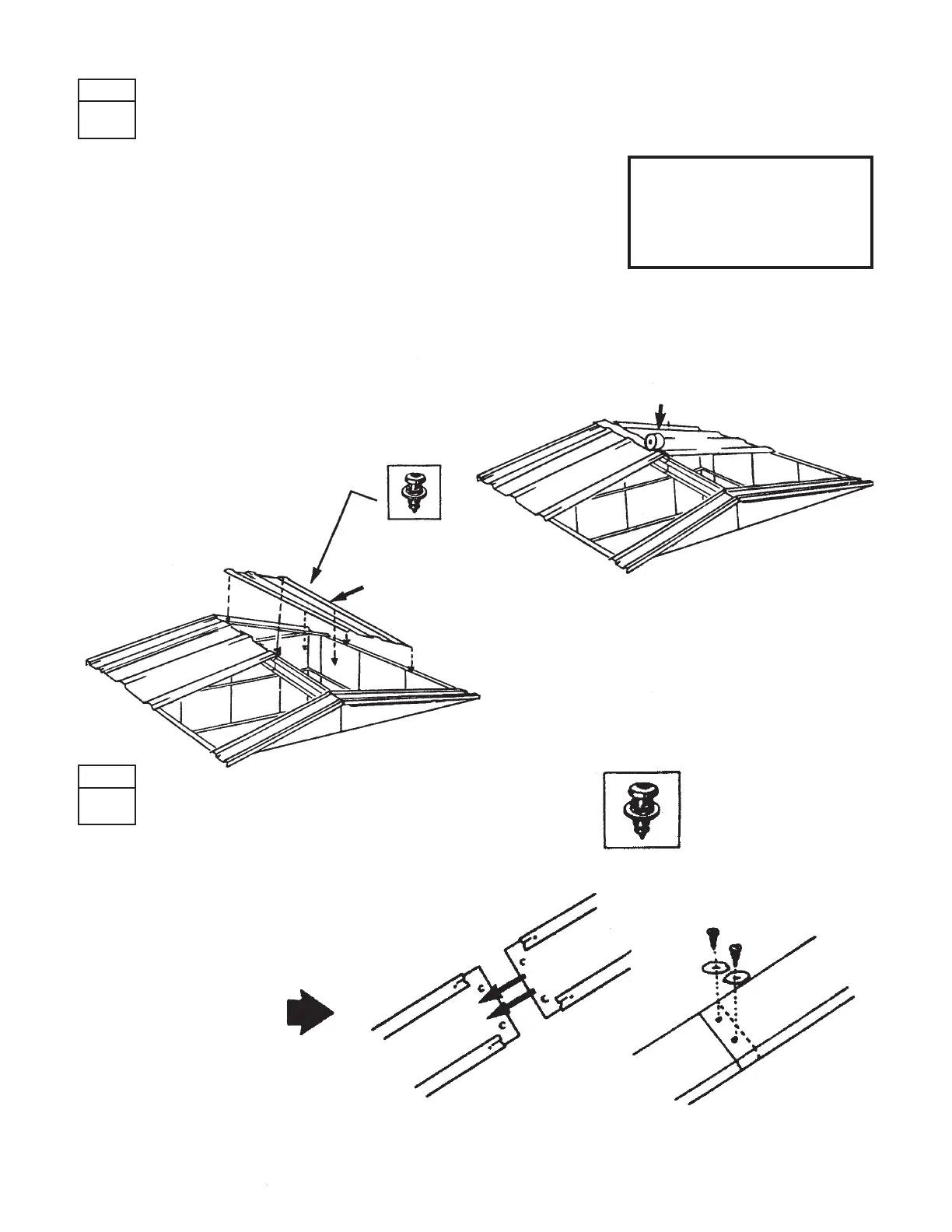

ROOF PANELS AND TAPE

Install roof panels by overlapping the adjacent panel. Fasten

to ridge beam and top rails with screws and washers.

NOTE - Size 6x4 and 6x6 uses a small half roof panel on

each side at the center.

Start panels at one end and do both sides. Carefully apply

tape (as you progress) between the top of the roof panels on

each side of the roof. See "A" This is a weatherseal and

must be applied with care with no air gaps.

NOTE - Be sure surface is clean, dry and dust free and apply

only when temperature is above 13°C (55°F). Be sure all

edges on all sides are sealed tightly to surface.

STEP

1616

RIDGE COVER ASSEMBLY

Assemble lengths of ridge cover together by inserting

one end inside the other. Fasten with screws and

washers and handle carefully! NOTE - for sizes 6x4,

6x5 and 6x6 these parts are in one full length piece.

TAPE

HALF ON EACH SIDE

PRESS TAPE DOWN FIRMLY AND DO NOT

CUT TAPE UNTIL ROOF IS COMPLETE

"A"

ROOF PANELS

ASSEMBLY SCREW

WITH WASHER

USE SELF TAPPING SCREWS...10mm (3/8") LONG WITH WASHERS

TURN UPSIDE DOWN TO AS-

SEMBLE THEN HANDLE CARE-

FULLY AFTER

ASSEMBLY
