SPACEMAKER EL64 - Spliced Assembly of Door Track and Door Fascia; Door Track Installation

STEP
66
66
6
9
L09

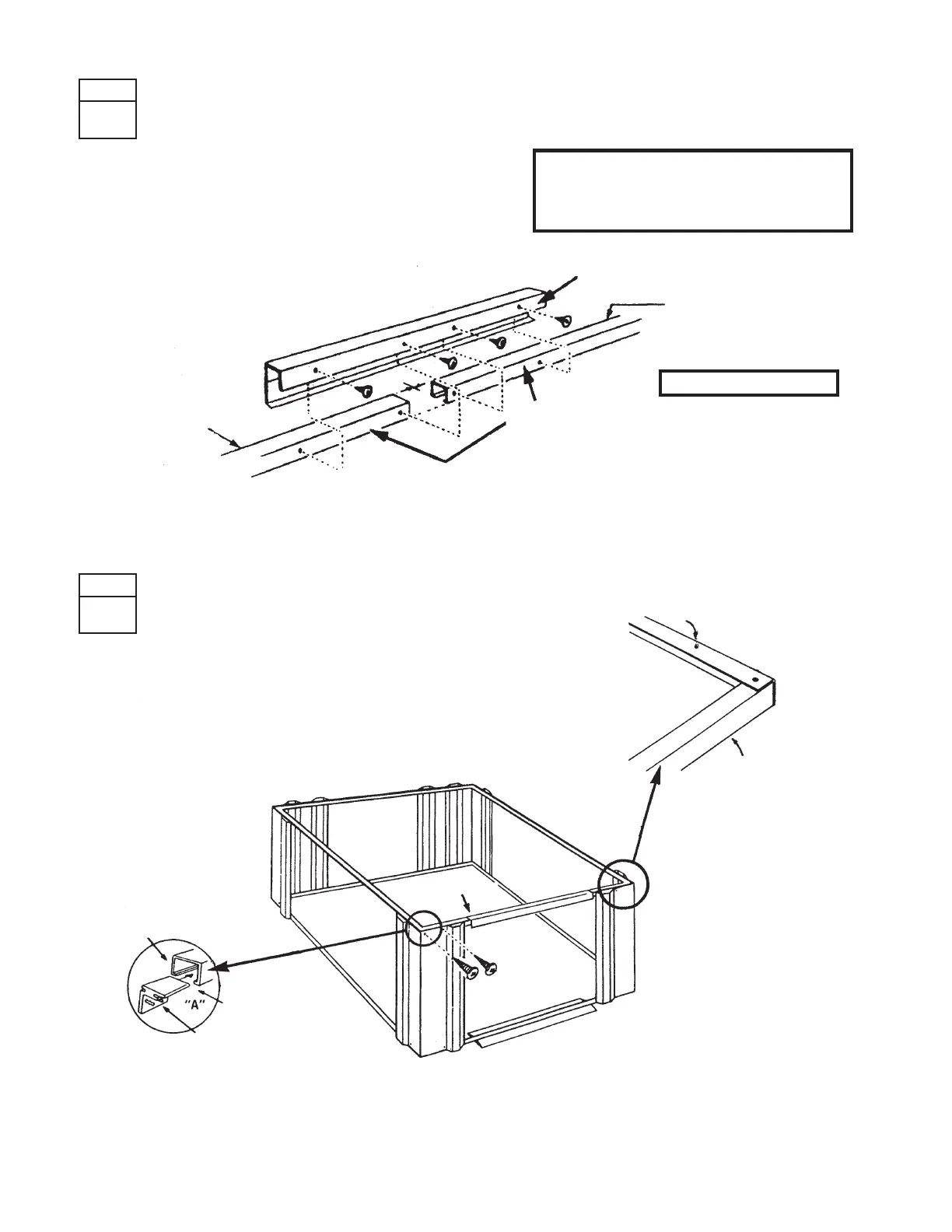

DOOR TRACK INSTALLATION
Install 4 door glides No. A67 into door track. See "A"
Fasten door track to the front corner panels with screws.
IMPORTANT: PLACE EDGE OF DOOR TRACK WITH
THE MOST HOLES FACING THE OUTSIDE.
STEP
77
77
7
USE SELF TAPPING SCREWS...10mm (3/8") LONG
SPLICED ASSEMBLY OF DOOR
TRACK AND DOOR FASCIA
Assemble lengths of door track No. 66H
(2 pcs.) together with door fascia No. 635H.
See Pages 4 and 5 for profile,
correct part number and quantity
required for your building.
FRONT
SIDE
Door Track
"A"
DOOR GLIDE
No. A67
DOOR FASCIA No. 635H
MOST HOLES ON THIS SIDE
MOST HOLES ON THIS SIDE
DOOR TRACK
No. 66H
VIEWED FROM INSIDE
DOORWAY
SLIDE DOOR GLIDES
INTO DOOR TRACK
INSIDE
OUTSIDE
USE SELF TAPPING SCREWS...10mm (3/8") LONG
1.
2.
1.
