SPACEMAKER EL64 - Corner Panels; Side and Rear Top Rails

STEP
44
44
4
8
L08

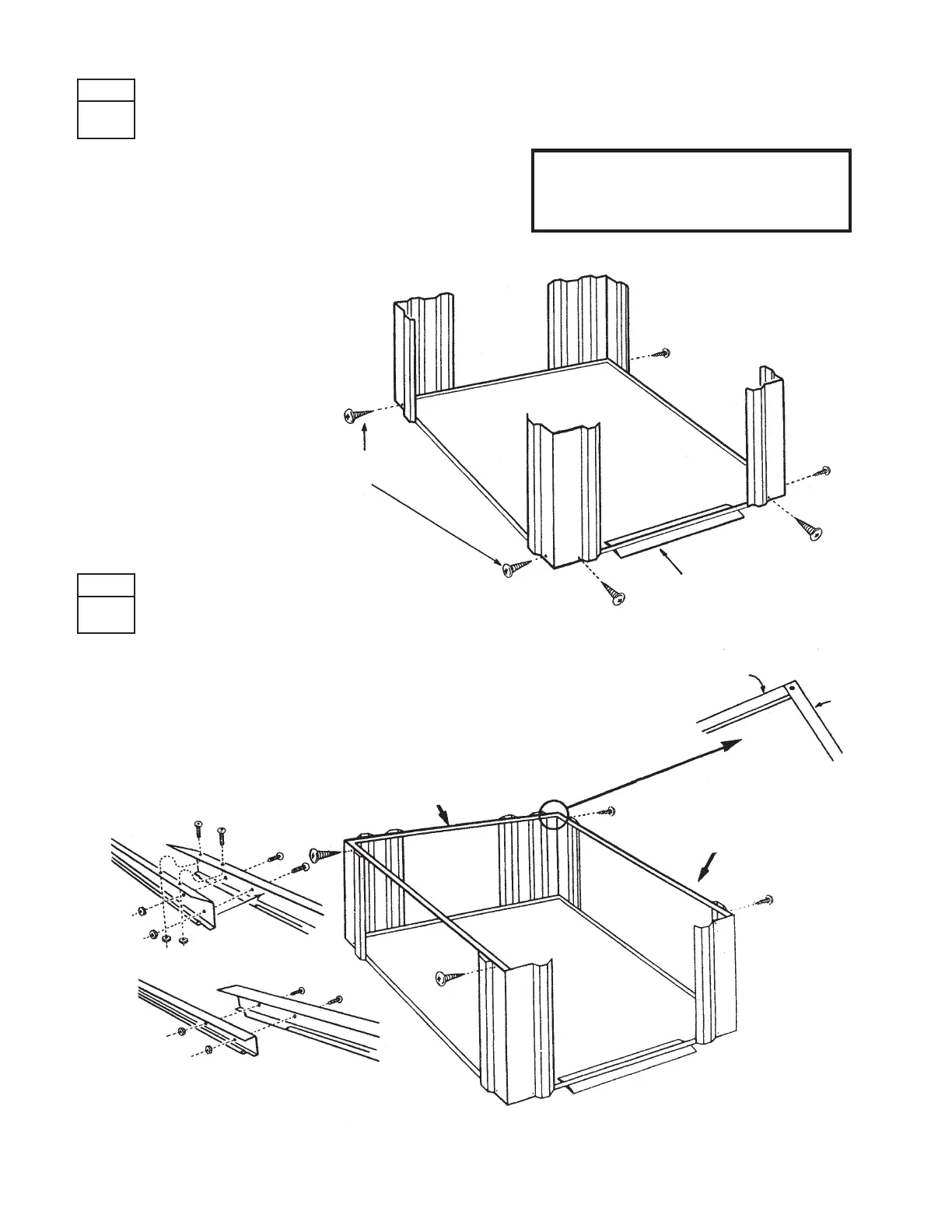

SIDE AND REAR TOP RAILS
Assemble lengths of side top rails (2 pcs.) together with a lap joint...see
"A". Fasten to top of corner panels. Repeat for other side. NOTE - for
sizes 6x4, 6x5 and 6x6 these parts are in one full length piece.
Repeat above procedure to assemble and fasten lengths of rear top rail
No. 640H (2 pcs.)...See "B".
STEP
55
55
5
USE SELF TAPPING SCREWS
...10mm (3/8") LONG
CORNER PANELS
Position rear corner panels and fasten to rear
and side base rails...with narrow flange of
panel along the side of the building.
Position front half corner panels and fasten to
front and side base rails...with narrow flange
of panel along the side of building.
See Pages 4 and 5 for profile,
correct part number and quantity
required for your building.
DOORWAY
REAR
SIDE
SIDE TOP RAIL
REAR TOP RAIL
No. 640H
SIDE
"A"
REAR "B"
USE 10mm (3/8") LONG
BOLTS AND NUTS
1.
2.
1.
2.
