3.
19
5.

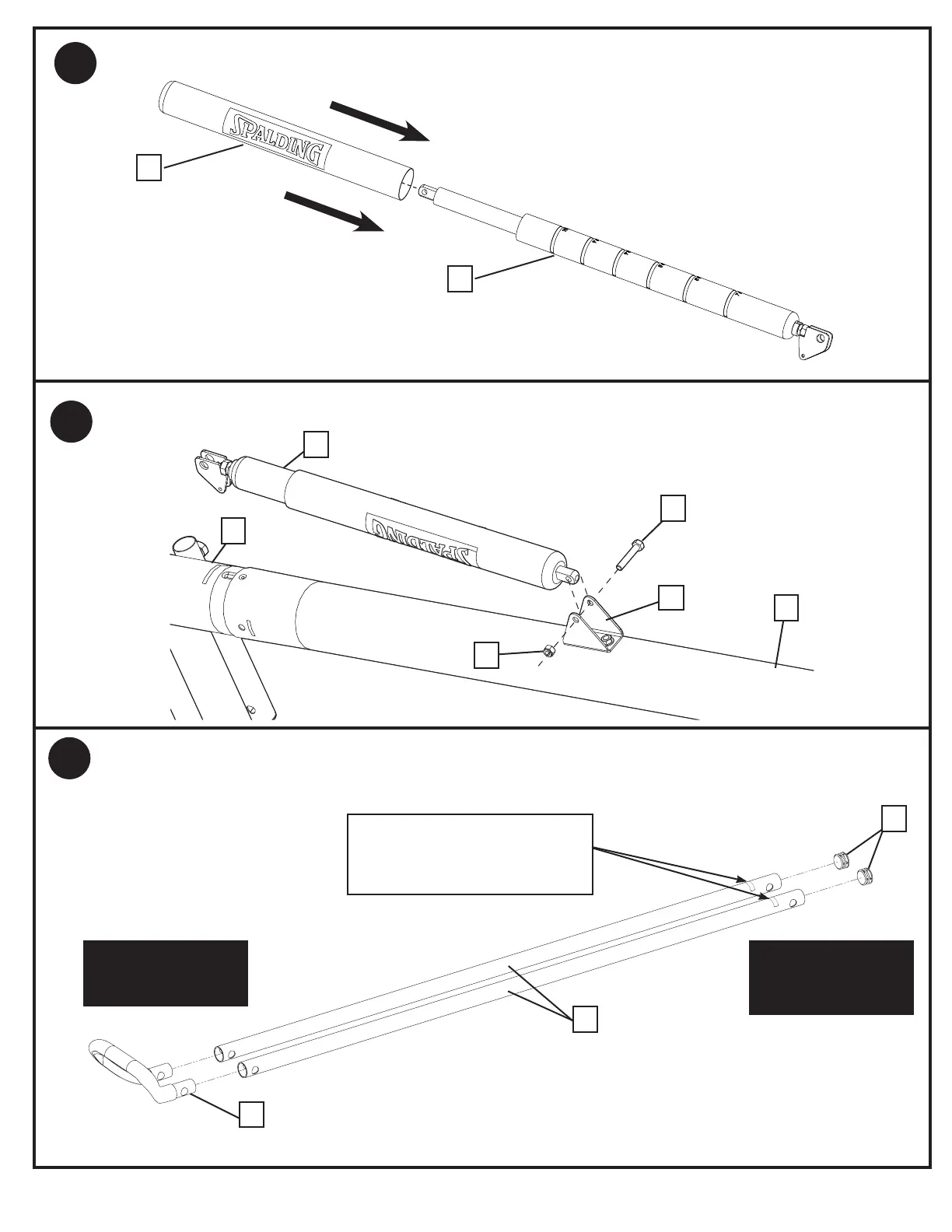

Attach the gas strut assembly (21) using the bolt (20) and nut (24) to the pole mount bracket (22) as shown.
20
21
1
24
2
22
4.
Slide the top cover (8) over the gas strut assembly (21) as shown below.
Identify and orient the vertical connecting tubes (36) according to the identification stickers and assemble to the
handle (35). Slide the bottom end of the tubes (36) over the handle (35) aligning the holes. Insert the caps (31)
into the top of the tubes (36).
“Bottom”
Connects to handle
“Top”
Connects to
elevator arms
Identification Sticker
Orient this end away from the
handle
35
36
8
21
31
To Next Page
