SPALDING 881042 - Rim, Spring, and Cover Installation

7.
37
41
32
28
33
28
B
C
D
27
39
A
28
41
37
E
28
1/8” (3mm)

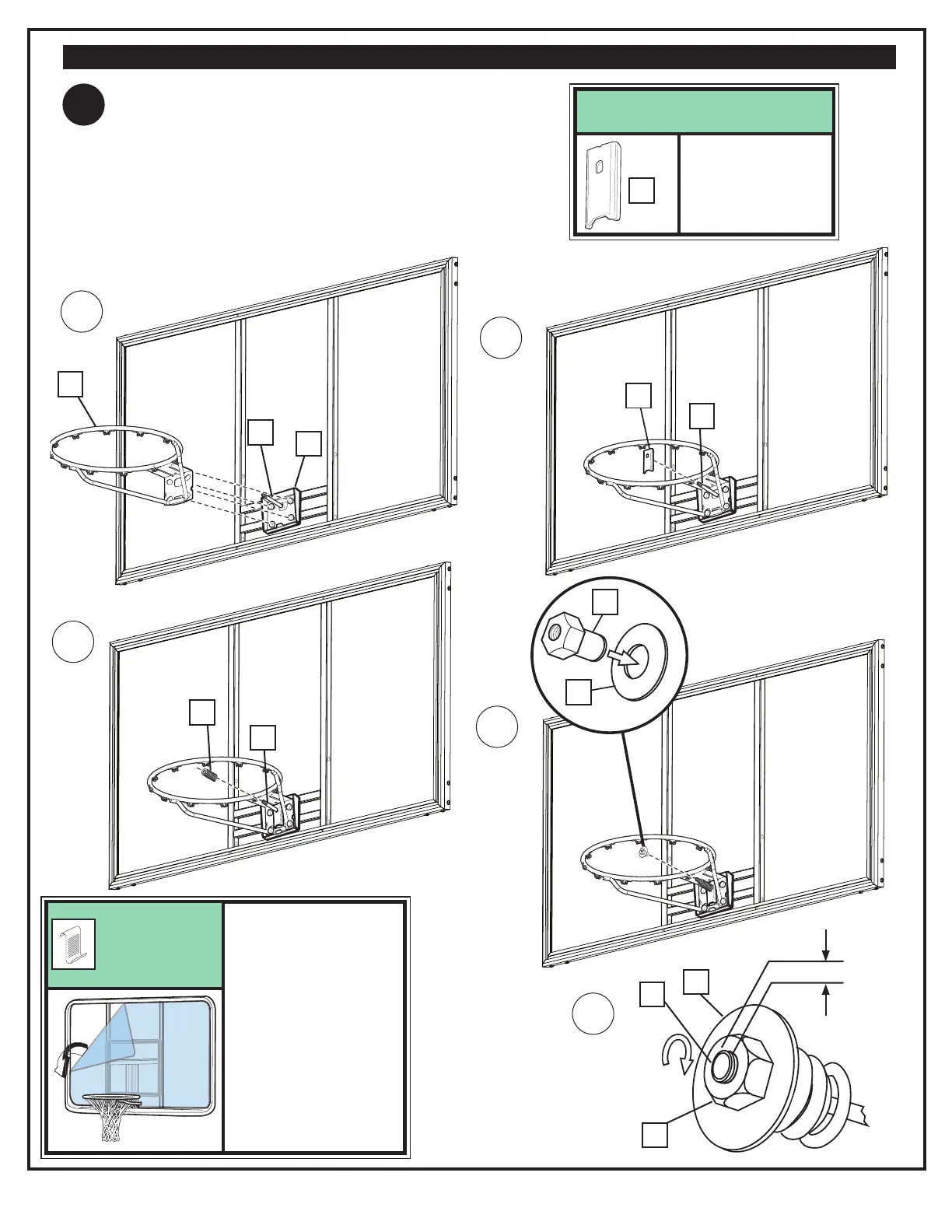

Install Pro Slam Rim to Backboard
A. Fit the rim (39) securely into the bracket (27) as shown. Allow
the t-bolt (28) to slip through the center hole in the rim (39).
B. Install the reinforcement bracket (32) onto the t-bolt (28) as
shown.
C. Install the spring (33) onto the t-bolt (28) as shown.
D. Install the special nut (37) and washer (41) onto the t-bolt
(28).
E. Tighten the nut (37) until 1/8” of the bolt threads on end of
the t-bolt (28) are exposed.
NOTE:
ORIENTATION
OF BRACKET
32
28
NOTE:
Peel protective film
from surface of acrylic
or polycarbonate
backboard prior to use.
