Assemble the Wheel Carriage
20
F

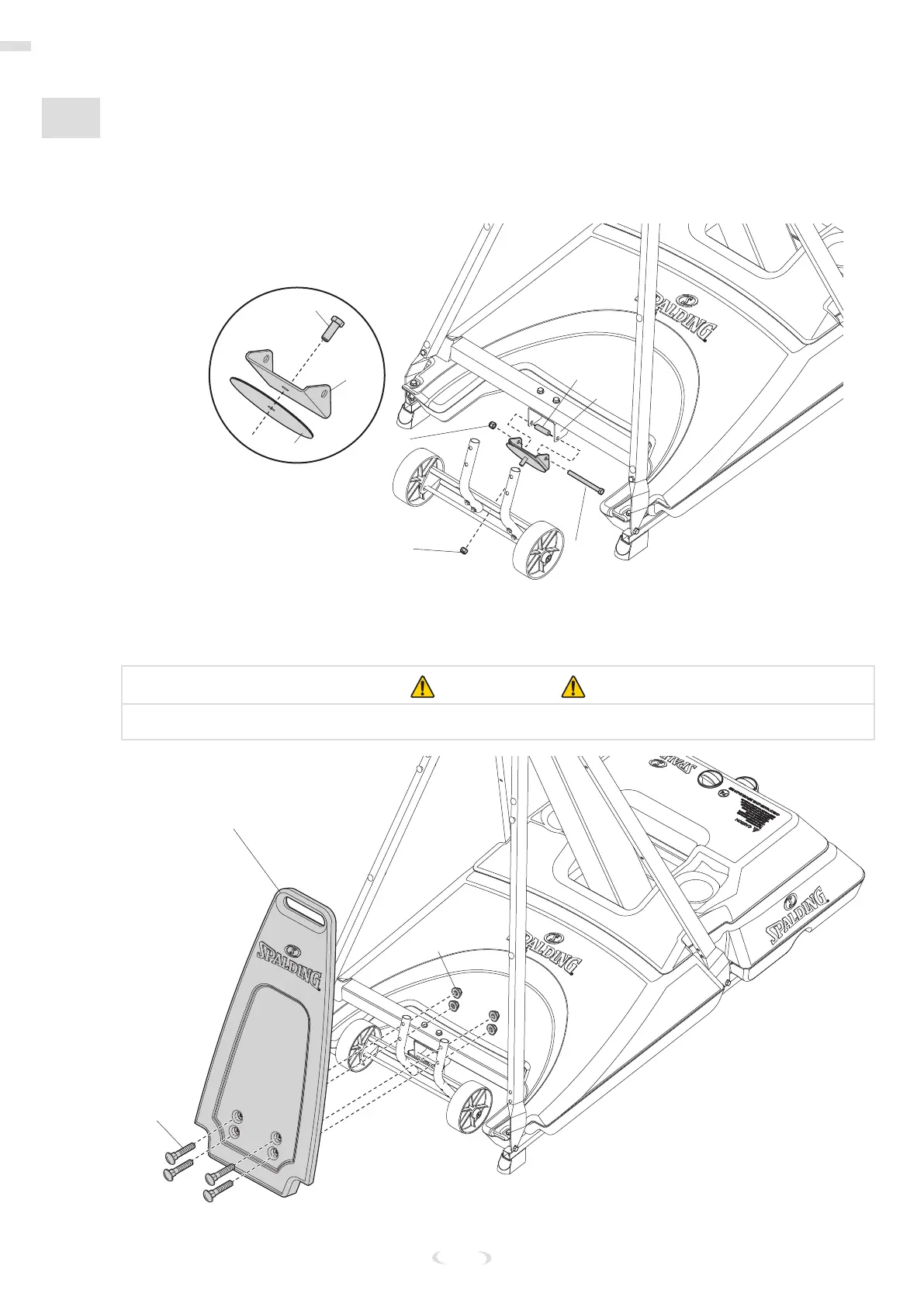

INSTALL THE WHEEL ASSEMBLY
1. Secure the lower pivot bracket (11) to the wheel assembly using the bolt (W7), pivot disk (12), and
nut (W6).
2. Secure the wheel assembly to the u-bracket (9) using the bolt (W5), spacer (W10), and nut (W6).
#W6
#W5
#W6
#W10
#9
#W7
#12
#11
3. Attach the transport handle (8) to the wheel assembly using the carriage bolts (W8) and nuts (W2).
IMPORTANT
Tighten all components completely.
