Assemble the Upper Elevator
24
H

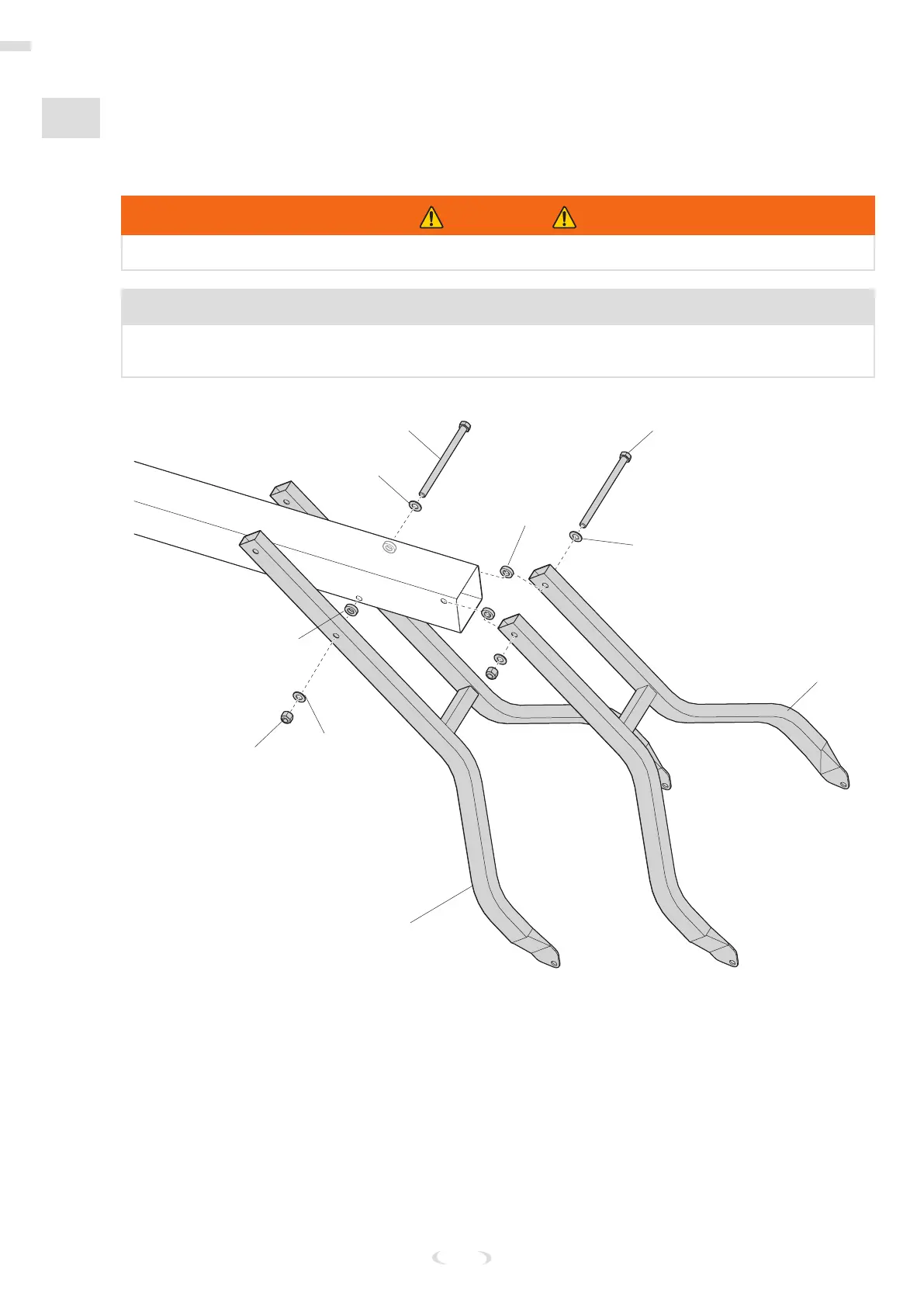

ATTACH THE ELEVATOR TUBE ASSEMBLY
2. While the system is securely resting on the sawhorse, install the elevator tubes (21 and 22) to the
top pole section (3) using the bolts (A5), washers (A3), bushings (A4), and nuts (A2).
WARNING
TIGHTEN THE BOLTS (A5) IN THE LOCK NUTS (A2) UNTIL FLUSH (EVEN) WITH THE LOCK NUT’S OUTER EDGE.
NOTE
TEST-FIT THE LARGE BOLTS INTO THE LARGE HOLES OF THE ELEVATOR TUBES AND BACKBOARD BRACKETS.
CAREFULLY ROCK THEM IN A CIRCULAR MOTION TO REAM OUT ANY EXCESS PAINT FROM HOLES, IF NECESSARY.
#A5
#A4
#A3
#A2
#A3
#A4
#21
#A5
#A3
#22
