SPAN Encore Series - Component Assembly Procedures

Span Medical Retractable Bed
MC9R / Series
14

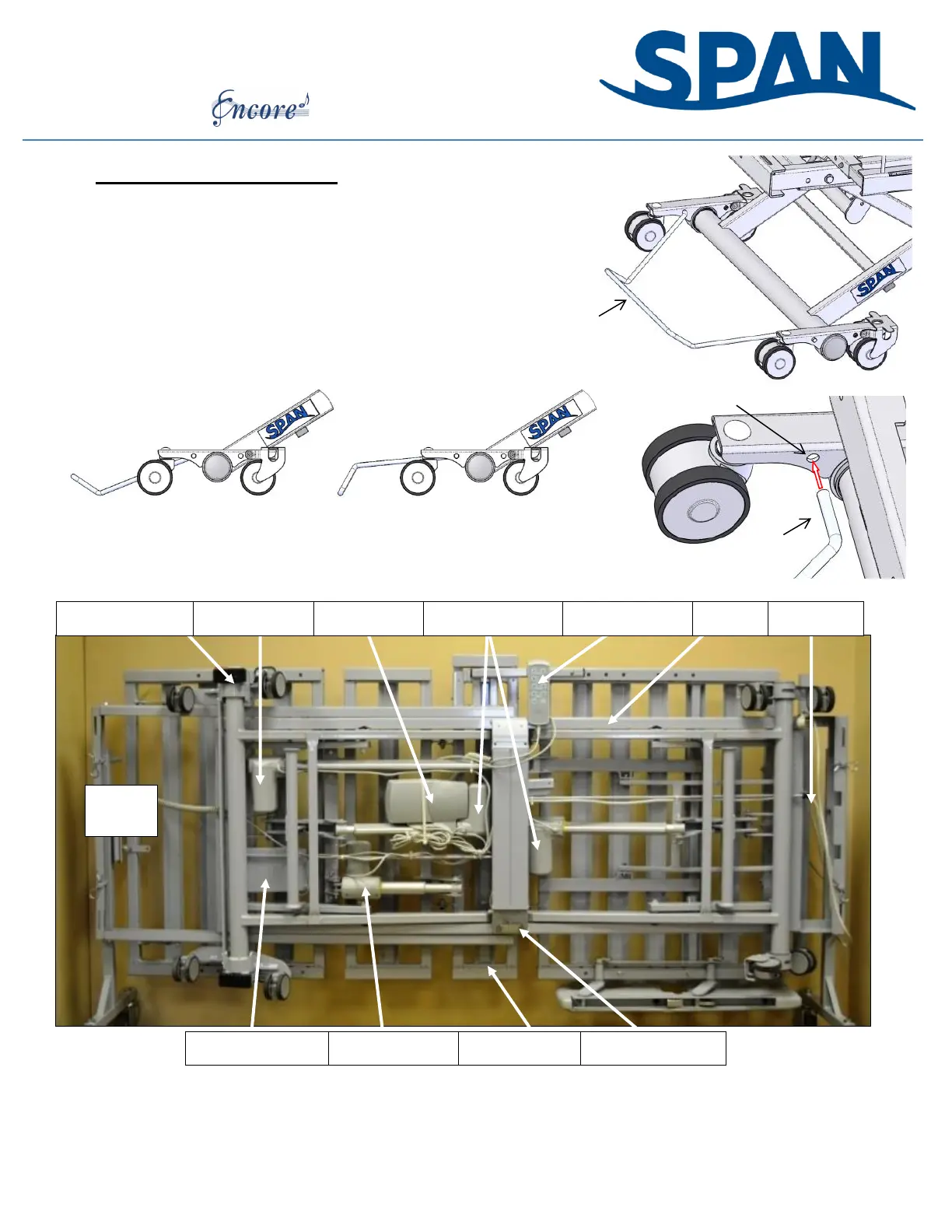

Assembly of Baseboard Bumper
Tools Required: None
Procedure: Assemble Baseboard Bumper (1) by inserting the wire
end into a caster bracket hole (2) as shown in Figs 5A to 5C.
Flexing the Baseboard Bumper wire, repeat on the opposite side.
Assembly Instructions
Fig 6
Hi-Low Actuator
AC Power
Total Floor Lock
Battery Backup*
Control Box
Deck System
Frame
Knee Actuator
Back Actuator
Under Bed Light
Hand Pendant
Foot
End
(1)
Fig 5A
Bed Components
*Optional
(1)
(2)
Fig 5B
Fig 5C
✓
✘
Correct Bumper Orientation
Incorrect Bumper Orientation
