Attaching your machine to the tractor – using
axle mounting
Please Note

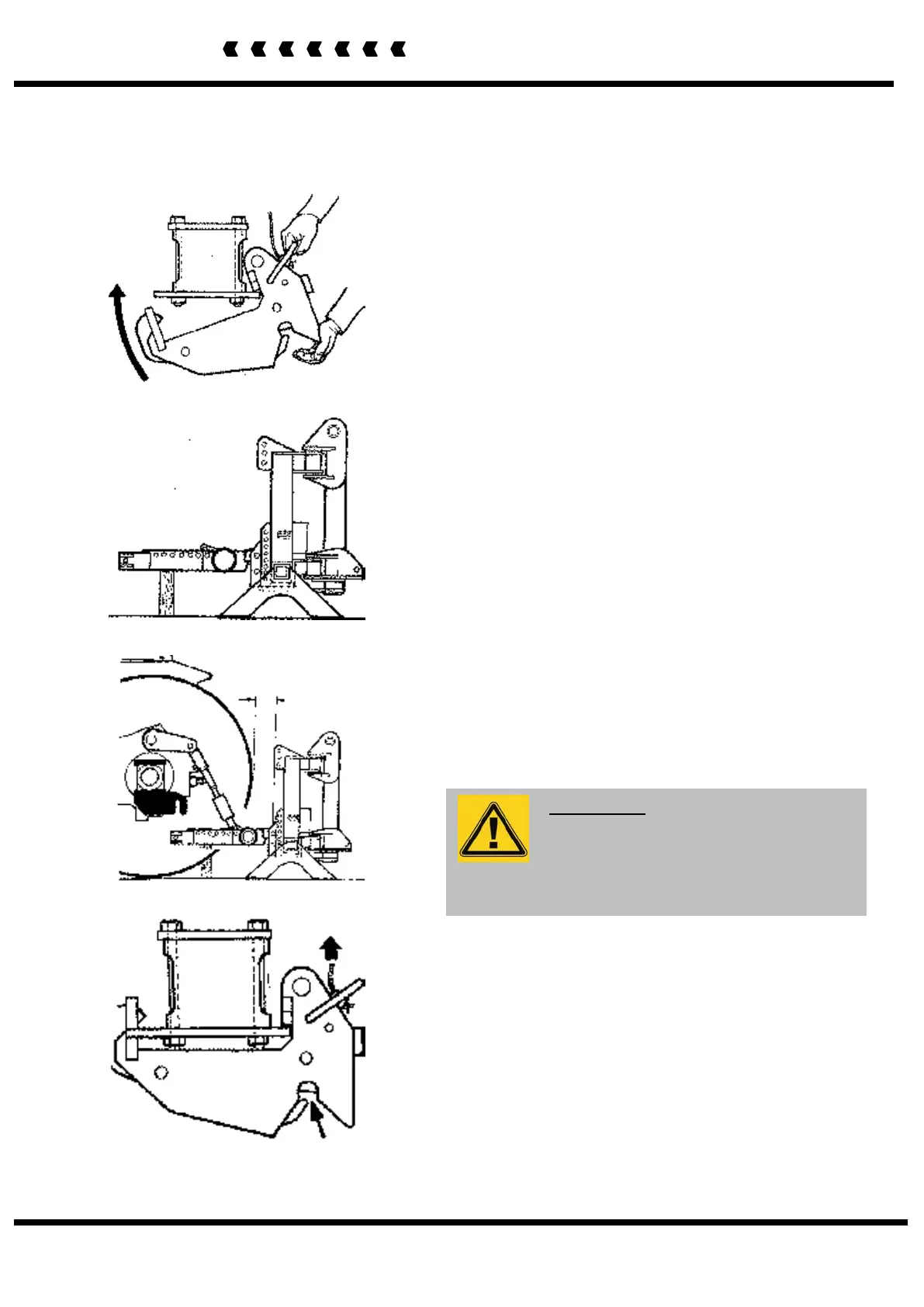

5. Offer up frame to tractor and adjust to give
required length. Distance “X” to be kept to the
minimum ensuring the machine is close
coupled, as a guide set same as original
Attach tractor lift links to frame with suitable
pins.
4. Assemble sub frame to suit axle width 1m
or 1.1m, mount sub frame assembly to your
machine using bottom pin holes.
3. Fit lift-in hitch assembly
The hole sizes may not match the
tractor links, this will not matter as
machine weight is carried on the stabiliser
frame when fully mounted.
Excel 606, 686, 726 & 836
