Attaching your machine to the tractor- using
axle mounting
Attaching your machine to the tractor – when
using 3 point linage

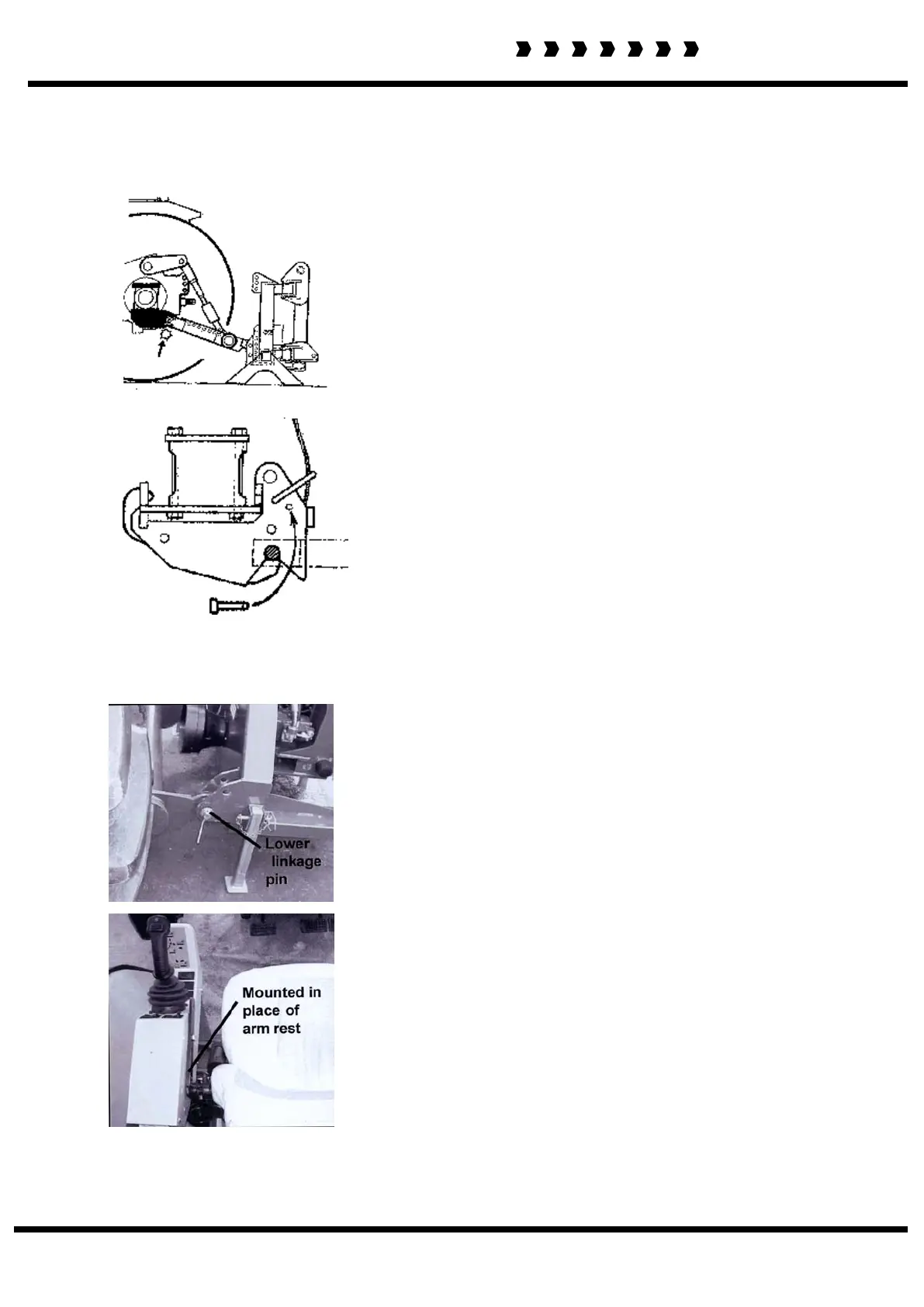

7. Ensure top link is fitted to prevent machine
from tipping over before raising Lift frame until it
engages in the catches Note: You may mount
sub frame to the tractor first and follow procedure
in step 9.
8. Insert catch-locking pin
9. Reverse tractor and attach lower link arms by
inserting lower linkage pins into the bottom set of
holes.
10. Spearhead strongly recommend mounting the
control unit to the seat in place of the armrest to the
head side of the tractor. Modification and additional
bracket may need to be fabricated Consult your local
dealer for advice.
An electric 12-volt supply cable will be needed from a
To power controls and a separate 12 volt supply
direct from the battery to the oil cooler.
Excel 606, 686, 726 & 836
