38
ENITESPTCNTCNSJP KR
INSTALL THE REAR WHEEL AXLE NUTS
B
A
12.5

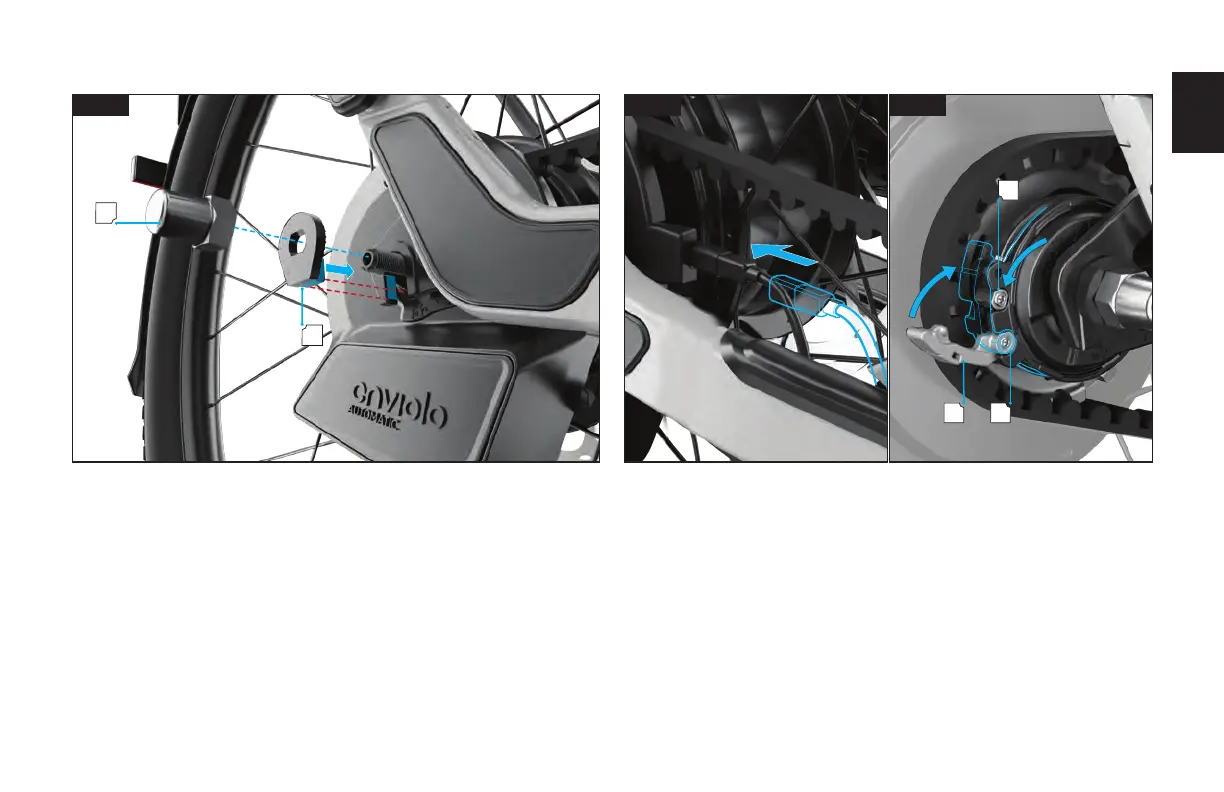

Fig. 12.5
Install a non-turn washer (A) on each side. The profiled side of the non-turn Washer must
be aligned towards the frame. The anti-twist device must be located in the dropout.
Install the axle nuts (B) and torque them with a 15 mm wrench to 30-40 Nm.
INSTALL THE ENVIOLO INTERFACE
C
B
A
12.6
12.7
Fig. 12.6 ENVIOLO AUTOMATIQ IGH
Plug the cable into the enviolo AUTOMATiQ hub interface.
Check the function on the remote and MasterMind TCD-w to make sure the hub is
connected.
Fig. 12.7 ENVIOLO MANUAL IGH
Re-insert the manual hub interface lever (A) and barrel (B) into their respective hooks.
Flip the lever into the closed position (C).
