12.2. DRIVETRAIN TENSIONING AND REAR WHEEL ALIGNMENT
Your bicycle is equipped with a Gates Carbon Drive™ belt. For more information on correct
installation, use, and maintenance of the belt, please refer to www.GatesCarbonDrive.com/
OwnersManual for details.
CAUTION: When handling the belt, do not crimp, twist, back-bend, invert, bundle,
or zip tie the belt. Do not use the belt as a strap wrench or chain whip. Do not roll
on or pry on the belt. Never use any belt that shows signs of damage.
The Como is designed with adjustable sliding dropouts which simultaneously allow for easy
tensioning of the belt/chain and alignment of the rear wheel.
To adjust the tension of the belt you will need to move the adjustable sliding dropout until the
correct tension is achieved. Mirror the adjustments to the adjustable sliding dropout on both
sides of the rear axle.
REMOVE THE DROPOUT COVERS
A
B
A
B
12.8 a
12.8 b

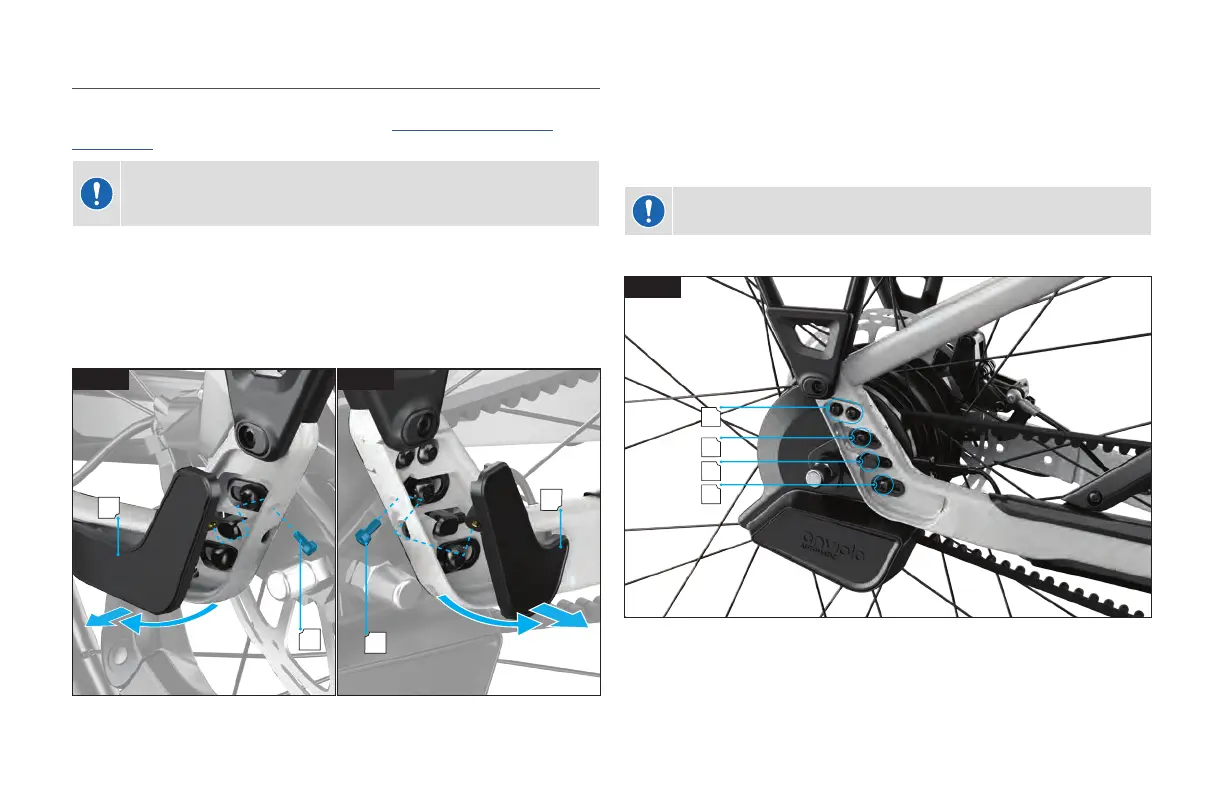

Fig 12.8 A & B
To access the adjustment bolts you will need to remove the covers located on the rear dropout.
Using a 2.5 mm hex key, remove both bolts from the rear of the left and right dropouts (A).
Use a flat head screwdriver to lift the covers, then rotate the covers forward towards the
front of the bike and remove them (B).
CAUTION: Do not force the cover open as this will damage the molded clips
on the covers.
SLIDING DROPOUT SPECS
A
B
A
C
12.9
Fig 12.9
A: Tensioning bolts, TX30
B: Adjustable slide bolt, 3 mm hex key
C: Seatstay coupler Bolt, TX 25
