5. REAR TRIANGLE PIVOT ASSEMBLY
In order to successfully build the Epic EVO rear triangle, it is very important to
follow the order of operations as outlined in this manual. Modifying the order
of assembly will result in a longer build process.
Grease all surfaces that contact inner bearing races before placing the spacers
against the bearings. This helps keep the spacers in place when assembling
each pivot. Always place the smaller (tapered) surface against the bearing,
and the wider surface against the frame or stay.
Install the bottom bracket after the rear triangle is assembled.
5.1. BEARING INSTALLATION

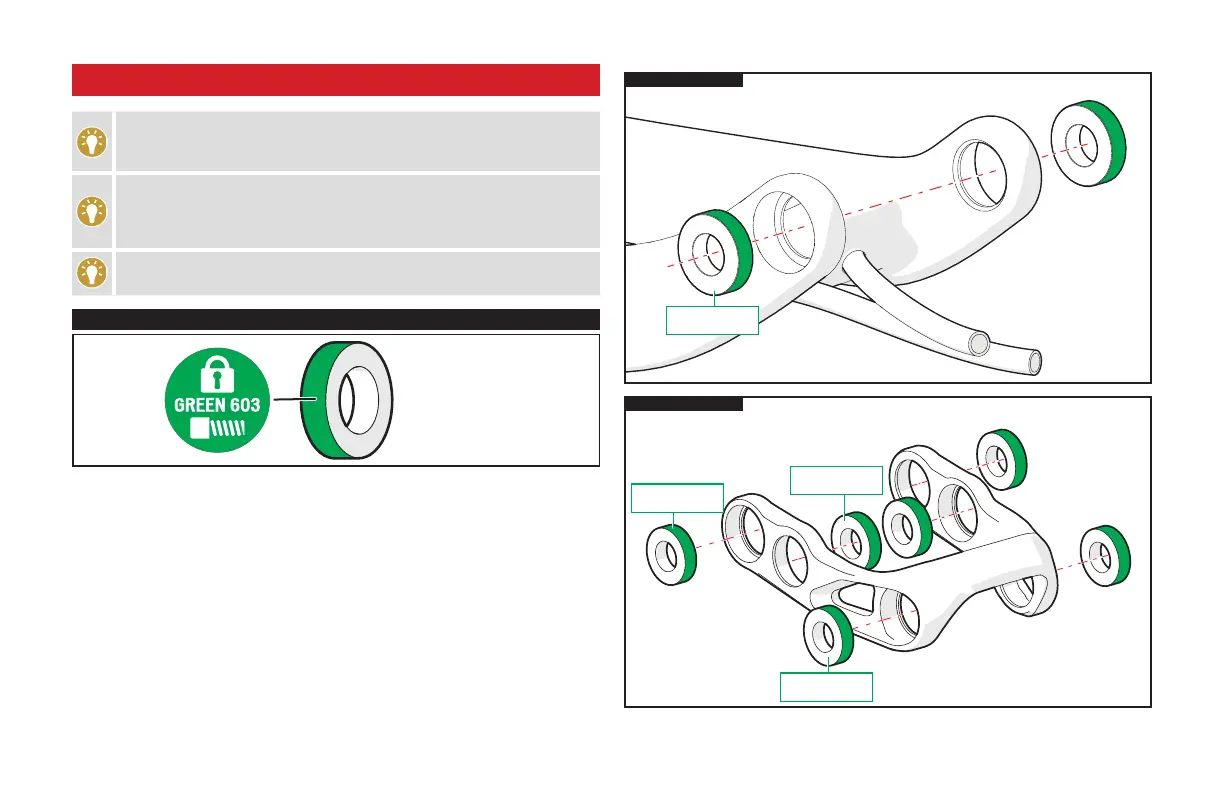

Apply green retaining compound to all the bearing/bore interface surfaces, then press all the
bearings into their respective pivot locations:
FORWARD SHOCK EYE
A: 6901V-2RS
12 ID x 24 OD x 6 W
FORWARD SHOCK EYE
D: 6800V-2RS
10 ID x 19 OD x 5 W
B: 6800V-2RS
10 ID x 19 OD x 5 W
C: 6800V-2RS
10 ID x 19 OD x 5 W
