Specialized EPIC EVO - 6. FLIP CHIP

13

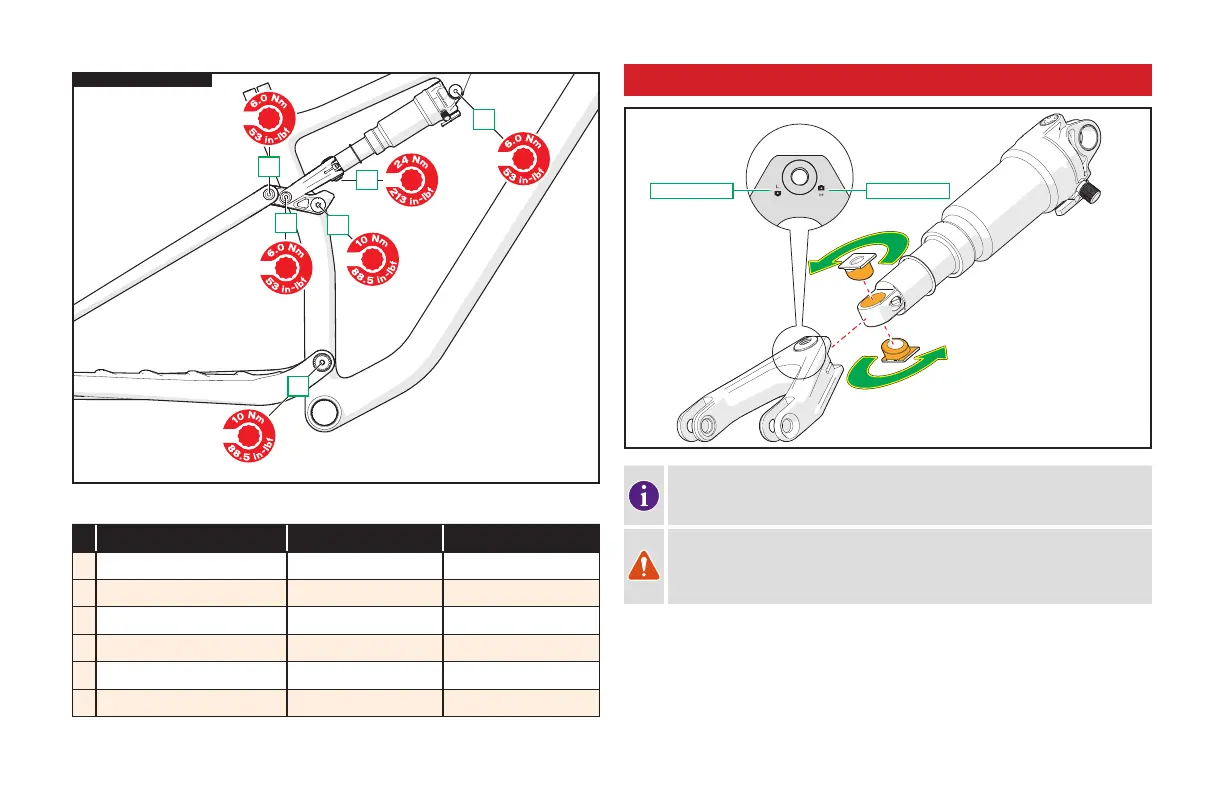

TORQUE SPECS
5
3
4
1
2
 Torque each pivot bolt according to the torque spec listed above.
# PIVOT LOCATION in-lbf Nm
1 MAIN 89 10.0
2 LINK @ SEAT TUBE 89 10.0
3 LINK @ EXTENSION 53 6.0
5 SEATSTAY @ LINK 53 6.0
4 FORWARD SHOCK EYE 53 6.0
6 REAR SHOCK EYE 213 24.0
6. FLIP CHIP
HIGH POSITIONLOW POSITION
All models are assembled with the Flip Chip in the Low position. Switching to
the High position raises the bottom bracket height by approximately 6mm and
steepens the head tube angle by approximately 0.5 degrees.
WARNING! Changing the frame configuration (Flip Chip position, tire size, fork
length) can alter the BB height and/or the head tube angle, which can have
negative effects on the bike’s handling characteristics and ride quality. Please
refer to your Authorized Specialized Retailer before making any modifications.
 Remove the upper and lower shock eye bolts, then remove the shock.
 Remove the Flip Chip halves out of the lower shock eye.
 Rotate the two Flip Chips 180 degrees then push them back into the lower shock eye.
 Install the shock on the frame, then thread the bolts in.
 Torque the forward shock eye, followed by the rear shock eye.
6
