Specialized EPIC EVO - Page 15

12

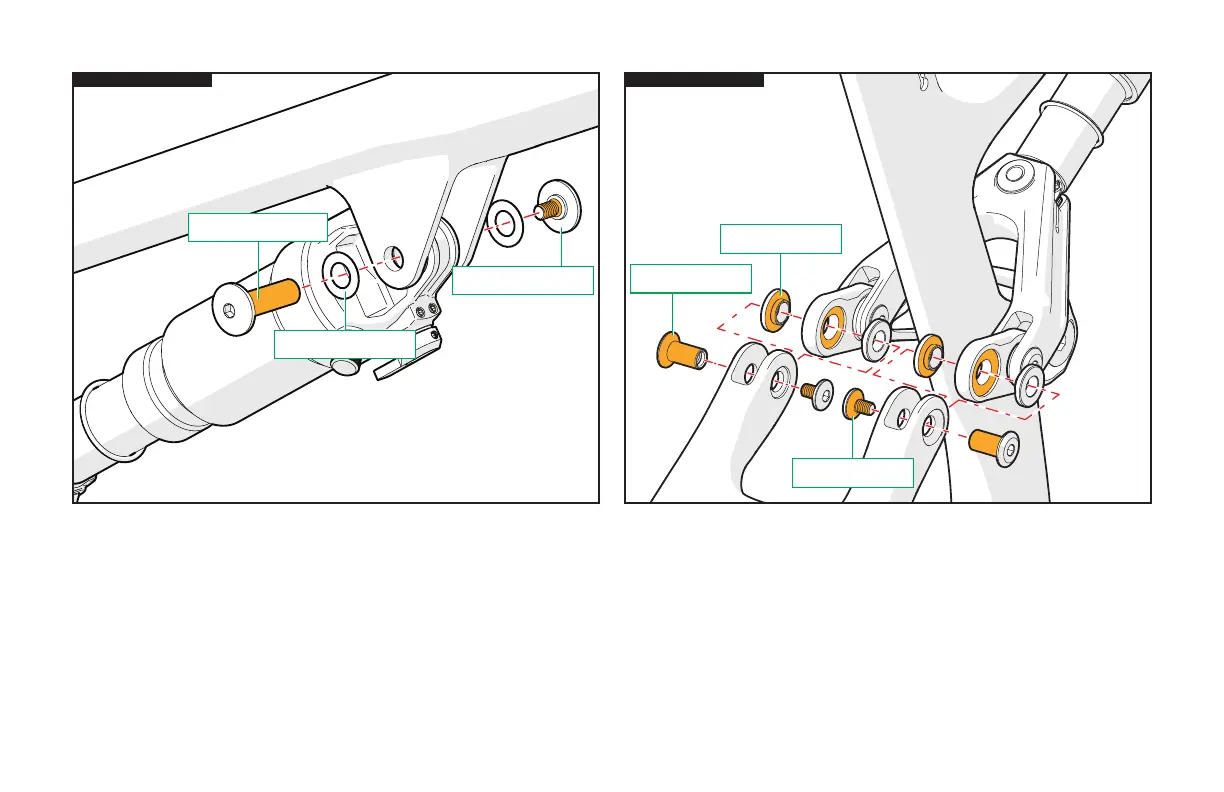

4. FORWARD SHOCK EYE
R: SHOCK EYE WASHER
8.25 ID x 15 OD x 0.3 W
P: SHOCK EYE AXLE
8 OD x 29.5 L
Q: SHOCK EYE BOLT
M5 x 8 L
 Align the forward shock eye with the the frame mount.
 Lightly grease, then place a washer (x2) R on the forward shock eye axle and bolt.
 Insert the axle P, then thread the bolt into the axle Q.
5. SEATSTAY @ EXTENSION
O: SEATSTAY BOLT
M5 x 8 L
H: SEATSTAY SPACER
8 ID x 16.5 OD x 2 W
N: SEATSTAY AXLE
8 OD x 17.23 L
 Grease, then place the seatstay spacers (x4) H into the link bearings.
 Align the seatstay with the link bearings.
 Grease, then insert the seatstay axles (x2) N into the pivot bore.
 Grease, then thread the seatstay bolts (x2) O into the seatstay axles.
