Specialized EPIC EVO - Page 14

11

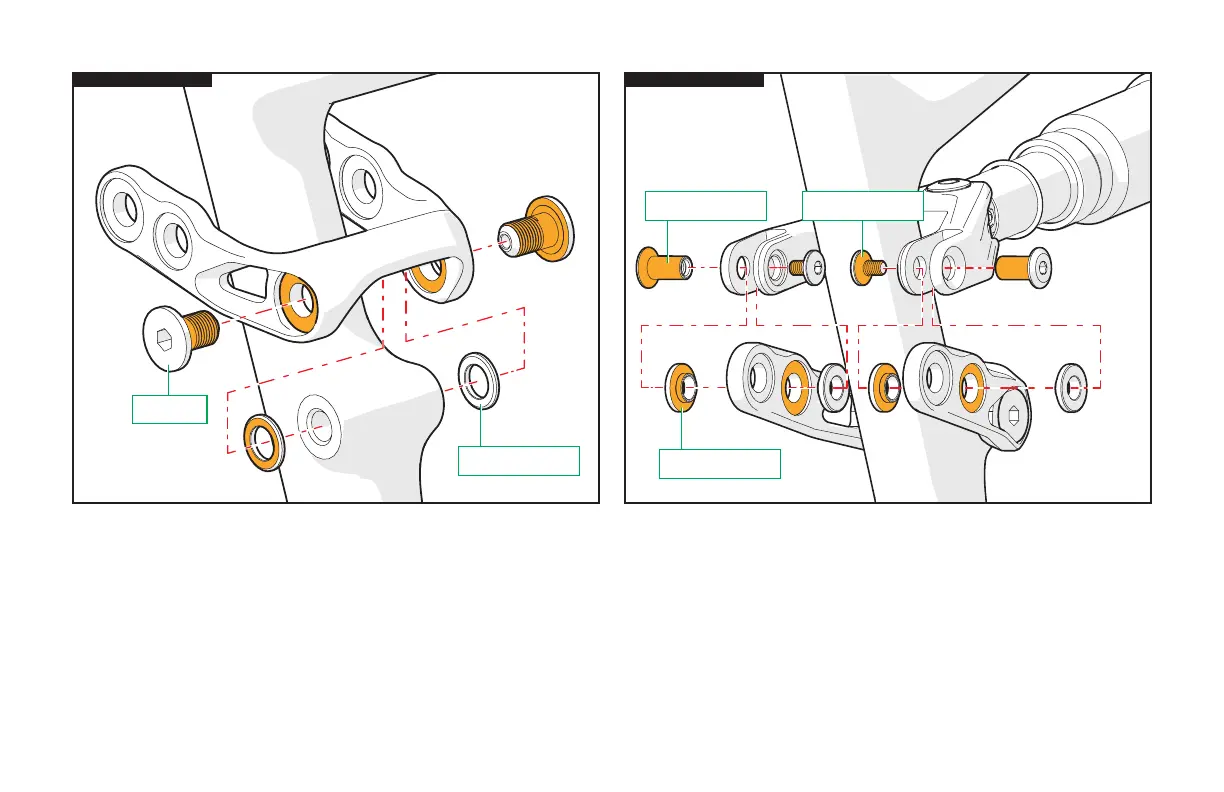

2. LINK @ SEAT TUBE
F: LINK SPACER
10.1 ID x 16.5 OD x 2 W
K: LINK BOLT
M10 x 16 L
 Grease, then place the link spacers (x2) F against the link bearings.
 Align the link with the seat tube pivot bore.
 Grease, then thread the link bolts (x2) K into the frame.
3. BRAIN RESERVOIR
 Grease, then place the extension spacers (x4) G into the link bearings.
 Align the extension with the extension bearings.
 Grease, then insert the extension axles (x2) L into the pivot bore.
 Grease, then thread the extension bolts (x2) M into the extension axles.
G: EXTENSION SPACER
8 ID x 16.5 OD x 2 W
L: EXTENSION AXLE
8 OD x 17.23 L
M: EXTENSION BOLT
M5 x 8 L
