hose can penetrate bearing seals and crank interfaces, increasing bearing and crank wear.
Use a clean, damp cloth and bicycle cleaning agents for cleaning.
 Do not expose the bicycle to prolonged direct sunlight or excessive heat, such as inside a
car parked in the sun or near a heat source such as a radiator.
WARNING! Failure to follow the instructions in this section may result in
damage to the components on your bicycle and will void your warranty, but,
most importantly, may result in serious personal injury or death. If your bicycle
exhibits any signs of damage, do not use it and immediately bring it to your
Authorized Specialized Retailer for inspection.
WARNING! When placing the frame and/or bicycle in a repair stand, clamp
the stand to the seatpost and not the frame. Clamping the frame can cause
damage to the frame that may or may not be visible, and you may lose control
and fall.
A
B
C
D
O
E
F
G
H
I
J
K
L
M
N

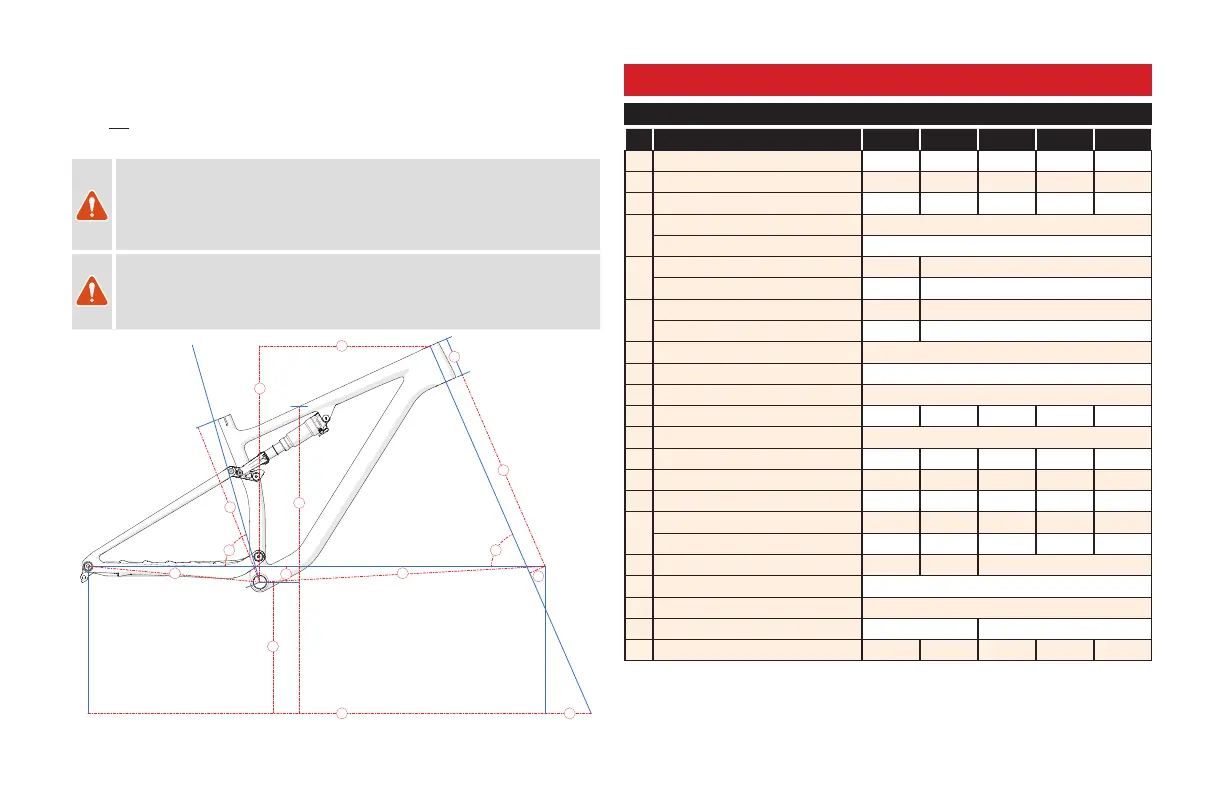

4. SPECIFICATIONS
4.1. GEOMETRY
FRAME SIZE XS SM MD LG XL
A STACK (mm)
603 593 597 611 629
B REACH (mm)
380 406 436 460 485
C HEAD TUBE LENGTH (mm)
95 95 100 115 135
D
HEAD TUBE ANGLE (LOW) (°)
66.5
HEAD TUBE ANGLE (HIGH) (°)
67
E
BB HEIGHT (LOW) (mm)
326 336
BB HEIGHT (HIGH) (mm)
332 342
F
BB DROP (LOW) (mm)
46 36
BB DROP (HIGH) (mm)
52 42
G TRAIL (mm)
114
H FORK LENGTH (full) (mm)
530
I FORK RAKE/OFFSET (mm)
42 / 44
J FRONT CENTER (mm)
672 697 729 759 792
K CHAINSTAY LENGTH (mm)
438
L WHEELBASE (mm)
1106 1132 1164 1194 1227
M STAND-OVER HEIGHT
760 779 781 793 804
N SEAT TUBE LENGTH (mm)
375 400 430 470 520
O
SEAT TUBE ANGLE (LOW) (°)
75.5 74.8 74.5 74.5 74.5
SEAT TUBE ANGLE (HIGH) (°)
76 75.3 75 75 75
CRANK LENGTH (mm)
165 / 170 170 175
HANDLEBAR WIDTH (mm)
750 / 760
STEM LENGTH (mm)
60
SADDLE WIDTH (mm)
155 143
SEATPOST MAX INSERTION (mm)
140 170 200 220 220
