7.1. CARBON FRAME
REAR BRAKE:
Make sure the fork is removed before starting the routing process.
Make sure the brake hose is sealed with a plug or Park Tool barb to prevent contamination. Make
sure all parts and tools are clean before installation.
1
A
B

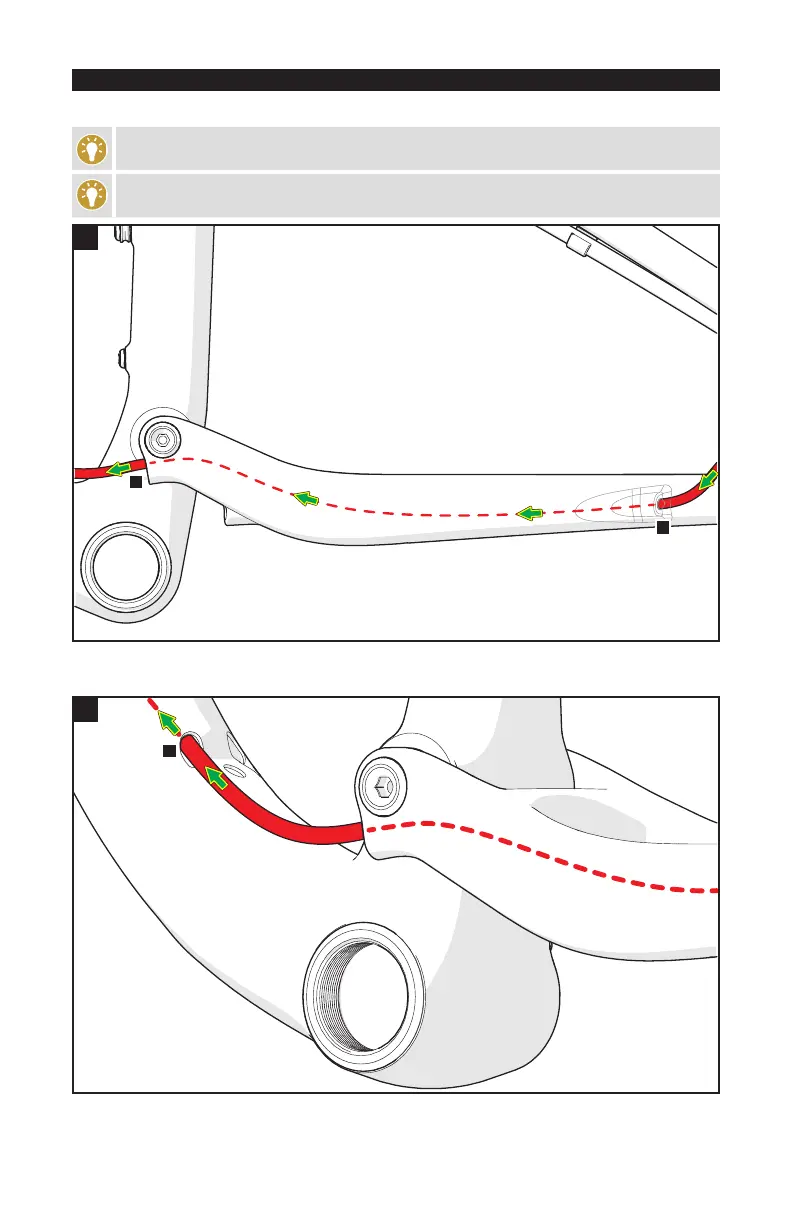

Fig.1: Insert the brake hose starting from the ICR port on the chainstay near the rear brake mount (A) until it exits
at the main pivot ICR port (B).
2
C
Fig.2: Insert the hose into the non-drive-side hole of the down tube ICR port (C) and run the hose up the down
tube until it exits out the top of the head tube (fig.3).
