6. SUSPENSION PIVOT ASSEMBLY STEPS
When assembling the pivots, it is recommended to follow a specific order of assembly.
Torque all pivot axles (torque specs on page 5) only once all pivots have been assembled, in the same order as
assembly.
For each pivot area, grease the surface of the spacer that is in contact with the bearings. All pivot axles should have a
blue threadlocking compound on the threads. Apply grease to each axle surface, including the threads.
When overhauling the pivot assemblies for regular maintenance, follow the steps to ensure proper assembly.
6.1. ASSEMBLING PIVOTS
A
C
C
B
B
1

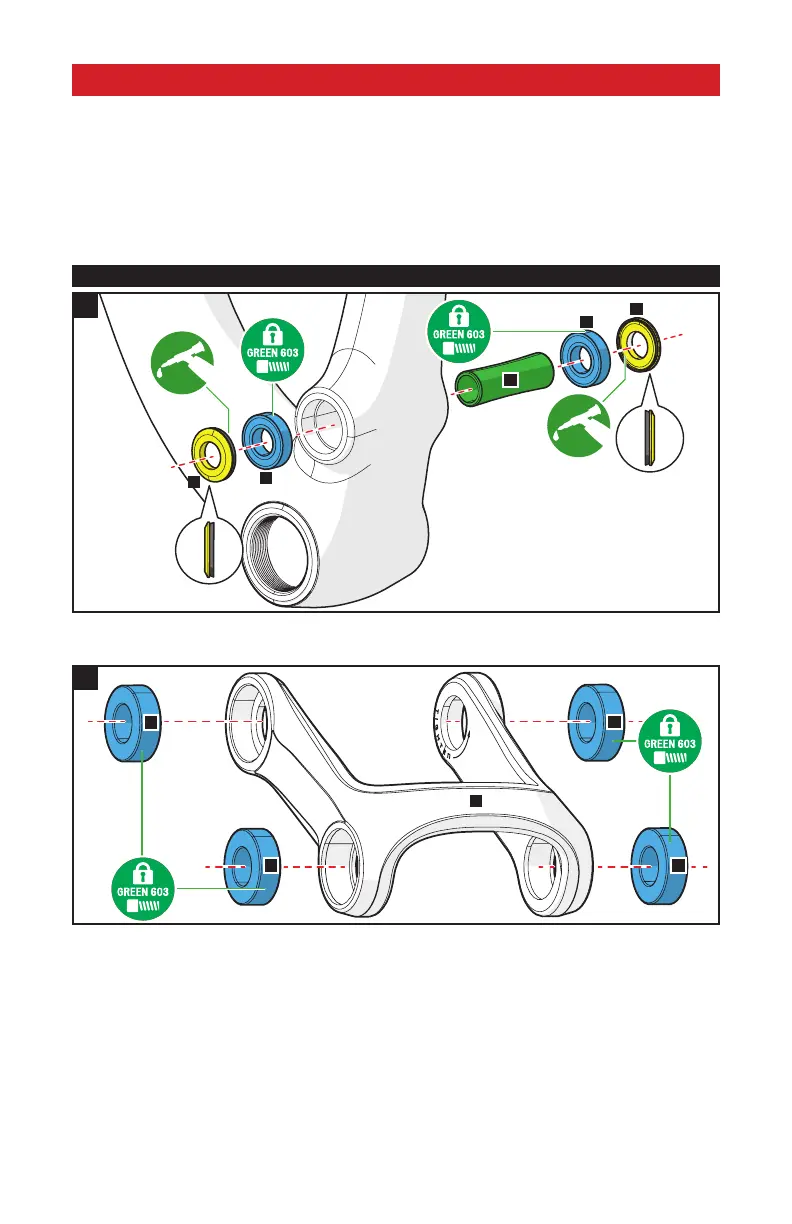

 Align the center sleeve (A) and press main the pivot bearings (B) into the main pivot bore.
 Grease, then install the main pivot spacers (C), with the rubber seals facing toward the bearing.
D
D D
D
E
2
 Apply the specified green Loctite to the bearings (D) and bearing bores, then press the bearings into the link (E).
