8. SWAT PARTS
8.1. EMT TOOL
Specialized Z Cage II / Cage-Mount Tool cradle
CAGE-MOUNT
TOOL CRADLE
1
2

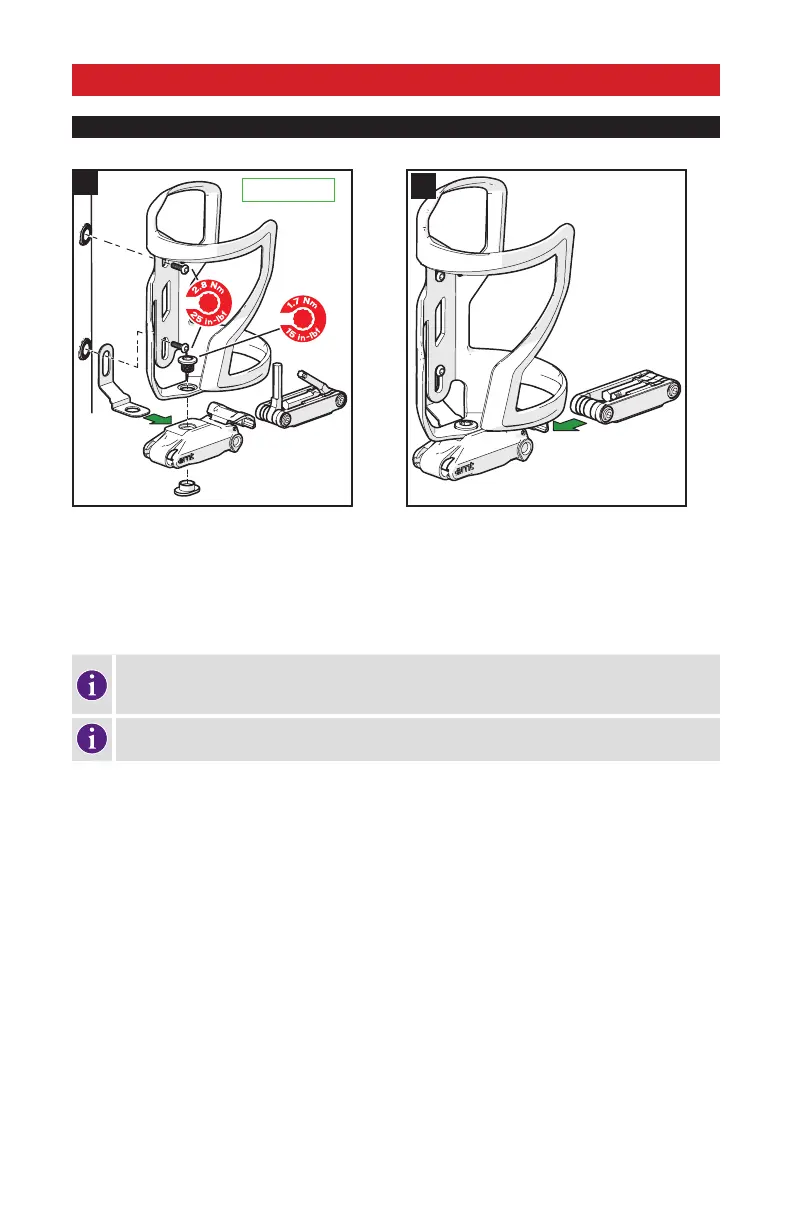

Install the metal bracket into the Cage-Mount Tool cradle (the round hole goes into the cradle, the oblong hole
aligns with the Z Cage’s lower frame mounting hole).
Align the hole at the base of the Z Cage II over the hole in the Cage-Mount Tool cradle.
Insert the T-Nut into the Frame Tool cradle from below.
Thread the T-Bolt into the T-Nut. Torque the T-Bolt to 15 in-lbf / 1.7 Nm.
Install the EMT tool into the cradle.
The EMT Tool with Cage-Mount Tool cradle and Z Cage II can be installed on many bike models.
Some frames are not compatible due to interference between the frame and the Cage-Mount Tool
cradle. Verify that the fit is unobstructed before installation.
The Z Cage II is available in left- or right-side bottle entry options.
