23
1
1
5
m
m
9
1-3mm
1
5
2
m
m
10

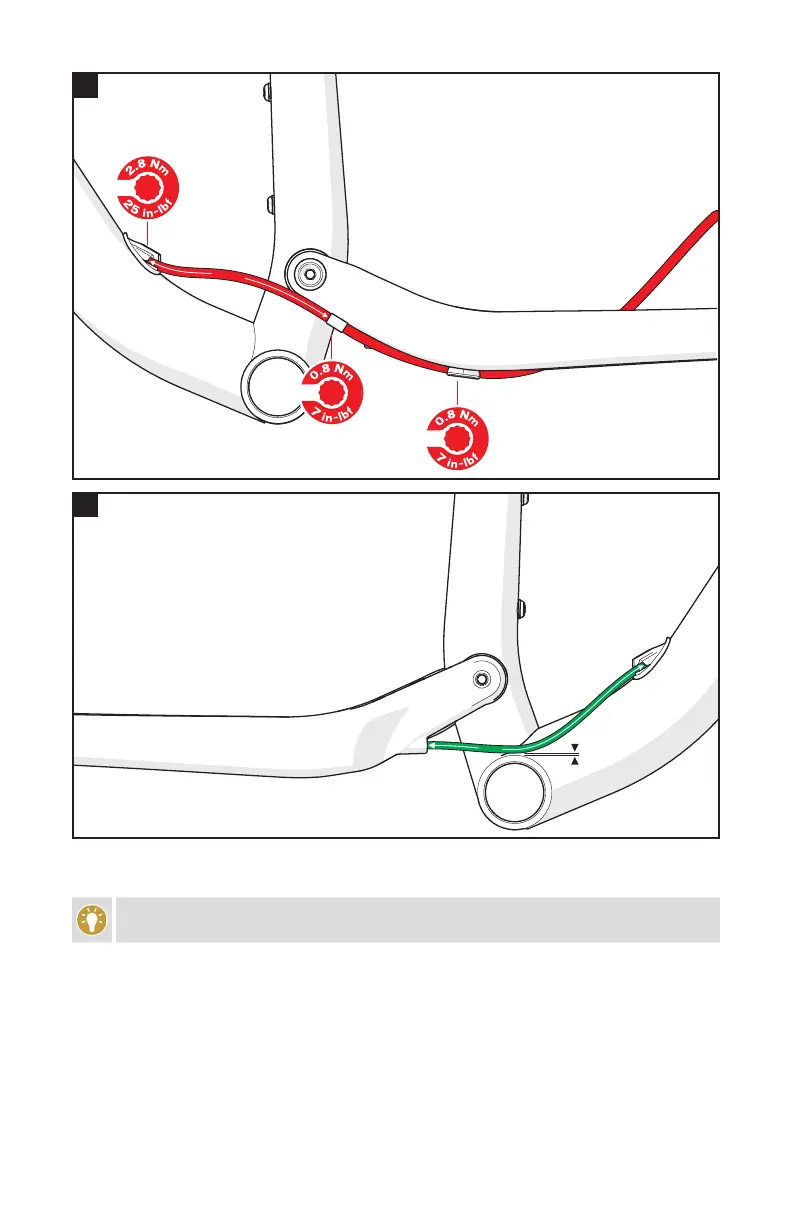

Fig.9&10: Adjust the length/curve of the brake hose and shift housing loops between the down tube and
chainstay ICR ports by pulling the hose and housing at the head tube in or out.
The exposed housing should measure 115mm (fig.9 brake hose) and 152mm (fig.10 shift housing).
For the shift housing, this should position the housing about 1-3mm above the bottom bracket shell.
Once the housing loops are the correct length/curve, torque the down tube ICR port bolt to 25 in-lbf / 2.8 Nm.
Trim the exposed brake hose and shift housing from the head tube to the brake lever and shifter so the handlebar
can rotate 90 degrees in each direction without pulling on the hose and housing (see carbon frame fig.10).
Install the brake housing in the brake lever according to the brake manufacturer’s instructions.
Install a ferrule on the shifter end of the shift housing, then place the ferrule in the shifter.
Install the shift cable into the shifter and down the housing until it enters the chainstay and exits at the dropout.
Install the section of shift housing trimmed to length to go from the dropout ICR port to the derailleur.
Finish installing and adjusting the brake and derailleur according to the manufacturer’s instructions.
