 Fig.6: Install a Churro (G) over the shift housing.
 Fig.6: Insert the barb (H) in a section of shift housing (minimum housing length 1150mm), then pull the Park
wire out the head tube to pull the housing up the down tube while working the Churro through the down tube ICR
port.
 Trim a section of shift housing according to the derailleur manufacturer’s instructions to go from the dropout ICR
port to the derailleur, then install shift housing ferrules with extended tips on each end (fig.7, fig.8).
FINAL ASSEMBLY:
7
I
J
K
8
K

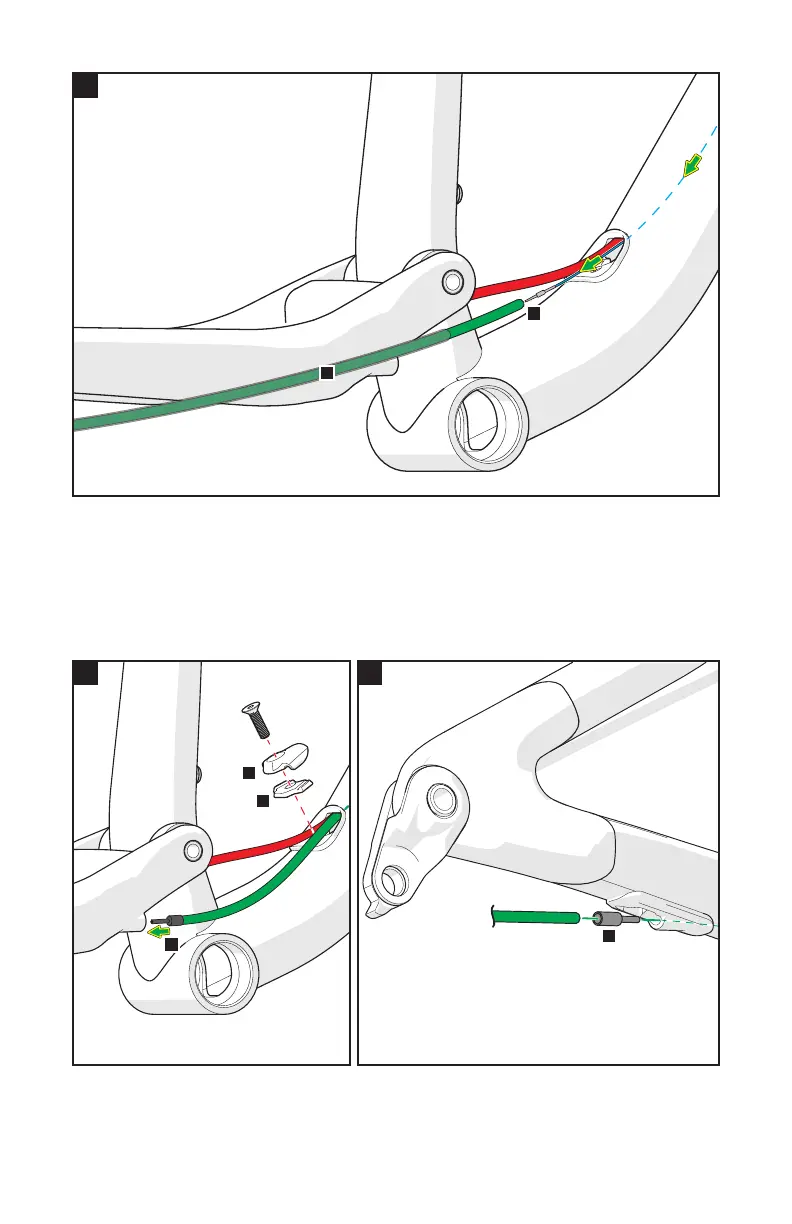

 Fig.7: Install the down tube ICR port assembly with the rubber part (I) below and the alloy part (J) above the housings.
Do not torque at this time.
 Fig.7: I nstall a ferrule with extended tip on the shift housing, then place the shift housing into the chainstay ICR
port near the main pivot.
