19
10

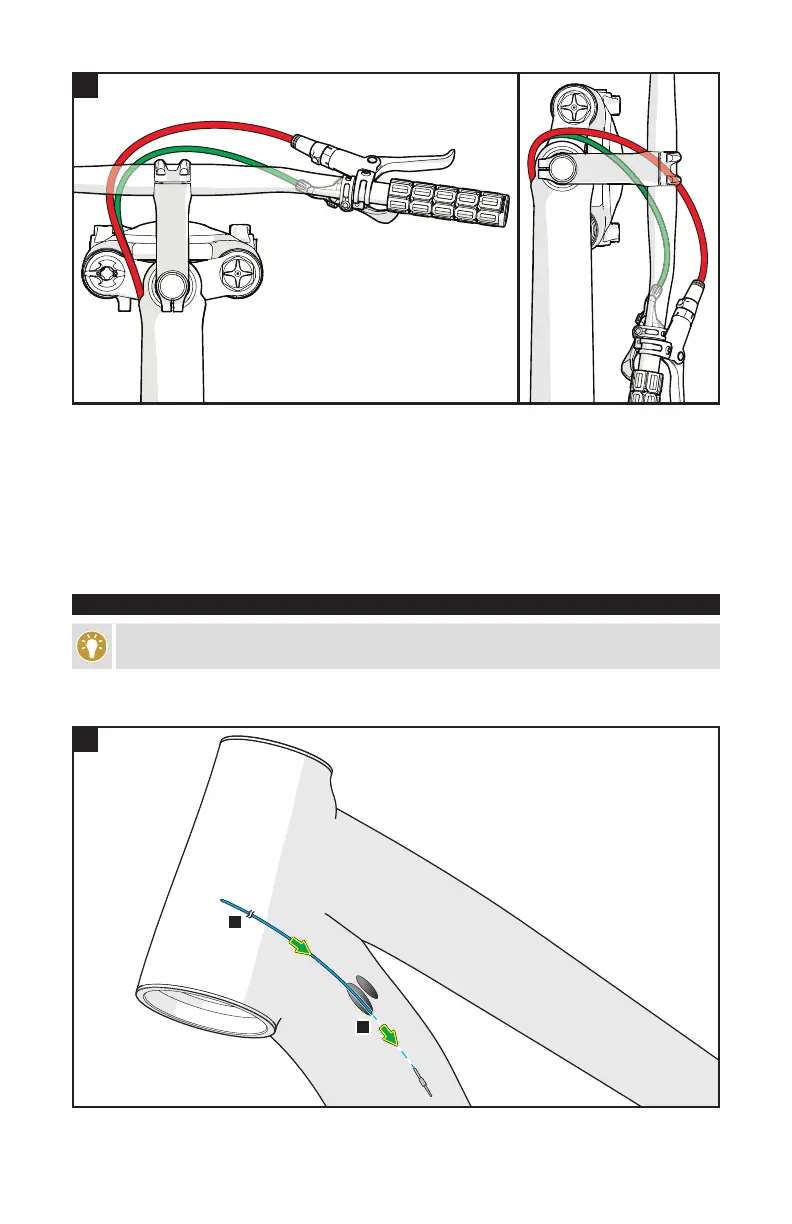

Fig.10:
Trim the exposed brake hose and shift housing from the head tube to the brake lever and shifter so the
handlebar can rotate 90 degrees in each direction without pulling on the hose and housing
Attach the brake housing to the brake lever according to the brake manufacturer’s instructions.
Install shift housing ferrules at each end of the housing, then insert the housing ends into the derailleur and shifter.
Install the shift cable into the shifter and down the housing until it exits at the dropout, then adjust according to
the derailleur manufacturer’s instructions.
Install the rear wheel, adjust the brake caliper position relative to the rotor, then torque according to the brake
manufacturer’s instructions.
7.2. ALLOY FRAME
The front end assembly (fork, headset, stem, handlebar, etc) does not need to be removed from
the frame to route the housings.
REAR BRAKE:
Install a foam sleeve (Churro) over the brake hose.
1
A
B
Fig.1: Insert a Park Tool barb-tipped wire (A, barb end first) through the lower non-drive-side head tube ICR port
(B) and down the down tube until it exits the ICR port at the base of the down tube.
