18
FINAL ASSEMBLY:
8
I
J
K

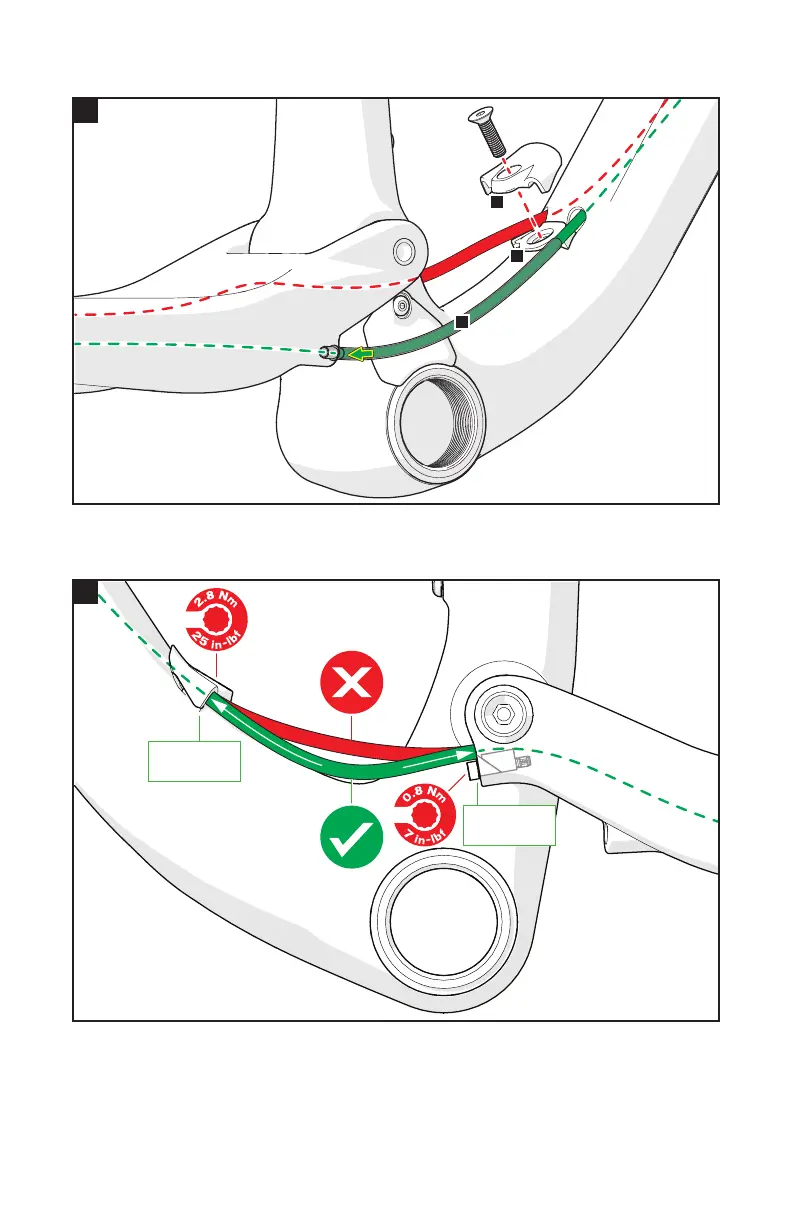

Fig.8: Install the down tube ICR port assembly with the rubber part (J) below and the alloy part (K) above the housings.
Trim the exposed housing from the dropout to the derailleur so it is the correct length according to the derailleur
manufacturer’s instructions.
9
5
-
1
0
0
m
m
DOWN TUBE
ICR PORT
CHAINSTAY
ICR PORT
9
Fig.9:
Measure the exposed brake hose between the chainstay and down tube ICR ports, so there is 95-100mm
of exposed housing.
Fig.9:
Once the length/curve of the brake hose is correct, torque the down tube ICR port bolt to 25 in-lbf / 2.8
Nm and the chainstay ICR port wedge bolt to 7 in-lbf / 0.8 Nm. Be sure not to clamp down on the shift cable
housing tube (fig.8, item I).
Install the front end assembly (fork, headset, stem, handlebar, brakes, shifter, grips).
