REAR DERAILLEUR:
7
H
I

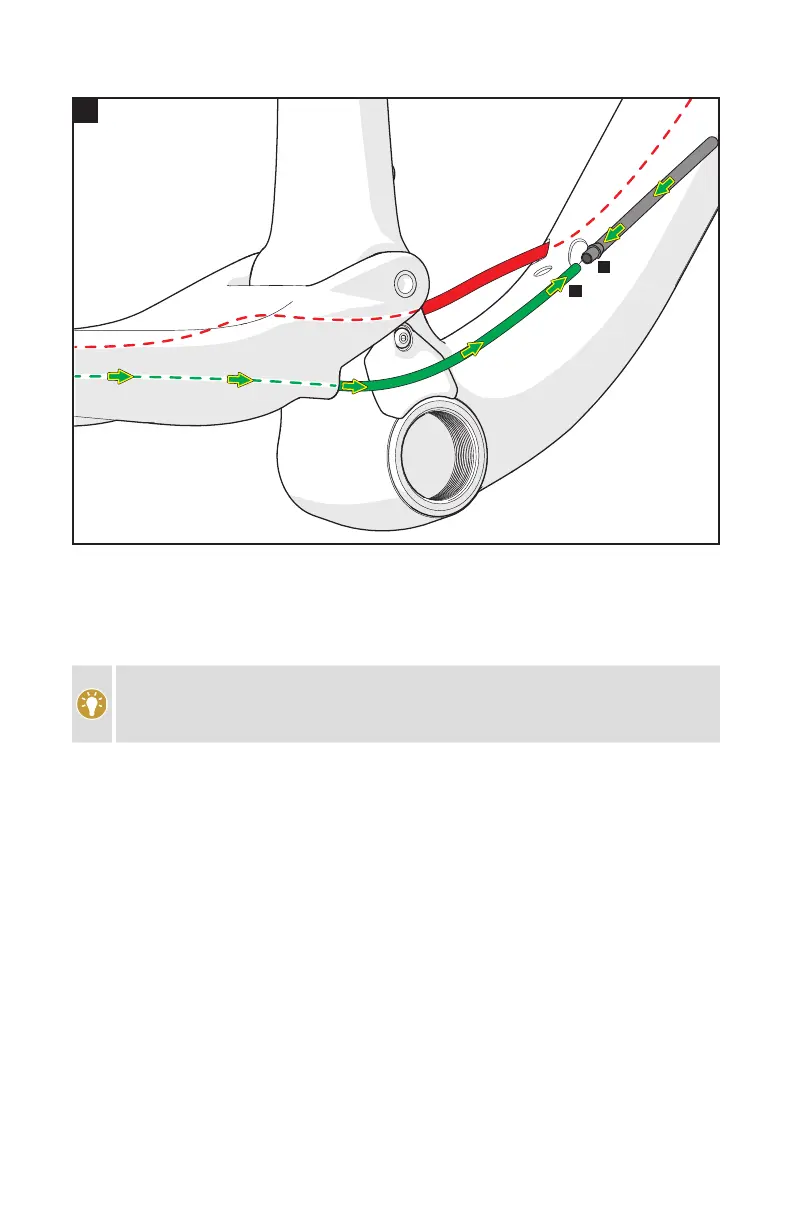

Fig.7: Insert a 1400mm long section of shift housing into the ICR port at the drive-side dropout and guide it
through the chainstay until it exits at the main pivot ICR port (H).
Fig.7: Install a shift cable housing tube (I) over the shift housing that’s exiting the chainstay ICR port, while
guiding the housing into the down tube ICR port. The Lazy Loop is designed to set the housing between the
chainstay and down tube ICR ports at a specific length and curve.
When guiding the housing from the chainstay ICR port to the down tube ICR port, guide just enough
housing out of the chainstay so the end of the housing is in line with the down tube ICR port, then
install the shift cable housing tube (I) over the housing (H) before aligning the housing with the
down tube ICR port and routing it up the down tube. For optimal shifting, do NOT kink the housing.
Repeat the steps from the rear brake section, fig.3-6, but for the shift housing instead of the brake hose. Make
sure the shift housing does not wind around the brake hose.
