16
5
D
E
F
G

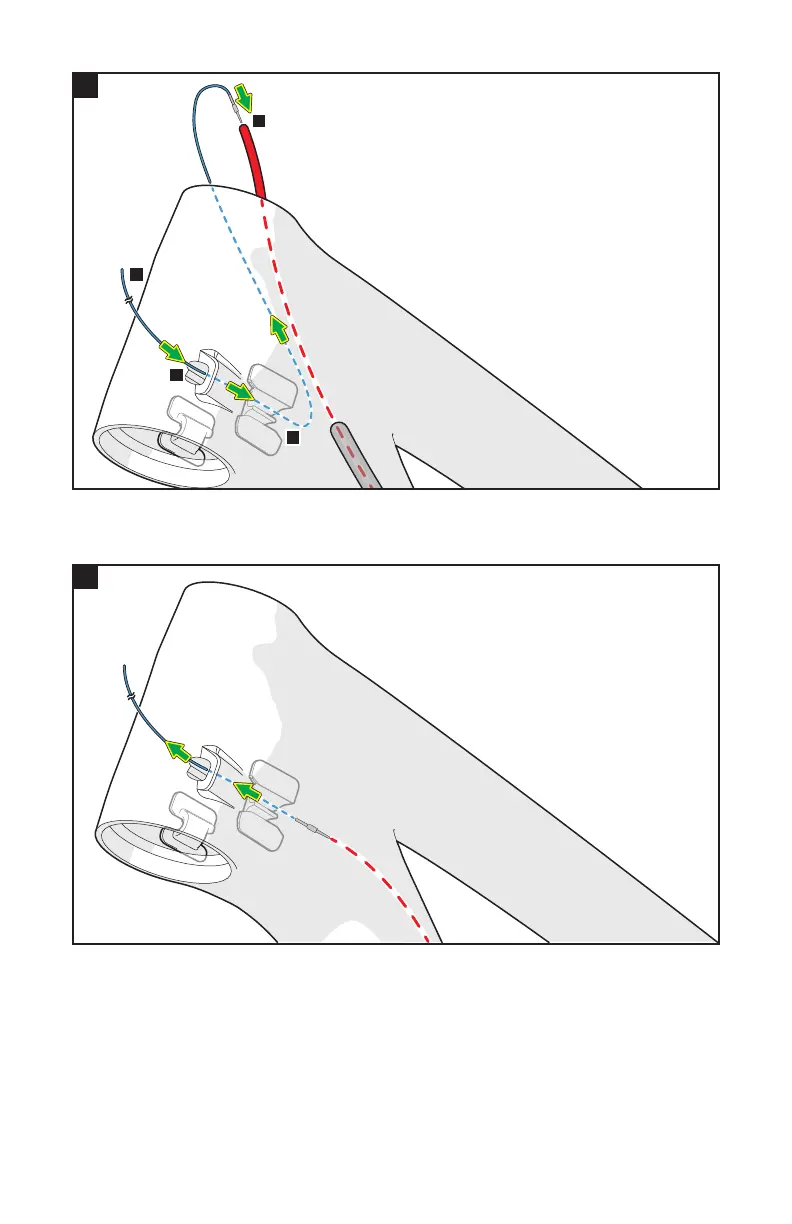

Fig.5: Insert a Park Tool barb-tipped wire (D, barb end first) through the non-drive-side head tube ICR port (E),
through the upper hole of the down tube cable guide (F), then up and out the top of the head tube. Thread the
wire barb into the brake hose (G).
6
Fig.6: Guide the brake hose back down into the down tube until it is just below the internal hose guide.
Fig.6: Pull on the wire exiting the head tube ICR port to guide the brake hose through the internal hose guide and
out the head tube ICR port.
Mount the brake caliper onto the seatstay brake mount so it is in position, but not yet torqued to spec.
Insert the wedge assembly in the chainstay ICR port below the main pivot, so it is below the housing. Make sure
the housing loop from the chainstay ICR port to the brake caliper has a gradual bend with no excessive tightness.
Once this loop is correct, torque the wedge to 7 in-lbf / 0.8 Nm.
