Specialized EPIC - Installing Small Parts

12
13
W
Y
Y
V
X
U

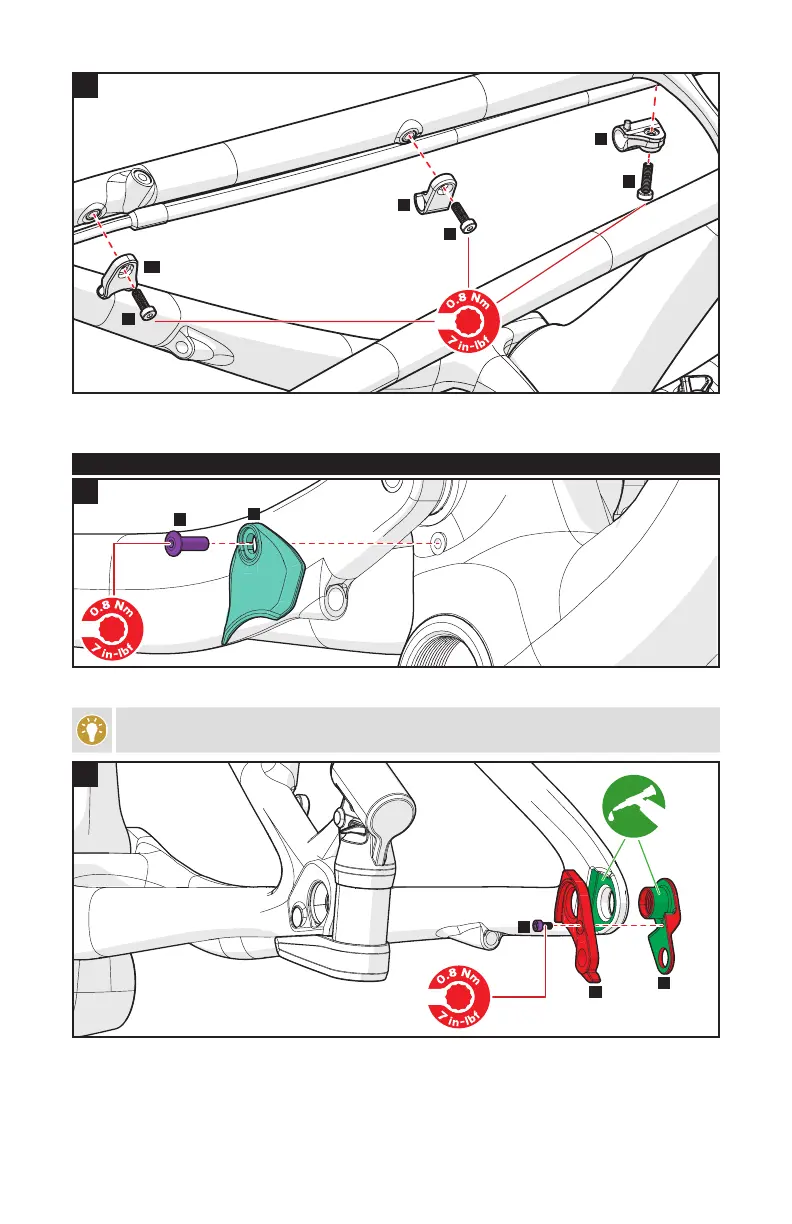

 Position the clips on the Brain hose (U at the top, V in the middle, W at the bottom).
 Install the bolts into clips (X at the top, Y at the middle and bottom). Torque all clip bolts to 7 in-lbf / 0.8 Nm.
6.2. INSTALLING SMALL PARTS
B
A
14
 CARBON FRAME: Install the bolt (A) through the protector (B) and into the frame. Torque to 7 in-lbf / 0.8 Nm.
The protector plate can be realigned when the bottom bracket is installed to match the curve of
the bottom bracket.
C
D
E
15
 Grease then install the rear derailleur hanger (C is inside, D is outside). Install the hanger bolt (E) and torque to
7 in-lbf / 0.8 Nm.
