21
4
E
E
F
F
Fig.4: Run the brake hose under the chainstay and up between the seatstays, then mount the brake caliper onto
the rear triangle.

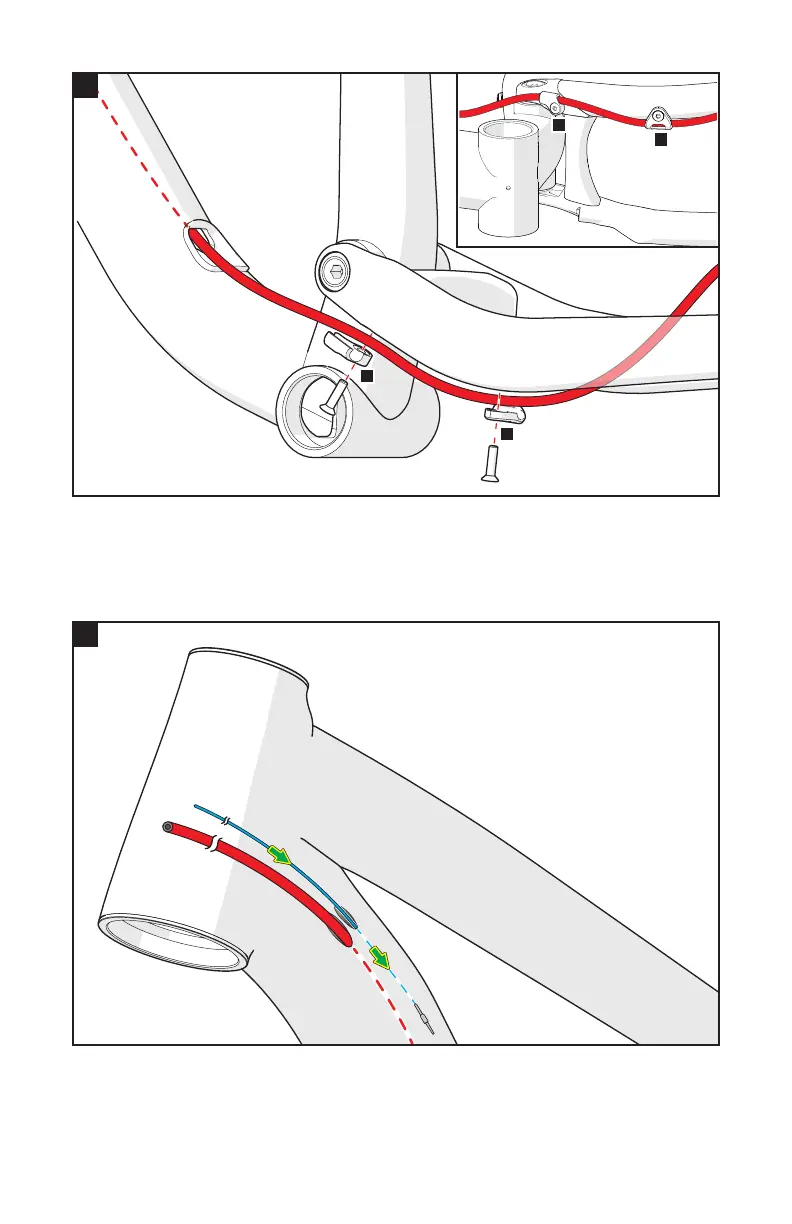

Fig.4: Install the two clips over the hose on the underside of the chainstay to get the correct hose position and
curve from the brake caliper to the chainstay clips. Torque the clip bolts to 7 in-lbf / 0.8 Nm.
REAR DERAILLEUR:
5
Fig.5: Insert a Park Tool barb-tipped wire (barb end first) through the upper non-drive-side head tube ICR port
and down the down tube until it exits the ICR port at the base of the down tube.
To Next Page
