Specialized EPIC - Page 10

7
F F
3

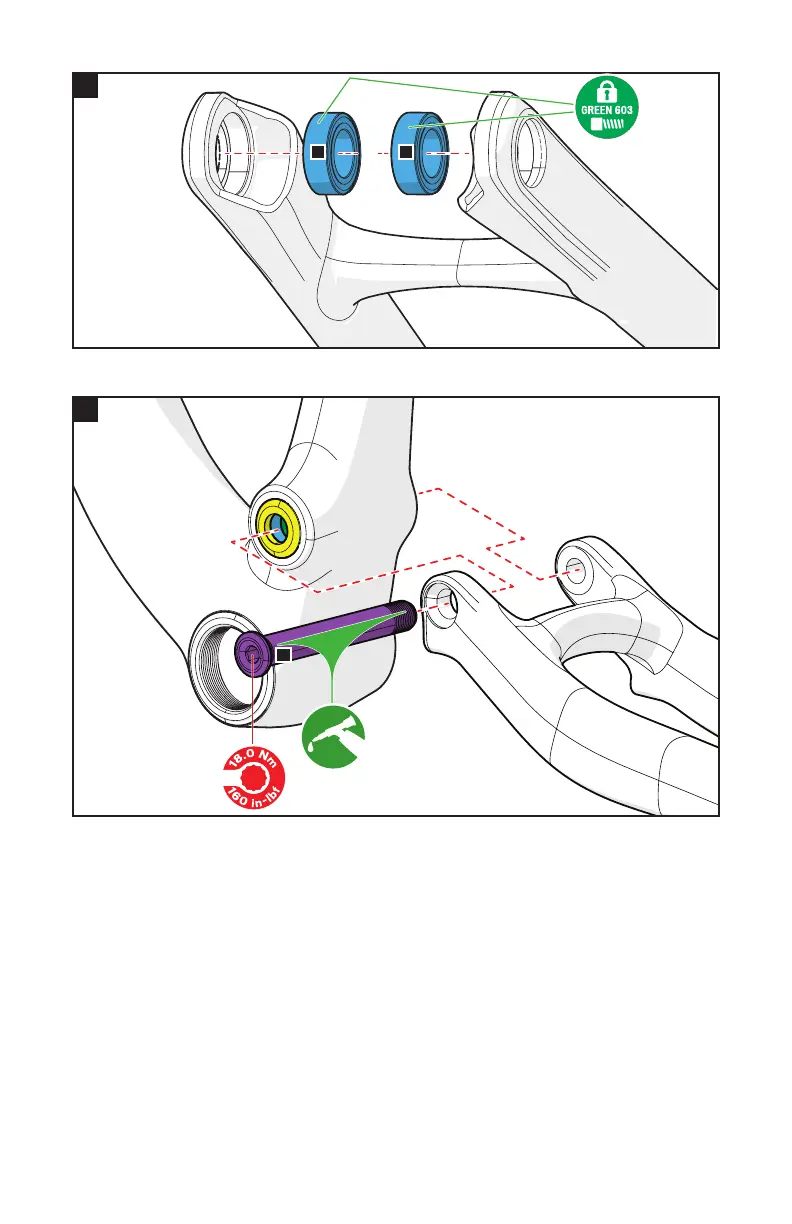

 Apply the specified green Loctite to the bearings (F) and bearing bores, then press the bearings into the seatstay
pivot bearing bores.
G
4
 Align the chainstay bore with the bearings. Grease then install the pivot axle (G). Torque to 160 in-lbf / 18 Nm.
