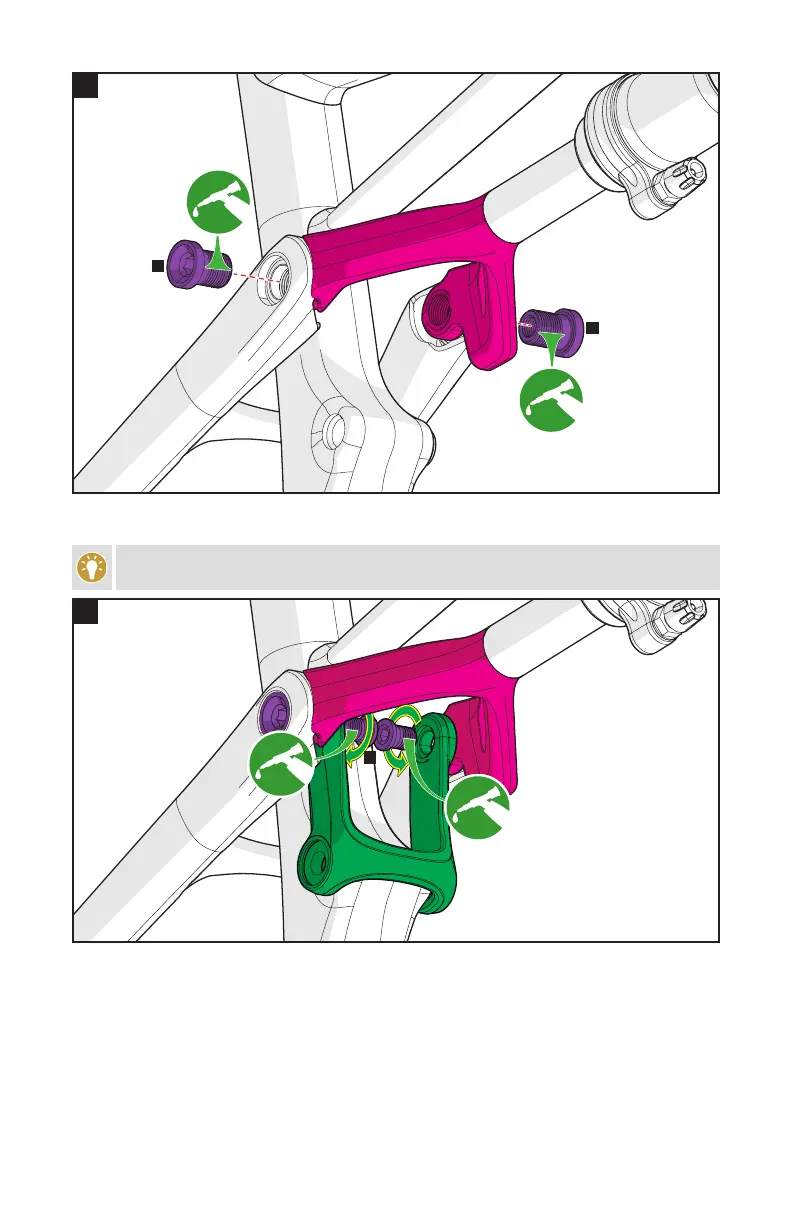

Align the shock extension and seatstay in front of the seat tube, then grease and install the seatstay pivot outer
bolts (H). Do not torque until fully assembled.
Place a cloth or piece of foam around the seat tube to prevent the link or seatstay bridge from
impacting the seat tube during assembly and damaging the finish.
6
I
Align the link with the extension at the seatstay pivot hole.
Grease, then install the inner pivot bolts (I) from the inside. These bolts have reverse threads. Do not torque until
fully assembled.
