Specialized FSR - DERAILLEUR GUARD; Derailleur Guard Installation (Q;R option); DOWN TUBE CABLE GUIDE INSTALLATION; Down Tube Cable Guide Installation Notes

9

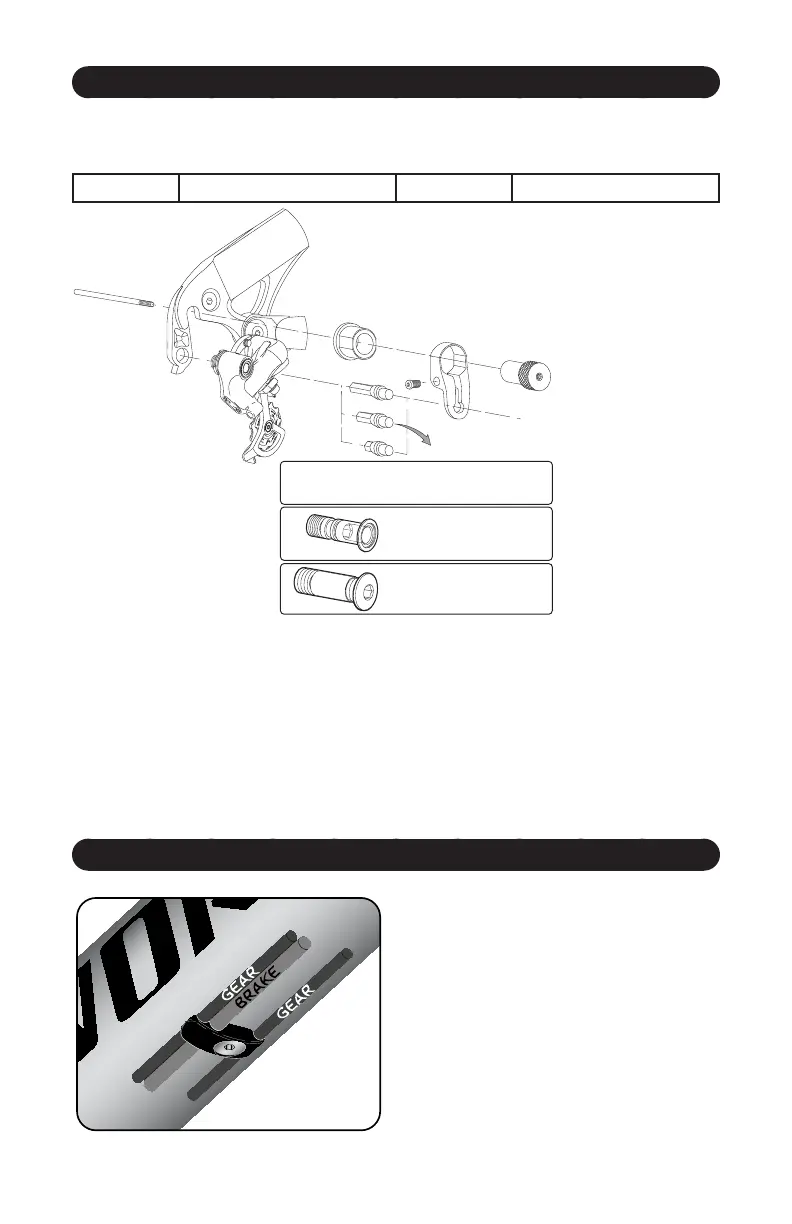

DERAILLEUR GUARD
The Specialized Derailleur guard is available separately through your Specialized
Authorized Dealer. The guard works with solid or Q/R axle types and is compatible with all
Mountain bike models using the Rev2 Alloy Mtn Derailleur Hanger.
Guard Part# 9896-4030 Hanger Part# 9895-4021
Short (10mm):
(All Shimano derailleurs without
countersunk hanger bolt)
Medium (25mm):
Shimano XTR / XT / LX
(All Shimano derailleurs with
countersunk hanger bolt)
Long (31mm):
All SRAM derailleurs
All Shimano Shadow derailleurs
GUARD PINS
31
25
10
Q/R Axle
Guard
Spacer
Guard
Q/R Nut
Derailleur Guard Installation (Q/R option):
 Install rear derailleur on derailleur hanger.
 Place rear wheel in frame and install Q/R, with springs and without Q/R end nut.
 Insert appropriate derailleur guard pin in derailleur.
 Place guard sleeve in derailleur guard.
 Slide derailleur guard and sleeve over guard pin and Q/R.
 Install supplied Q/R nut and tighten Q/R.
 Torque guard pinch bolt to 80 in-lbf (9 N*m).
DOWN TUBE CABLE GUIDE INSTALLATION
The Specialized Status models are
equipped with bolt-on down tube cable
guides. For proper housing placement and
function, the hydraulic rear brake housing
goes in the larger middle slot, the gear
cables go on the outside.
NOTE: Only use 4mm gear housing.
Do not overtighten the guide bolts!
