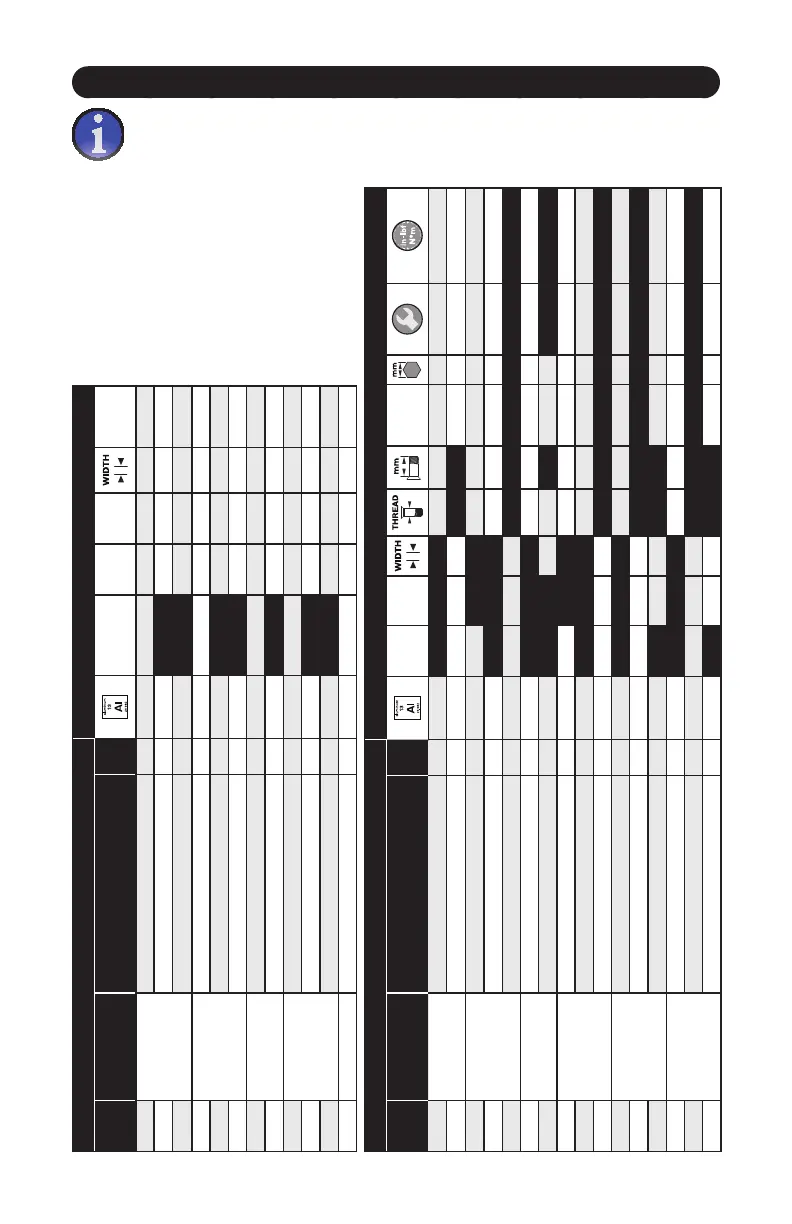

FRAME PIVOT SPECIFICATIONS
NOTE: All pivot bolt threads
require blue threadlocker.
PART # 9892-5205 SPECIFICATION
ITEM # LOCATION PART QTY
MODEL Ø OD Ø ID
1-A
Bottom Bracket
Bearing 2 Steel 6902-2RS 28 15 7
1-B Spacer 2 Aluminum 21 15.1 3 Chamfered
1-C Sleeve 1 Aluminum 19.1 15.1 33.5
1-D
Dropout
Bearing 4 Steel 6800-2RS 19 10 5
1-E Spacer (outer) 4 Aluminum 16 10.1 2
1-F Spacer (inner) 2 Aluminum 15 10.1 2
1-G
S-Link @ Down Tube
Bearing 2 Steel 6902-2RS 28 15 7
1-H Spacer 2 Aluminum 21 15.1 3 Chamfered
1-I
S-Link @ Seatstay
Bearing 4 Steel 6800-2RS 19 10 5
1-J Spacer (outer) 4 Aluminum 16 10.1 2
1-K Spacer (inner) 2 Aluminum 15 10.1 2
1-L S-Link @ Yoke Bearing 2 Steel 608-2RS 22 8 7
PART # 9892-5215 SPECIFICATION
ITEM # LOCATION PART QTY
Ø OD Ø ID
2-A
Bottom Bracket
Axle 1 Aluminum 15 72.2 8 Allen Hex 200-230 (22-25)
2-B Axle Nut 1 Aluminum 23.5 15 6.5 17 6-pt Wrench
2-C
Dropout
Axle 2 Aluminum 10 5 22 4 Allen Hex 100-120 (11-13)
2-D Bolt 2 Steel 5 20 5 Allen Hex
2-E Bolt Hat 2 Aluminum 16 10.2 4.6
2-F
S-Link @ Down Tube
Axle 2 Aluminum 15 24 8 Allen Hex 200-230 (22-25)
2-G Sleeve 1 Aluminum 30 15 Hourglass 10
2-H
S-Link @ Seatstay
Axle 2 Aluminum 10 5 22 4 Allen Hex
2-I Bolt 2 Steel 5 20 5 Allen Hex 100-120 (11-13)
2-J Bolt Hat 2 Aluminum 16 10.2 4.6
2-K
Lower Shock Eye
Bolt 1 Steel 8 45 6 Allen Hex
2-L Washer 2 Steel 12.7 8.1 0.5
2-M Nut 1 Steel 8 7.5 13 Socket 180-200 (20-22)
2-N
Upper Shock Eye
Bolt 1 Steel 8 45 6 Allen Hex
2-O Washer 2 Steel 12.7 8.1 0.5
2-P Nut 1 Steel 8 7.5 13 Socket 180-200 (20-22)
