Specialized FSR - FRAME FEATURES; Frame Linkage Assembly; Accessories

5

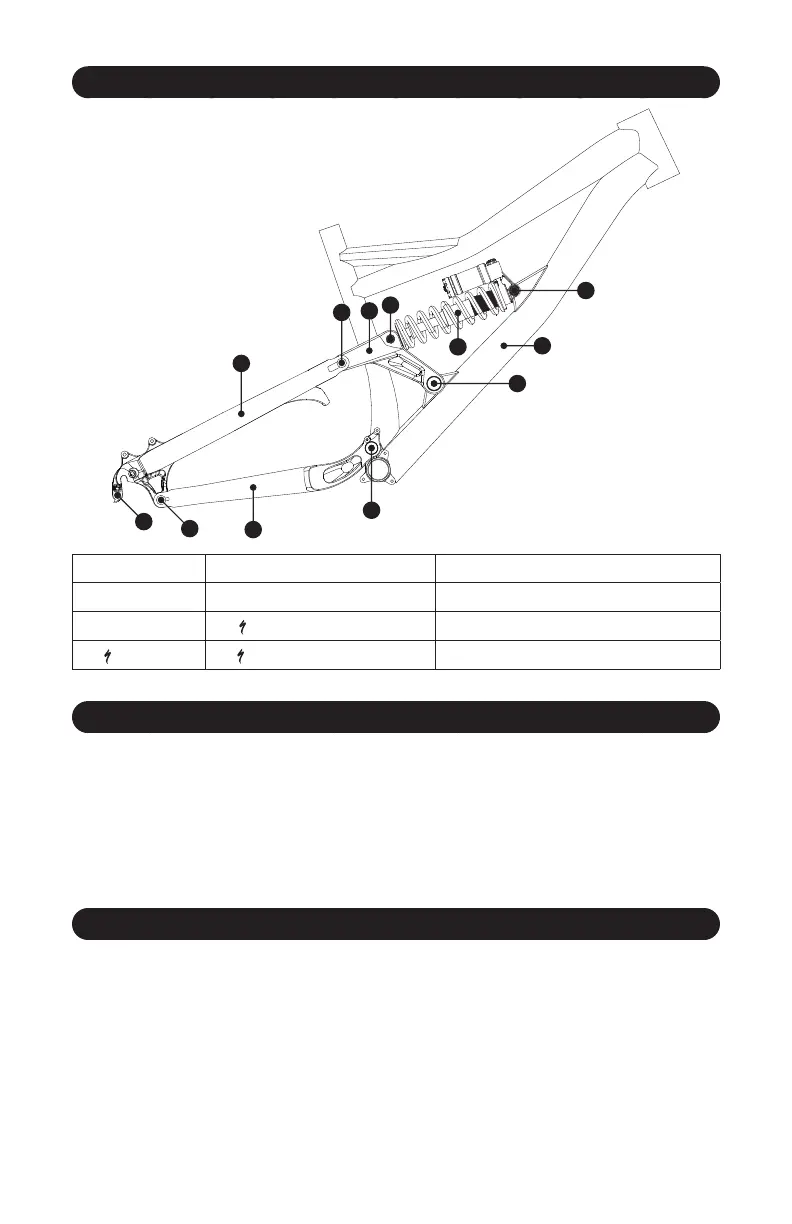

FRAME FEATURES
1
8
9
2
7
4
3
10
11
5
6
12
1. Main Frame 5. Main Pivot 9. Upper Shock Eyelet
2. Seatstay 6. Dropout (Horst) Pivot 10. Lower Shock Eyelet
3. Chainstay
7. -Link @ Seatstay Pivot
11. Shock
4. -Link 8. -Link @ Frame Pivot 12. Replaceable Derailleur Hanger
FRAME LINKAGE ASSEMBLY
Specialized recommends following a specific order when assembling the rear triangle
pivot locations of FSR suspension bike models (see illustration above).
1. Main pivot (#5)
2. Main link pivot (#8)
3. Either the Horst link pivot or the link @ seatstay pivot (#6 or #7).
Assembling the upper or lower pivots of the seatstay as a last step makes it easier to
align the parts and hold the washers in place.
ACCESSORIES
Specialized offers replacement chainstay protectors, available through your
Specialized Authorized Dealer.
