4
FORK SETUP INFORMATION
WARNING! Status frames are compatible ONLY with forks that have travel of 8”
(200mm) or less. Use of different styled forks or forks with longer travel may
result in catastrophic failure of the frame which may result in serious personal
injury or death.

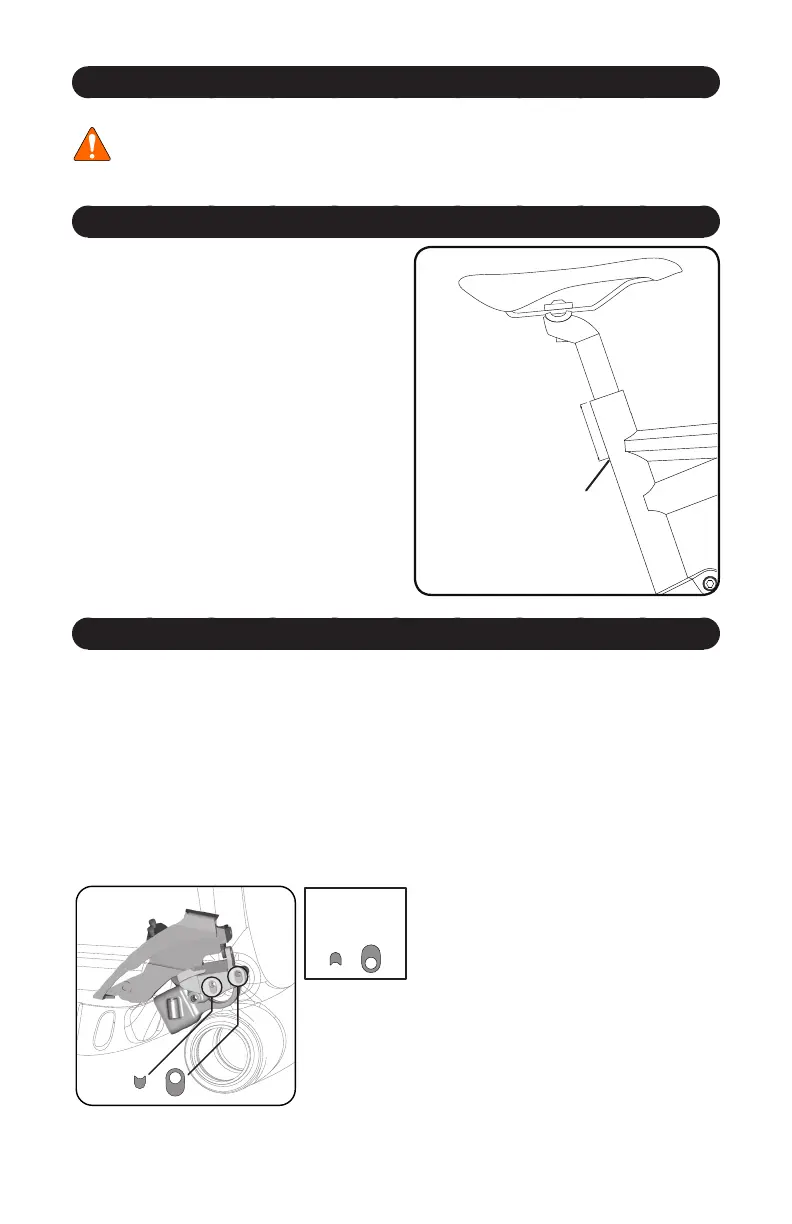

SEATPOST SETUP INFORMATION
SEATPOST MINIMUM INSERTION: To
prevent damage to the frame, it’s important
to have a minimum amount of seatpost in the
seat tube.
Aluminum frames:
If you cannot see the seatpost tube
through the seat tube hole, your seatpost is
too far extended. If a greater saddle height is
required, replace the seatpost with a longer
one.
FRONT DERAILLEUR POSITION
10-Speed front derailleurs
SRAM S3 DMD front derailleurs: No adapters necessary. Choose the derailleur
based on the desired chainring size.
Shimano DMD front derailleurs: Choose the derailleur based on the desired chainring
size.
XTR FD-M985-E2: 38/40t chainrings
XTR FD-M985-E: 40/42/44t chainrings (40t position will not work on models with
2nd generation DMD mount. For these bikes, use FD-M985-E2)
9-Speed front derailleurs
Derailleur
position:
HIGH
The front derailleur position is a starting
point. Different front derailleurs may
require a different mounting position.
Adjust the position according to the front
derailleur model to achieve proper
positioning over the chainring.
Minimum seatpost
insertion guide hole
