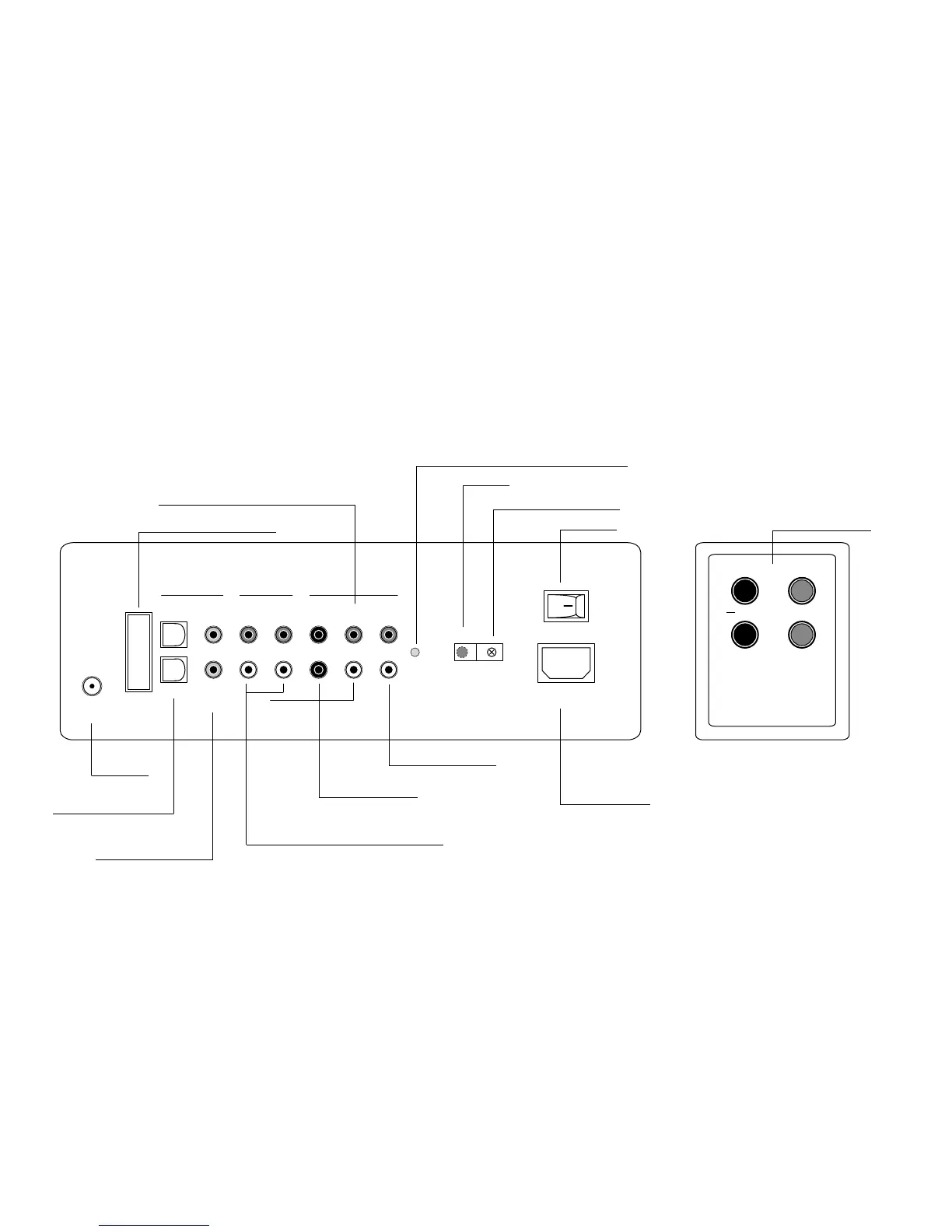

Rückansicht des VRA1 - Systems
Ports for passive
loudspeaker module
Fixing clip for IR transmitters
Power switch
Operation indicator (red = standby, green = on)
IR receiver
Pre Out 2.1 / 5.1 Mode preamplier output
Port only for software updates
FM aerial
connection
Digital inputs (coaxial) for
SAT / BluRay / TV / ...
Analog inputs for VCR / record player ...
Digital inputs (optical) for
SAT / BluRay / TV / ...
Power cable socket
Subwoofer - output
Zone 2 / Line - output
