Connecting the loudspeakers
Sound system CTA1 / BRA1:
The speaker system is internal connected. Only the source devices like DVD must be
connected with the system.
CTA2 / VRA1 Sound System:

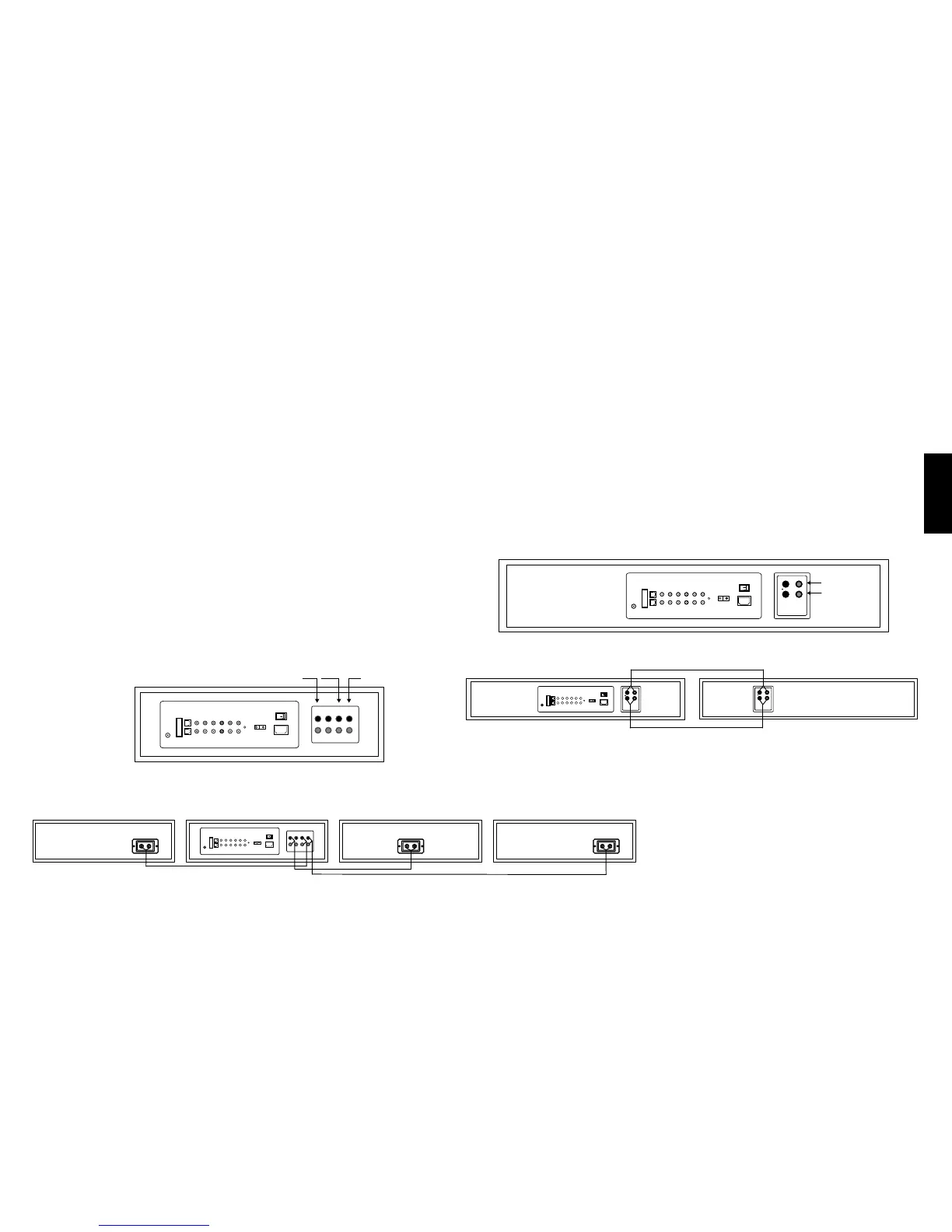

Please refer to the connection diagram below. Use only the speaker cables included
in the delivery to connect the speakers to the screw terminals „Front Left“, „Front Right“
and „Sub“ (CTA2) or „HF“ and „LF“ (VRA1) on the back of the amplier module (strip
cable ends by about 1 cm). Please note the correct polarity, red for plus (+) and black
for minus (-). Simply use the marking on the supplied cable.
Make sure the stripped cable end does not come into contact with the rear panel.
(Risk of short circuit!)
Sound system CLA1:
The CLA1 system is already inserted in the furniture. Only the source devices like DVD,
etc. must be connected with the system.
SAT
LEFT
SUBAMPSAT
RIGHT
SPEAKERS
FL+ FR+ C+ S+
FL- FR- C- S-
SUB
SAT
RIGHT
SAT
LEFT
SPEAKERS
FL+ FR+ C+ S+
FL- FR- C- S-
Right / Active
Left / Passive
HF
LF
+
HF
LF
+
HF
LF
+
HF
LF
CTA2
VRA1
