2-8 Chapter 2: Installation and Wiring
User’s Manual Pub. 0300309-01 Rev. A

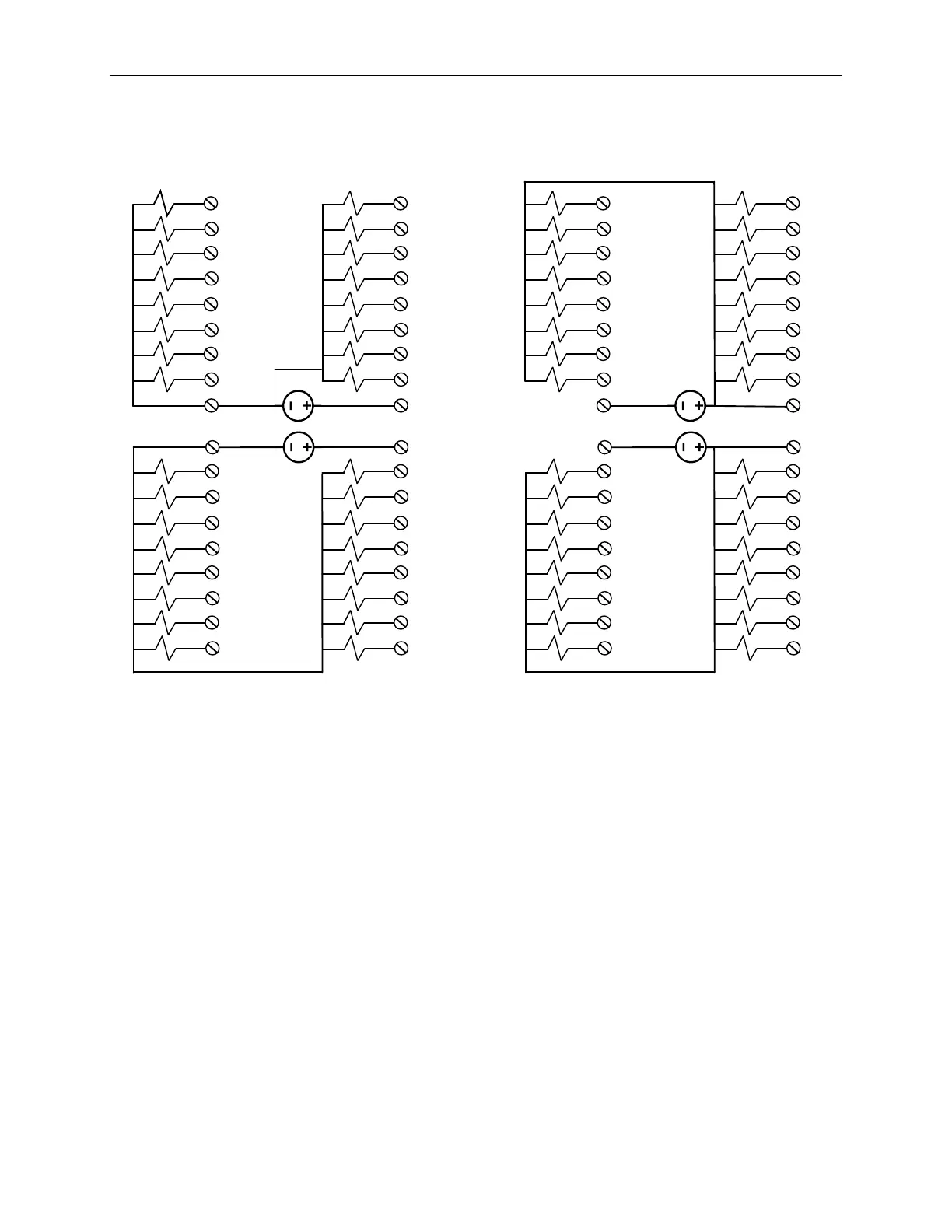

Example wiring diagrams showing the channel loads are shown below.
P1: OUT-0
P2: OUT-1
P3: OUT-2
P4: OUT-3
P5: OUT-4
P6: OUT-5
P7: OUT-6
P8: OUT-7
P9: GND 0
P10: GND 1
P11: OUT-16
P12: OUT-17
P13: OUT-18
P14: OUT-19
P15: OUT-20
P16: OUT-21
P17: OUT-22
P18: OUT-23
Group 0
Group 1
P19: OUT-8
P20: OUT-9
P21: OUT-10
P22: OUT-11
P23: OUT-12
P24: OUT-13
P25: OUT-14
P26: OUT-15
P27: PWR 0
P28: PWR 1
P29: OUT-24
P30: OUT-25
P31: OUT-26
P32: OUT-27
P33: OUT-28
P34: OUT-29
P35: OUT-30
P36: OUT-31
12/24V DC
SUPPLY
12/24V DC
SUPPLY
2085-OB32-SC (Sourcing)
Group 0
Group 1
12/24V DC
SUPPLY
12/24V DC
SUPPLY
P1: OUT-0
P2: OUT-1
P3: OUT-2
P4: OUT-3
P5: OUT-4
P6: OUT-5
P7: OUT-6
P8: OUT-7
P9: GND 0
P10: GND 1
P11: OUT-16
P12: OUT-17
P13: OUT-18
P14: OUT-19
P15: OUT-20
P16: OUT-21
P17: OUT-22
P18: OUT-23
P19: OUT-8
P20: OUT-9
P21: OUT-10
P22: OUT-11
P23: OUT-12
P24: OUT-13
P25: OUT-14
P26: OUT-15
P27: PWR 0
P28: PWR 1
P29: OUT-24
P30: OUT-25
P31: OUT-26
P32: OUT-27
P33: OUT-28
P34: OUT-29
P35: OUT-30
P36: OUT-31
2085-OV32-SC (Sinking)
Terminal Block 1 Terminal Block 2 Terminal Block 1 Terminal Block 2
