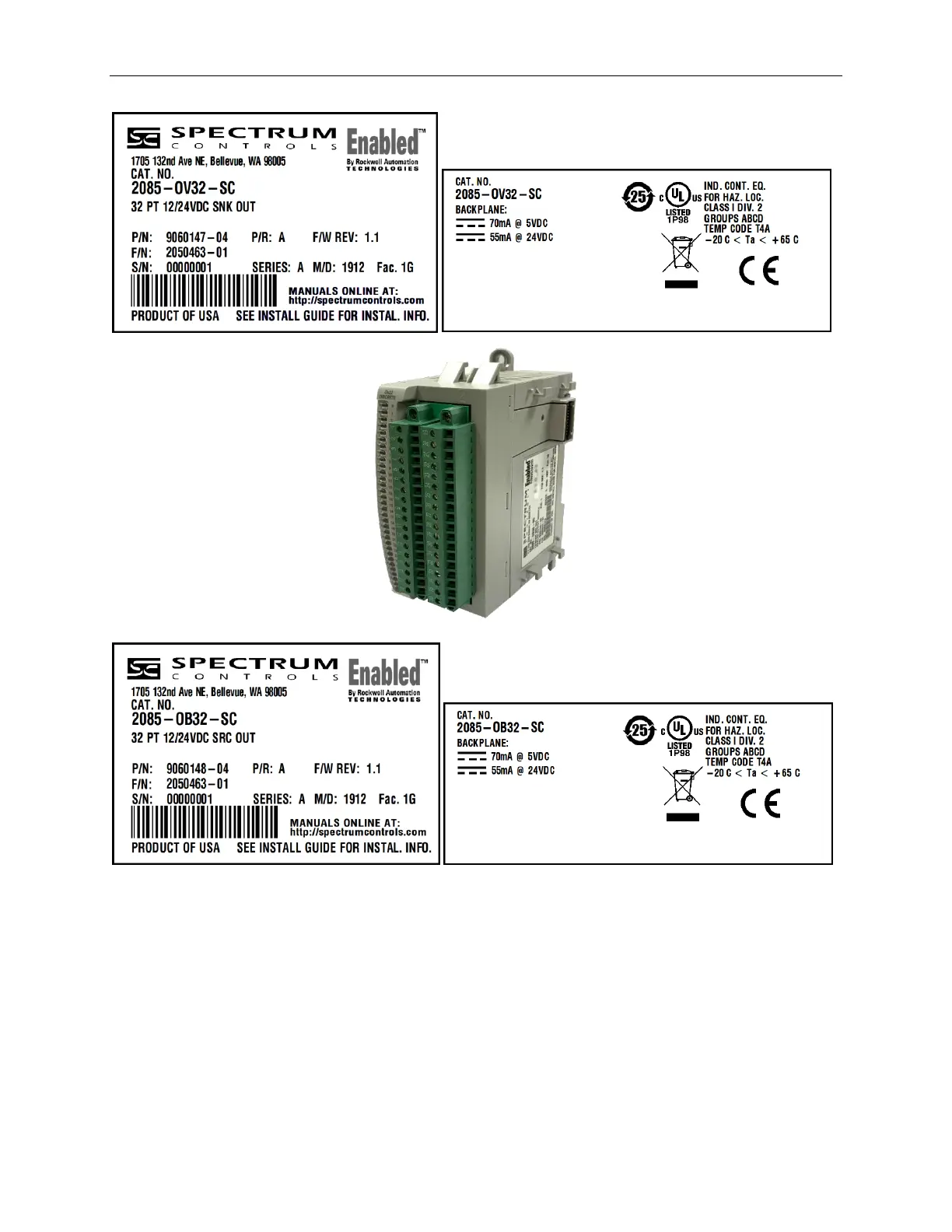

1-2 Chapter 1: Module Overview
User’s Manual Pub. 0300309-01 Rev. A
The discrete module supports:
• 32 Discrete Sink Output Channels (applies to 2085-OV32-SC)
• 32 Discrete Source Output Channels (applies to 2085-OB32-SC).
Both discrete modules control discrete outputs based on commanded outputs
from a controller. The controller monitors to see if any of the 32 output channels
is to be activated:
• If a channel is determined to be commanded to be ON, the 2085-OB32-
SC module provides for an electronic switch to close between the
channel output control pin and the +24 VDC POWER pin on the terminal
block.
