SPEKTRUM DX5C • TRANSMITTER INSTRUCTION MANUAL
EN
INSTALLING BATTERIES
CAUTION: NEVER remove the transmitter batter-
ies while the model is powered on. Loss of model
control, damage or injury may occur.
1. Remove the battery cover from the bottom of the
transmitter.
2. Install 4 AA batteries as shown.
3. Install the battery cover.

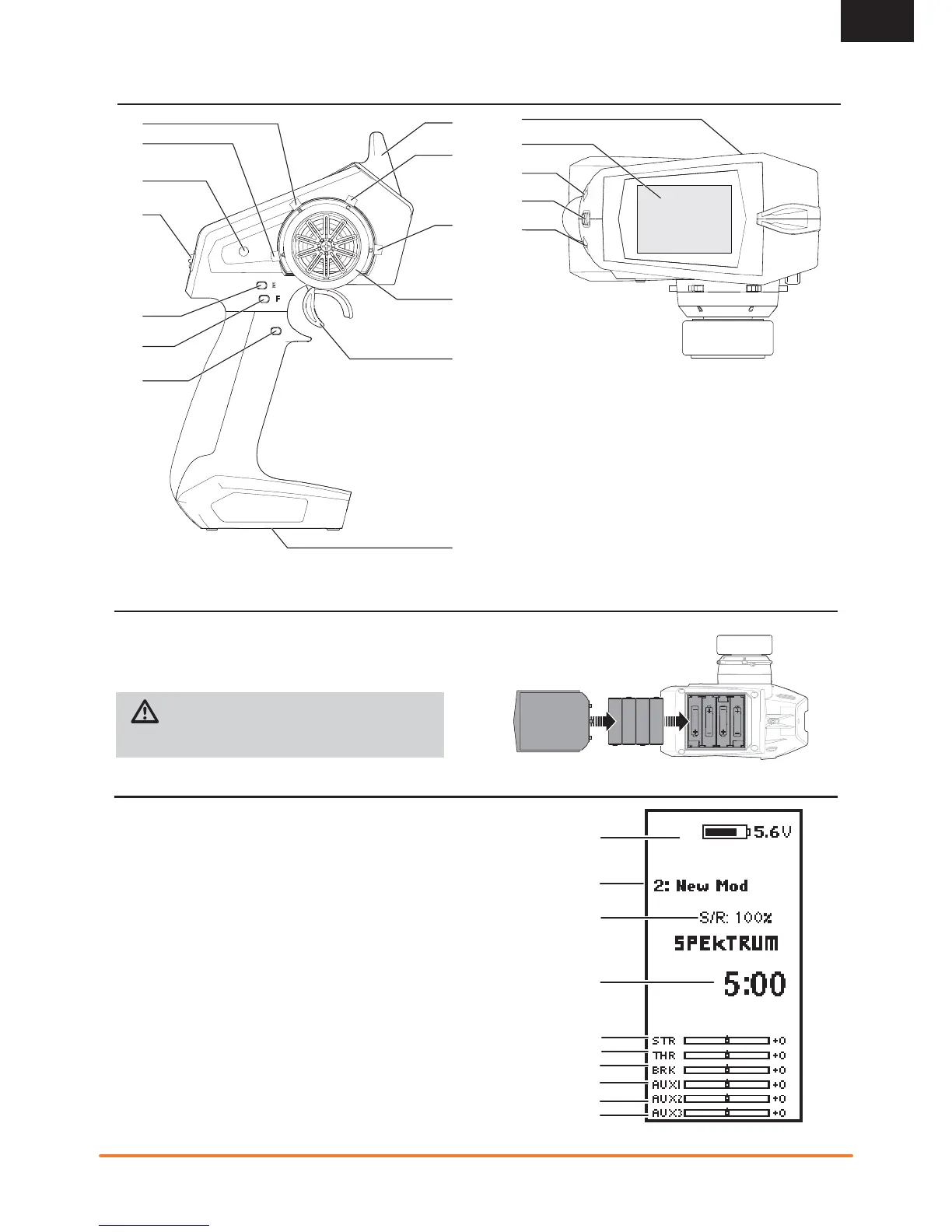

IDENTIFYING CONTROLS AND SWITCHES
A
B
D
E
F
G
H
J
I
C
K
L
O
N
M
P
Q
I
A: Trimmer Button A
Default- Throttle Trim
B: Trimmer Button B
Default- Steering Trim
C: Trimmer Button C
D: Trimmer Button D
E: Trimmer Button E
Default- Steering Rate Up
F: Trimmer Button F
Default- Brake Rate Up
G: Button G
Default- Timer Start/Stop
H: Power Button
I: Roller Wheel
J: Antenna
K: Steering Wheel
L: Trigger (throttle/brake)
M: Battery Door
N: Data Port
O: LCD Screen
P: Back Button
Q: Clear Button
The Main Screen displays information about the active model,
including the Timer (when activated). To return to the Main
Screen at any time, press and hold the scroll wheel for at least
6 seconds.
A: Transmitter Battery Voltage
B: Model Name
C: Steering Rate
D: Timer (when activated)
E: Position of Steering (STR) trim
F: Position of Throttle (THR) trim
G: Position of Brake (BRK) trim
H: Position of AUX 1 trim
I: Position of AUX 2 trim
J: Position of AUX 3 trim
MAIN SCREEN
A
B
C
D
F
E
G
H
I
J
