SPEKTRUM DX6 • TRANSMITTER INSTRUCTION MANUAL
EN



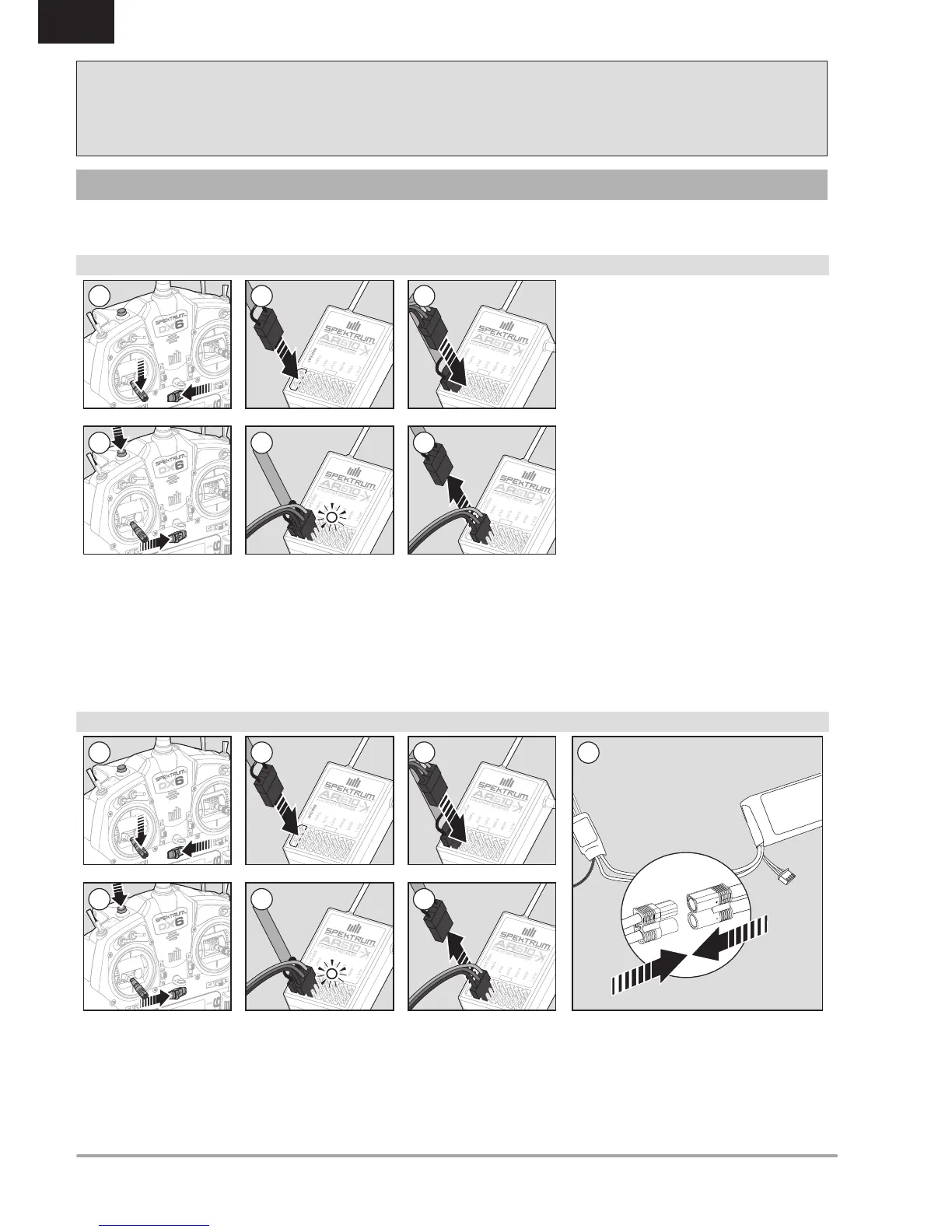

BINDING
Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter.
You must bind the AR610 receiver to your transmitter before it will operate.
Binding Using the Receiver and Receiver Battery
Binding Using the Receiver and ESC
C
D
F
C
D
F
CLEAR
BACK
3 MODEL TYPES Wi reless Trainer VOICE ALERTS
6-CHANNEL DSMX® TE LEMETRY SYSTEM
CLEAR
BACK
3 MODEL TYPES Wi reless Trainer VOICE ALERTS
6-CHANNEL DSMX® TE LEMETRY SYSTEM
C
D
F
C
D
F
CLEAR
BACK
3 MODEL TYPES Wi reless Trainer VOICE ALERTS
6-CHANNEL DSMX® TE LEMETRY SYSTEM
CLEAR
BACK
3 MODEL TYPES Wi reless Trainer VOICE ALERTS
6-CHANNEL DSMX® TE LEMETRY SYSTEM
C
D
F
C
D
F
CLEAR
BACK
3 MODEL TYPES Wi reless Trainer VOICE ALERTS
6-CHANNEL DSMX® TE LEMETRY SYSTEM
CLEAR
BACK
3 MODEL TYPES Wi reless Trainer VOICE ALERTS
6-CHANNEL DSMX® TE LEMETRY SYSTEM
C
D
F
C
D
F
CLEAR
BACK
3 MODEL TYPES Wi reless Trainer VOICE ALERTS
6-CHANNEL DSMX® TE LEMETRY SYSTEM
CLEAR
BACK
3 MODEL TYPES Wi reless Trainer VOICE ALERTS
6-CHANNEL DSMX® TE LEMETRY SYSTEM
1. Lower throttle to the lowest position and make sure the
transmitter is powered off.
2. Insert the bind plug into the BIND/DATA port.
3. Insert the receiver battery into ANY open port. The receiver’s
LED will flash when the receiver is ready to bind.
4. While pressing the Bind button, power on the
transmitter.
5. Release the Bind button after the receiver has stopped
flashing rapidly, once the receiver’s LED stays illuminated; this
indicates the receiver is bound to the transmitter. The screen
also provides binding information.
6. Remove the bind plug from the receiver.
1. Lower the throttle to the lowest position and make sure the
transmitter is powered off.
2. Insert the bind plug into the BIND/DATA port.
3.InserttheESCplugintotheTHROport.
4. Connect the battery to ESC and turn on the ESC switch,
if available. The receiver’s LED will flash rapidly when the
receiver is ready to bind.
5. While pressing the Bind button, power on the
transmitter.
6. Release the Bind button after the receiver’s LED stays illumi-
nated. This indicates the receiver is bound to the transmitter.
The transmitter screen also provides binding information.
7. Remove the bind plug from the receiver.
1
1
4
5
2
2
5
6
3
3 4
6
7
Please note that this transmitter no longer supports DSM2 modulation and can only be used with receivers and hardware
that support DSMX. Please disregard any content in the included manual that references changing the modulation to DSM2.
Additionally, this transmitter no longer supports 11ms Frame Rates. Please disregard the instructions in the included manual
for changing the Frame Rate. 22ms is the only available Frame Rate.

Spectrum DX6 Specifications

General

Channels	6
Modulation	DSMX/DSM2
Model Memory	250
RF Power	100mW
Display	LCD
Battery	4 AA batteries
