Speed Queen TMB796C - Location Requirements

Specifications and Dimensions
15
M414905
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

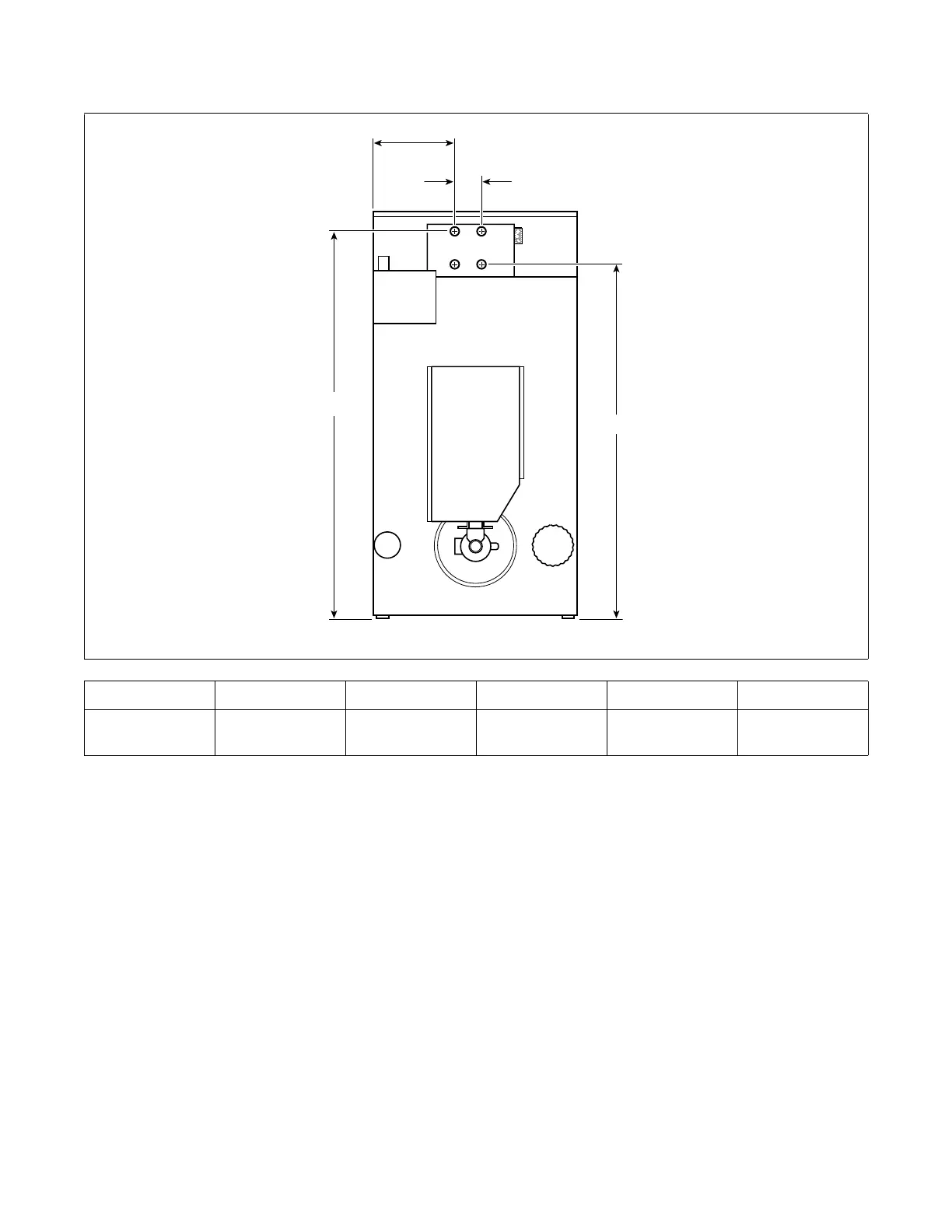

Steam Connection Locations
TMB814N
TMB814N
C
A
B
D
ModelsDiameterABCD
50/75 Pound
3/4 in. NPT 15.25 in.
(387 mm)
72.75 in.
(1848 mm)
7.5 in.
(190 mm)
64.75 in.
(1645 mm)
