Exhaust Requirements
33
M414905
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

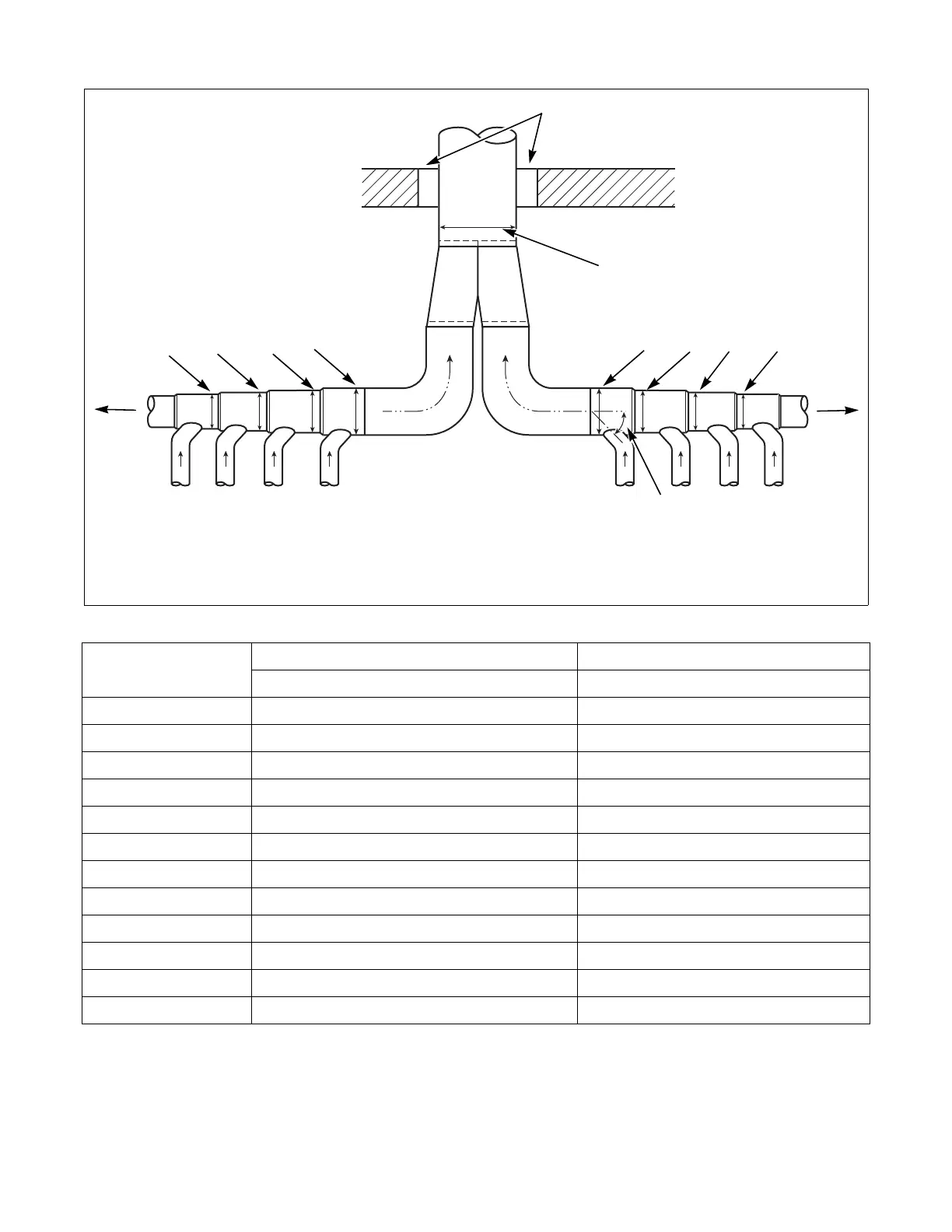

Figure 17
TMB2018N
1 NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening
MUST be sized per local codes.
2 Outlet duct diameter
3 45° typical
1
2
3
LKJ I
L
K
J
I
CONTINUE
TO A
CONTINUE
TO A
TWO MANIFOLD ASSEMBLIES
Duct
Station
50/75 Pound F75
8 in. (203 mm) Duct 10 in. (254 mm) Duct
A
13 in. (330 mm) 15 in. (381 mm)
B
17 in. (432 mm) 22 in. (559 mm)
C
18 in. (457 mm) 26 in. (660 mm)
D
24 in. (610 mm) 30 in. (762 mm)
E
27 in. (686 mm) 34 in. (864 mm)
F
30 in. (762 mm) 37 in. (940 mm)
G
33 in. (838 mm) 40 in. (1016 mm)
H
34 in. (864 mm) 43 in. (1092 mm)
I
37 in. (940 mm) 46 in. (1168 mm)
J
39 in. (991 mm) 47 in. (1194 mm)
K
40 in. (1016 mm) 50 in. (1270 mm)
L
42 in. (1067 mm) 51 in. (1295 mm)
Tabl e 4
To Next Page
