Speed Queen TMB796C - Removing Tumbler from Service

Adjustments
M414905
58
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

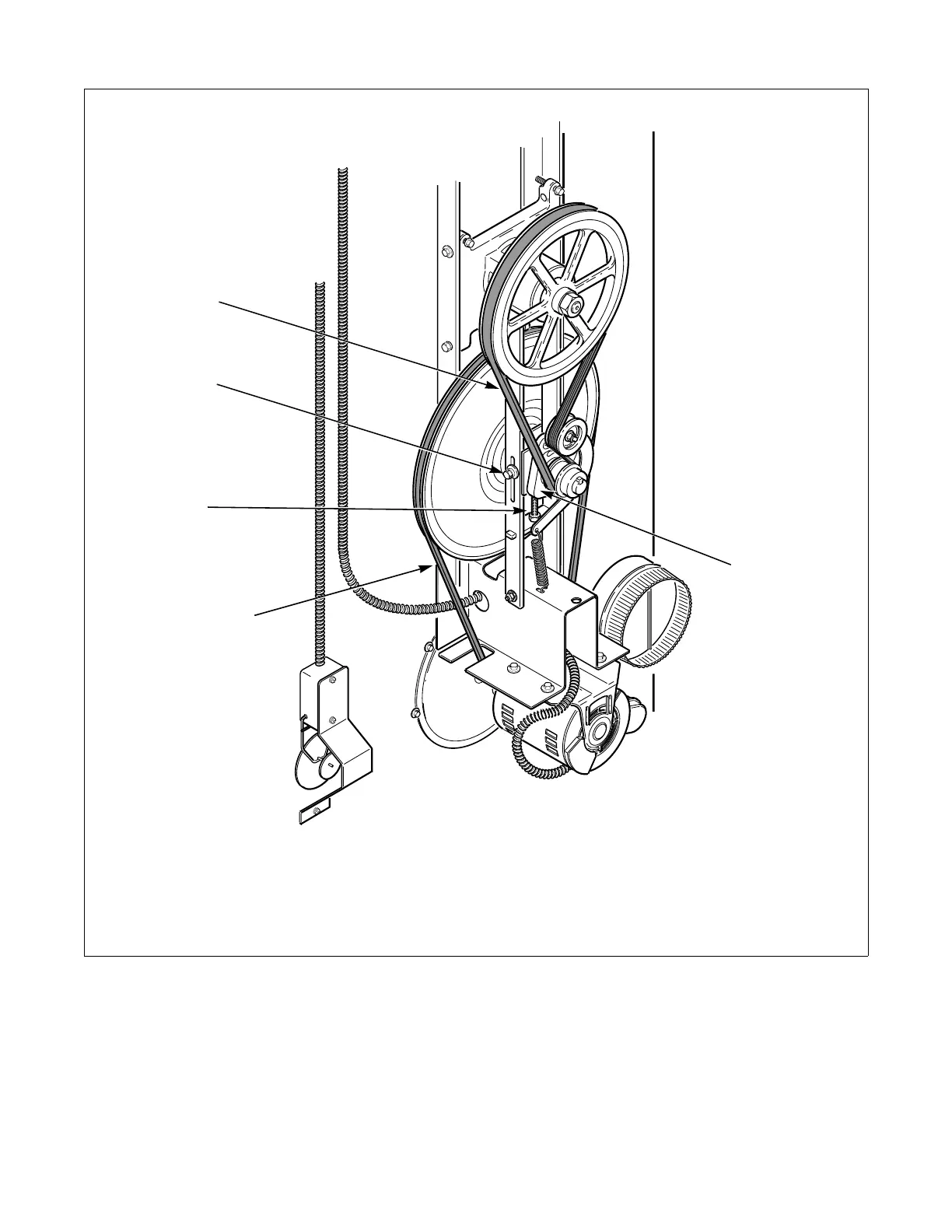

Figure 28
TMB816N
1 Poly V-Belt (Self-Adjusting) 4 Drive V-Belt
2 Idler Housing Bolts (2) 5 Idler Housing Assembly
3 Adjusting Bolt
TMB816N
NONREVERSING MODELS
5
1
2
3
4
