19SPEKTRUM DX3S USER GUIDE

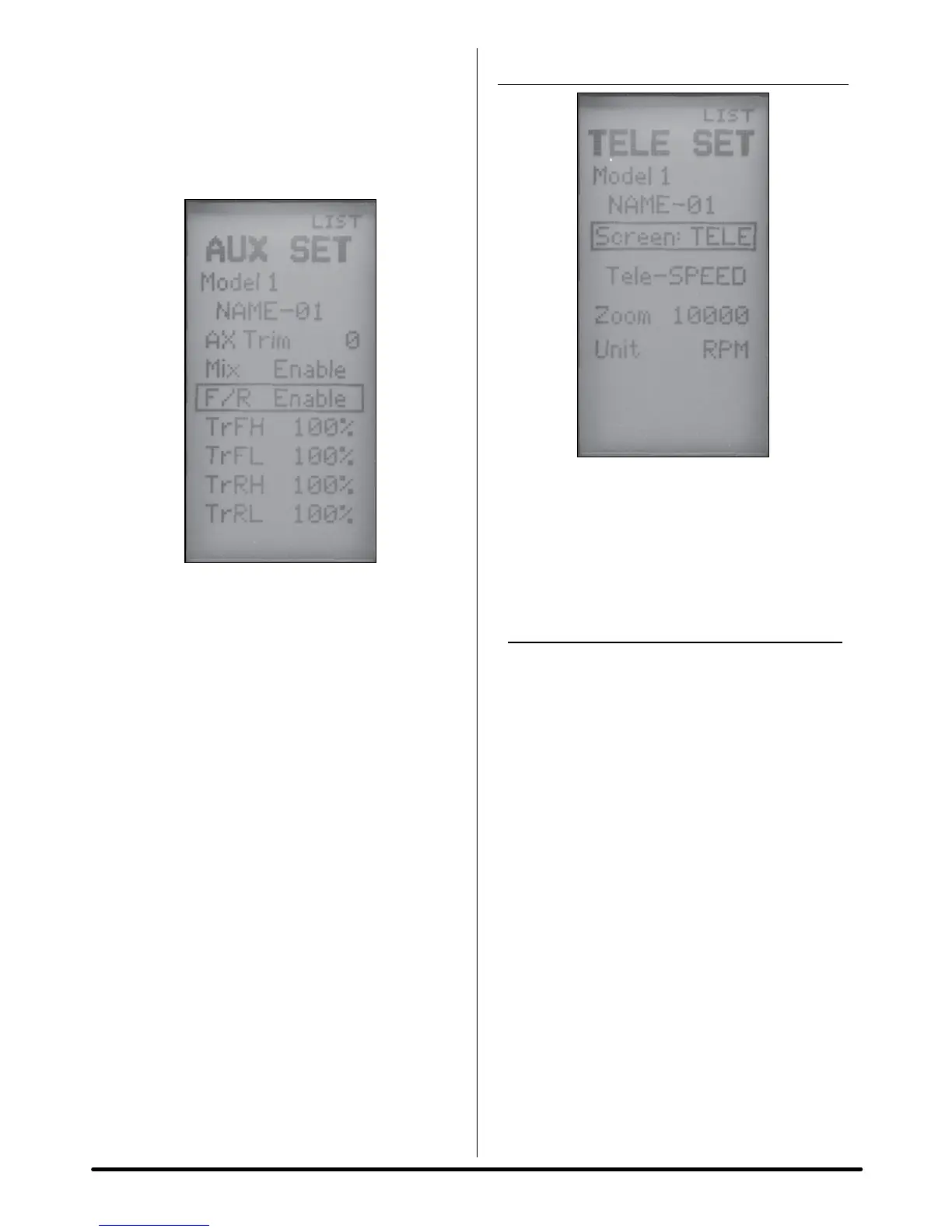

Use the Rolling Selector to select the F/R function.
Pressing the Rolling Selector will cause the surrounding
box to flash. Move the Rolling Selector to enable the F/R
function then press the Rolling Selector to select it. The
below screen will be displayed.
F/R Enabled= (Forward/Reverse) 2-position switch
enabled
TrFH = Travel Forward High side
TrFL = Travel Forward Low side
TrRH= Travel Reverse High side
TrRL= Travel Reverse Low side
Rotate the Rolling Selector and select the Travel Forward
High/Low percentages or the Travel Reverse High/
Low percentages. Press the Rolling Selector and the
surrounding box will cause the box to flash. Rotating
theRollingSelectorwillnowadjustboththeTravelHigh
and Travel Low values simultaneously. If you desire to
adjustthehighorlowtravelvaluesindependently,move
the wheel and that value alone will be highlighted (e.g.
turning the steering wheel to the right will highlight the
lowvalueonlyandsubsequentadjustmentwillaffectthe
right travel only). To highlight both values again after
moving the wheel in one direction, simply press the
Rolling Selector twice with the wheel centered and both
values will be highlighted.
To return to the main screen press and hold the Rolling
Selector for more than three seconds.
TELEMETRY SETTINGS
The Telemetry setting function is used to select a default
screen for display including Main, Telemetry or Roll. It is
also used to access the Telemetry SPEED, BATTERY and
TEMPERATURE sensor settings.
TO ACCESS THE TELEMETRY
SETTING FUNCTION
In the LIST screen use the Rolling Selector to highlight
Tele Setting then press the Rolling Selector.
The TELE SET screen will appear.
To select the default screen, rotate the Rolling Selector to
place the box around Screen: TELE then press the Rolling
Selector. The surrounding box will flash.
• TELEdisplaystheTelemetryscreen.
• MAINalwayshidestheTelemetryscreen.
• ROLLallowstherollertoselectbetweenthe
Telemetry and Main screens.
Rotate the Rolling Selector and choose your desired
default screen. (TELE displays the Telemetry screen.
ROLLwillallowtheRollingSelectortoselectbetweenthe
Telemetry and Main Screens.) Press the Rolling Selector
to select.
