270M
Rapid
Scanning Imaging Spectrograph

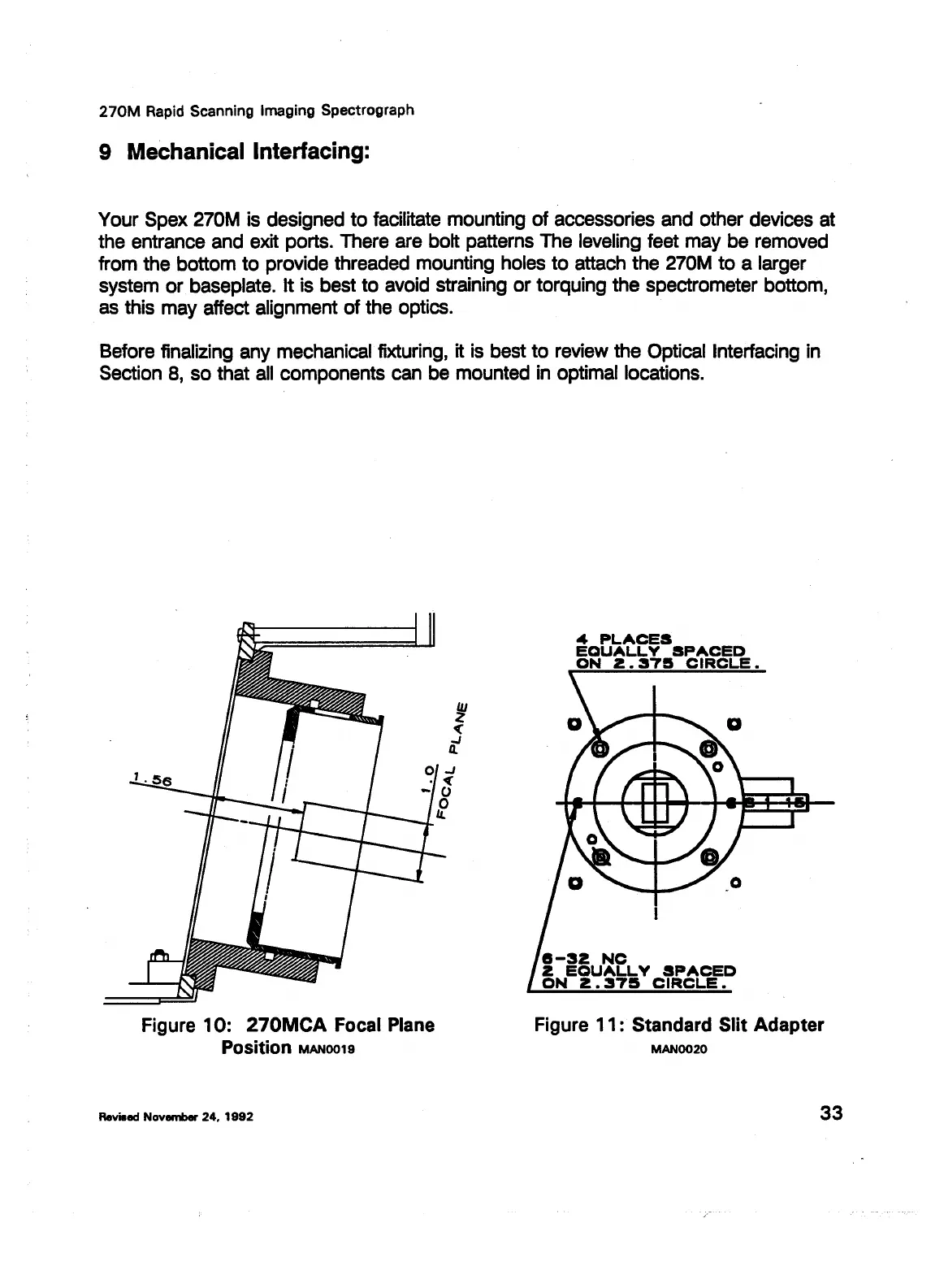

9 Mechanical Interfacing:
Your Spex 270M is designed to facilitate mounting of accessories and other devices at
the entrance and exit ports. There are bolt patterns The leveling feet may be removed
from the bottom
to
provide threaded mounting holes
to
attach the 270M
to
a larger
system
or
baseplate. It is best to avoid straining or torquing the spectrometer bottom,
as this may affect alignment
of
the optics.
Before finalizing any mechanical fixturing, it is best
to
review the Optical Interfacing in
Section
8,
so that
all
components can be mounted in optimal locations.
Figure 10:
270MCA
Focal Plane
Position MAN0019
Revised
November 24.
1992
1
'('
.J
a.
4
PLACES
EQUALLY
SPACED
ON
2.
379
CIRCLE.
e-32
NC
2 EQUALLY SPACED
ON
2 .
379
CIRCLE.
Figure
11
: Standard Slit Adapter
MAN0020
33
Leica Microsystems, Inc.'s Ex. 1033
