270M
Rapid Scanning Imaging Spectrograph
226MCD
SHUTTER
SPECTRUM
ONE
CCD DETECTOR
270M
IMAGING
SPECTROGRAPH
220F

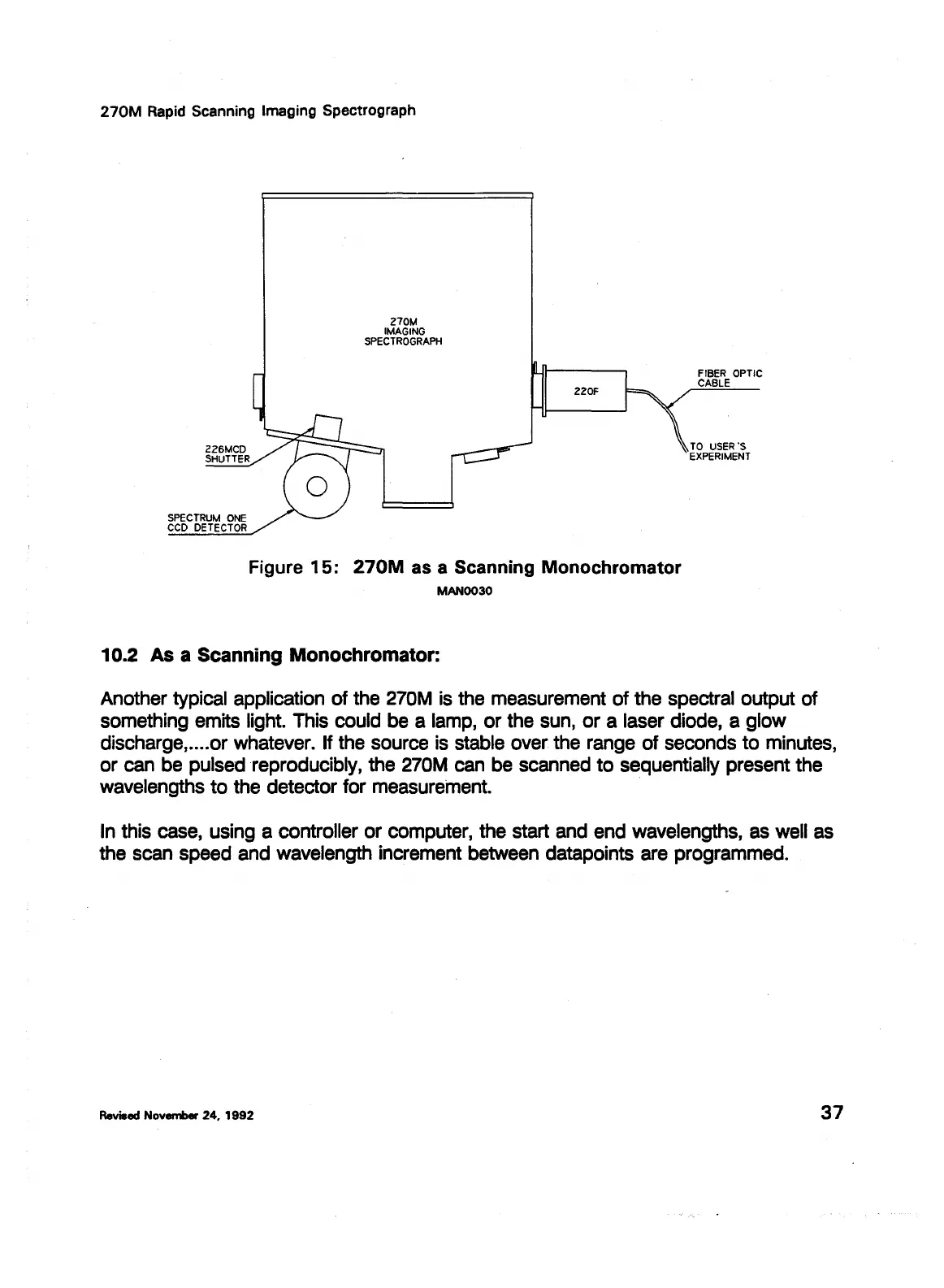

Figure
15:
270M
as
a Scanning Monochromator
MAN0030
10.2
As
a
Scanning
Monochromator:
FIBER OPTIC
CABLE
TO
USER"S
EXPERIMENT
Another typical application of the 270M is the measurement
of
the spectral output of
something emits light. This could be a lamp,
or
the sun,
or
a laser diode, a glow
discharge, ....
or
whatever. If the source is stable over the range of seconds
to
minutes,
or
can be pulsed reproducibly, the 270M can be scanned
to
sequentially present the
wavelengths
to
the detector for measurement.
In this case, using a controller or computer, the start and end wavelengths, as well as
the scan speed and wavelength increment between datapoints are programmed.
Revised
November 24,
1992
37
