ENGLISH - 21

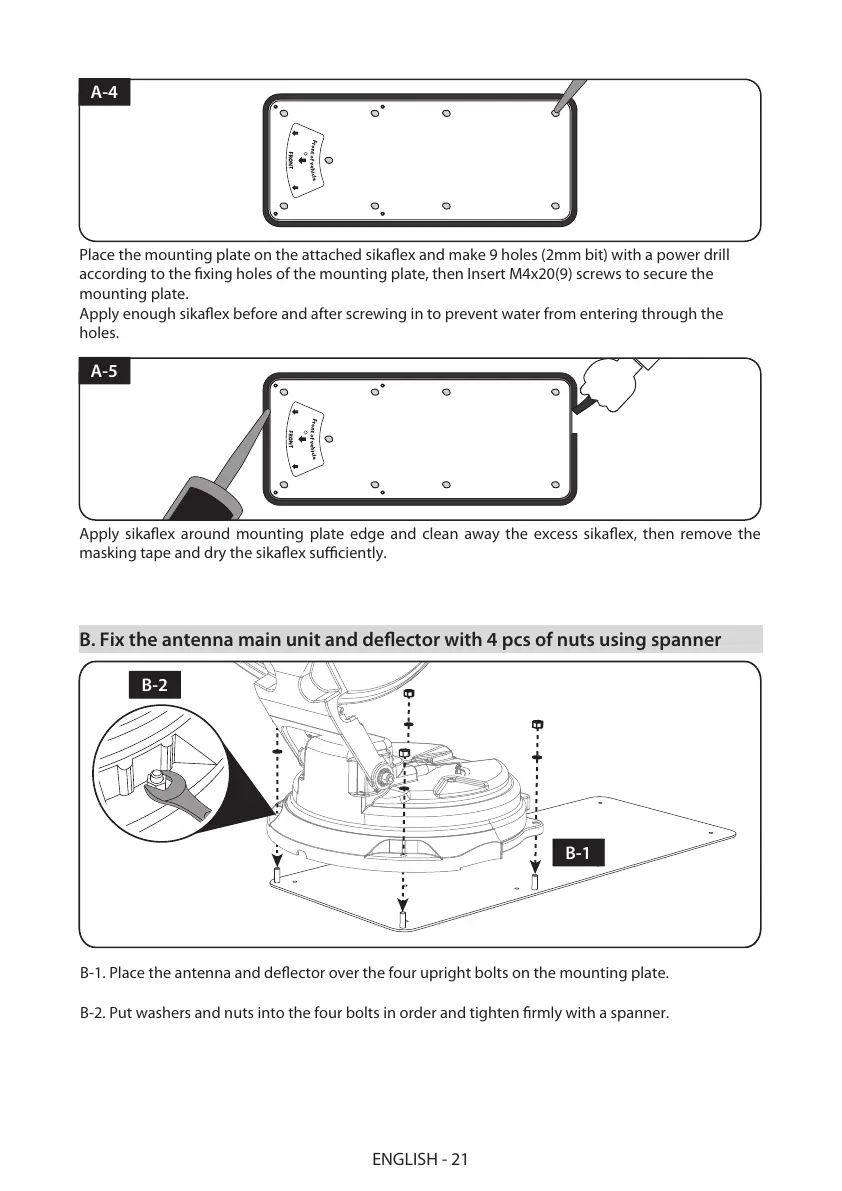

Place the mounting plate on the attached sikaflex and make 9 holes (2mm bit) with a power drill
according to the fixing holes of the mounting plate, then Insert M4x20(9) screws to secure the
mounting plate.
Apply enough sikaflex before and after screwing in to prevent water from entering through the
holes.
B. Fix the antenna main unit and deflector with 4 pcs of nuts using spanner
A-4
Apply sikaflex around mounting plate edge and clean away the excess sikaflex, then remove the
masking tape and dry the sikaflex sufficiently.
A-5
B-1. Place the antenna and deflector over the four upright bolts on the mounting plate.
B-2. Put washers and nuts into the four bolts in order and tighten firmly with a spanner.
B-1
B-2
