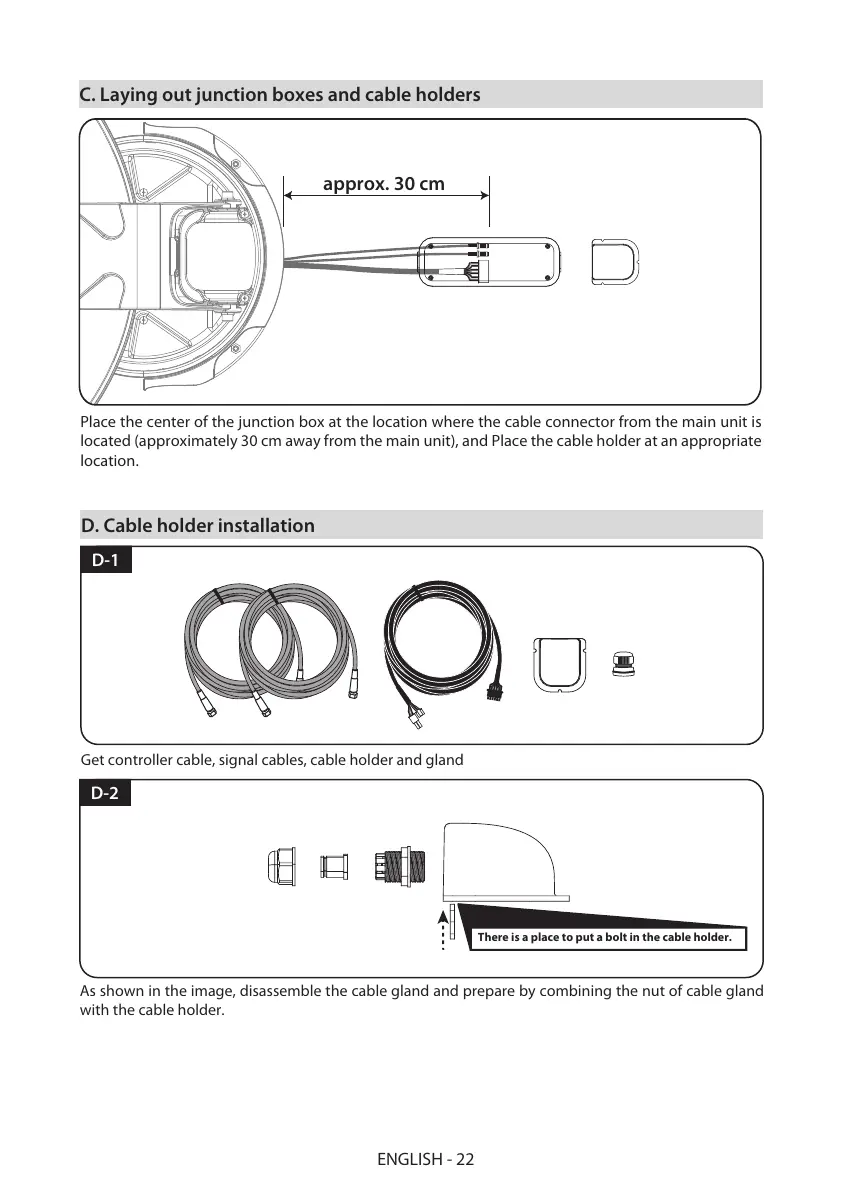

C. Laying out junction boxes and cable holders
approx. 30 cm
D. Cable holder installation
D-2
Get controller cable, signal cables, cable holder and gland
D-1
As shown in the image, disassemble the cable gland and prepare by combining the nut of cable gland
with the cable holder.
Place the center of the junction box at the location where the cable connector from the main unit is
located (approximately 30 cm away from the main unit), and Place the cable holder at an appropriate
location.
There is a place to put a bolt in the cable holder.
