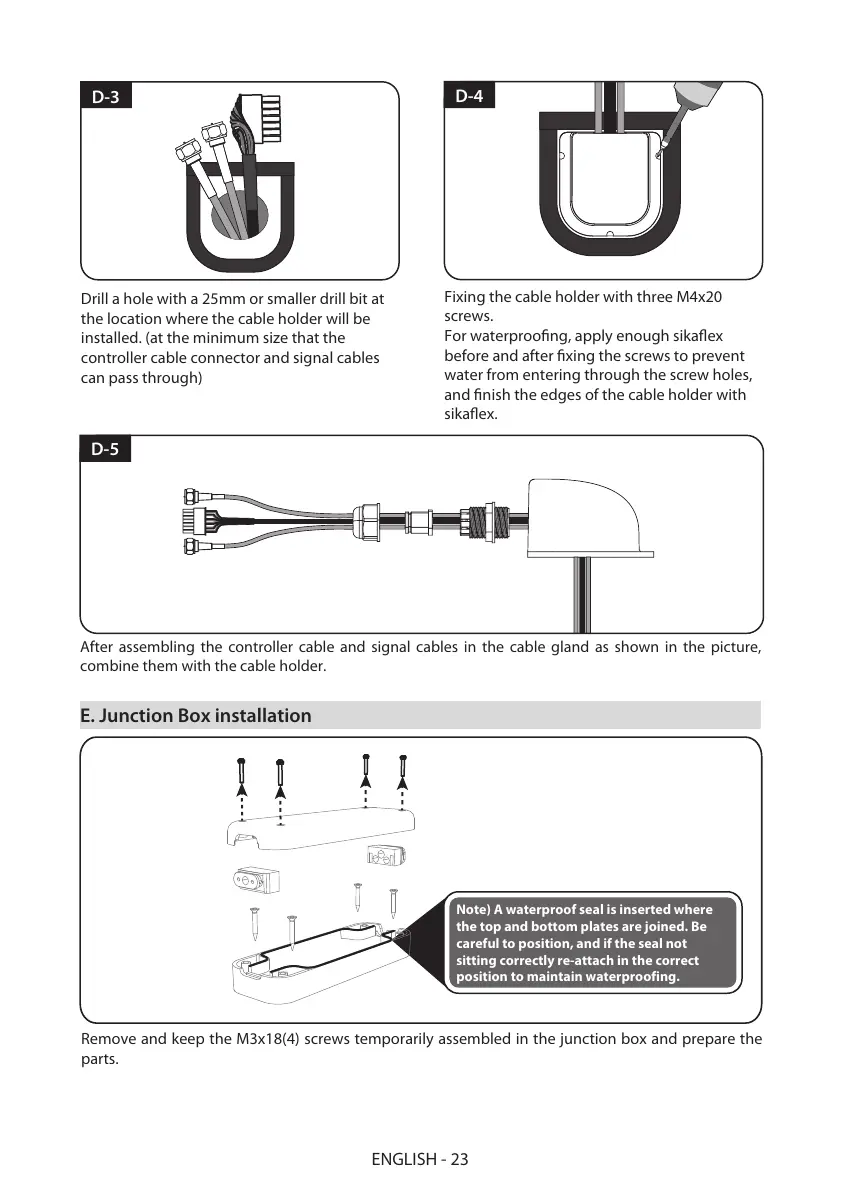

ENGLISH - 23
Fixing the cable holder with three M4x20
screws.
For waterproofing, apply enough sikaflex
before and after fixing the screws to prevent
water from entering through the screw holes,
and finish the edges of the cable holder with
sikaflex.
D-4
D-5
After assembling the controller cable and signal cables in the cable gland as shown in the picture,
combine them with the cable holder.
E. Junction Box installation
Remove and keep the M3x18(4) screws temporarily assembled in the junction box and prepare the
parts.
Note) A waterproof seal is inserted where
the top and bottom plates are joined. Be
careful to position, and if the seal not
sitting correctly re-attach in the correct
position to maintain waterproofing.
Drill a hole with a 25mm or smaller drill bit at
the location where the cable holder will be
installed. (at the minimum size that the
controller cable connector and signal cables
can pass through)
D-3
